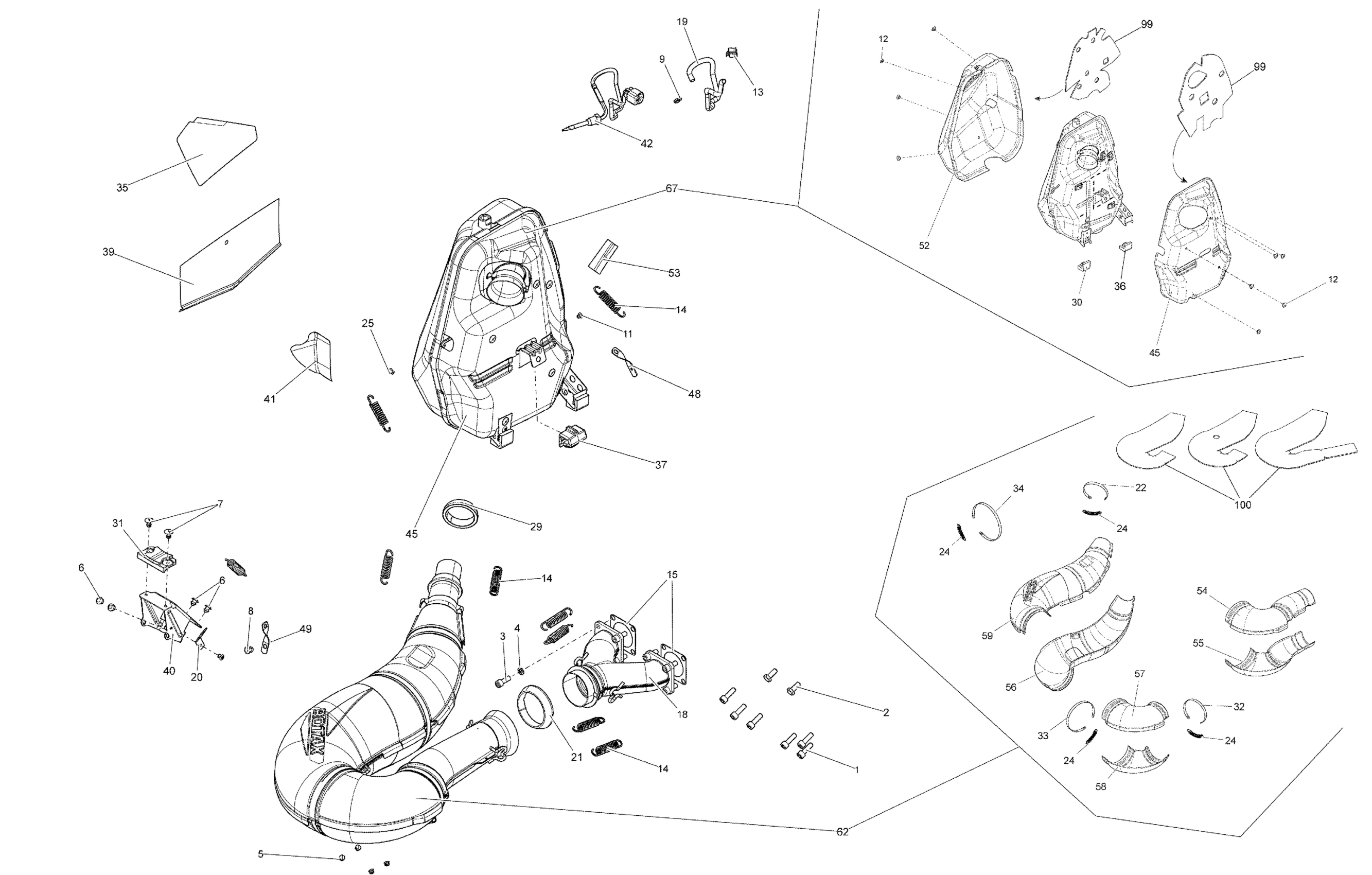

Ski-Doo FREERIDE, 2016 01- Exhaust System Diagram

#

Description
Price

1

Socket Head Screw M8 X 25

205082544

$1.15

2

Hex. Screw M8 X 20

207182044

$0.74

3

Socket Head Screw M8 X 22

250000414

$2.11

4

Washer

250200111

$2.11

5

Henrob Rivet

293150091

$0.77

6

Hemlock Rivet, 6.5 mm

293150096

$3.27

7

Pop Rivet 3/16"

293150103

$0.55

8

Ornit Rivet 6,5 X 14.5

293150266

$2.40

9

Tie Wrap 94 mm | 4X4

293750001

$1.03

11

Avex Rivet

390909200

$0.30

12

Pop Rivet 3/16”

390910000

$0.57

13

Clip

414227300

$1.67

14

Spring

415107100

$6.35

15

Gasket

420430482

$8.89

18

Exhaust Manifold This part replaces 420673373.

420673374

$299.99

19

Tubing 6 Mm 3000Mm Long

219704425

$13.75

20

Spring Bracket

514053393

$14.16

21

Exhaust Gasket

514053487

$26.49

22

Retaining Strap

514053499

$11.47

24

Spring

514053643

$6.35

25

Stavex Rivet

293150144

$0.82

29

Exhaust Gasket

514054174

$28.49

30

Lower Stopper

514054274

$20.49

31

Bumper

514054275

$16.34

32

Retaining Strap

514054408

$13.10

33

Retaining Strap

514054409

$13.10

34

Retaining Strap

514054410

$13.10

35

Reflective Sheet

514054488

$14.99

36

Lower Stopper

514054496

$26.49

37

Upper Stopper

514054606

$19.99

39

Reflective Sheet

514054745

$13.49

40

Exhaust Muffler Support

514054767

$20.49

41

Heat Shield

514054817

$5.69

42

Temperature Sensor

514054870

$149.99

45

LH Deflector

514054967

$58.99

48

Spring Bracket, 5mm hole

514054974

$8.45

49

Spring Bracket, 8.0mm hole

514054975

$8.45

52

RH DEFLECTOR - Call your local BRP dealership

514054986

$53.99

53

Heat Shield (Rectangle)

514054987

$7.59

54

FRONT UPPER HALF ENVELOPPE - Call your local BRP dealership

514054988

Unavailable

55

FRONT LOWER HALF ENVELOPPE - Call your local BRP dealership

514054989

Unavailable

56

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$56.99

57

Front Upper Half Enveloppe

514054992

$40.99

58

Front Lower Half Enveloppe

514054993

$40.99

59

REAR UPPER HALF ENVELOPPE - Call your local BRP dealership

514055067

Unavailable

62

Exhaust Tuned Pipe | Includes 200 to 200m

514055062

$667.49

67

Muffler Ass'y | Includes 400 to 400g

514055083

$858.49

99

RH Insulating Wool

514054711

$21.99

99

LH Insulating Wool

514054299

$20.99

100

Insulating Wool

514054487

$20.99

100

INSULATING WOOL - Call your local BRP dealership

514054553

Unavailable
