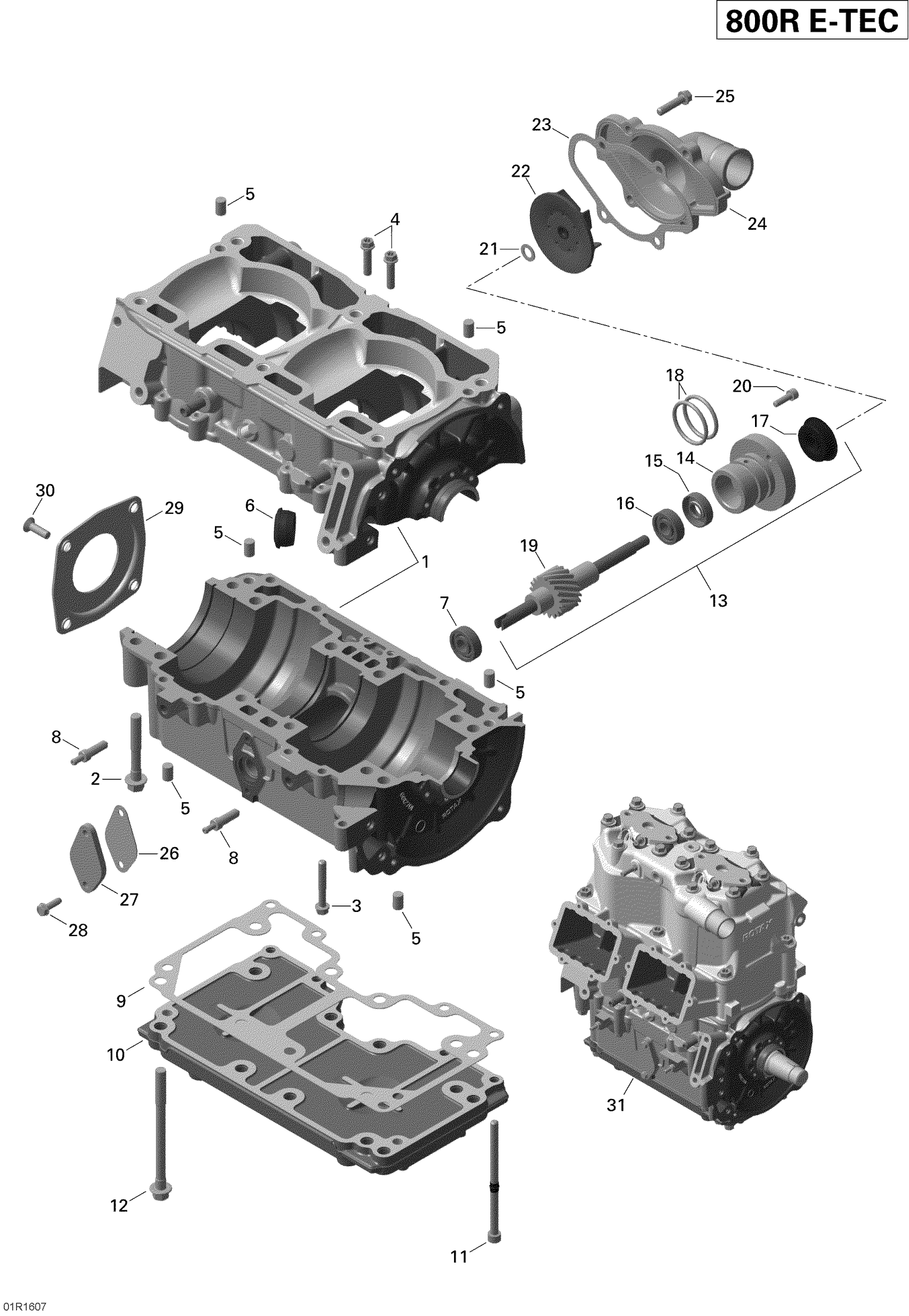

Ski-Doo FREERIDE, 2016 01- Crankcase and Water Pump - 800R E-TEC Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 7

420893084

$1.00

2

Hex. Screw M8 X 56.5

420941627

$8.57

3

Torx Flange Screw M6 X 40

420440282

$3.17

4

Torx Flange Screw M6 X 25

420440234

$3.06

5

Center Pin 8 X 12

420632010

$4.01

6

Cable Grommet

420660890

$14.22

7

Ball Bearing

420232100

$20.99

8

Check Valve

420956071

$24.99

9

Gasket Engine Support

420430070

$23.99

10

ENGINE SUPPORT - Call your local BRP dealership

420812683

Unavailable

11

Socket HD Screw M6 x 100 This part replaces 420241606.

420241607

$15.89

12

Screw M8x105

420941518

$10.60

13

WATER PUMP/OIL PUMP SHAFT ASS'Y | Includes 13 to 19 This part replaces 420837676.

420837677

$232.99

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Oil Seal

420230195

$15.36

16

Ball Bearing

420232100

$20.99

17

Rotary Seal

420650371

$43.49

18

O-Ring

420950890

$4.44

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Allen Screw M5 x 16

420840514

$1.90

21

Washer 8.4

420944033

$1.01

22

Water Impeller

420922805

$37.99

23

Joint Couv.Pom.*Gasket Cover Water Pump This part replaces 420430050.

420430051

$14.28

24

Water Pump Housing

420822280

$62.49

25

Torx Flange Screw M6 X 25

420440234

$3.06

26

Gasket This part replaces 420931566.

420931568

$10.33

27

Cover Plate

420810827

$14.83

28

Taptite Screw M5 X 16

420941928

Unavailable

29

Oil Seal Cover

420812422

$14.83

30

Screw M6 X 20

420941436

$3.17

31

Short Block 800R E-TEC

420079755

$2.00

31

Short Block 800R E-TEC

420079755

$2.00
