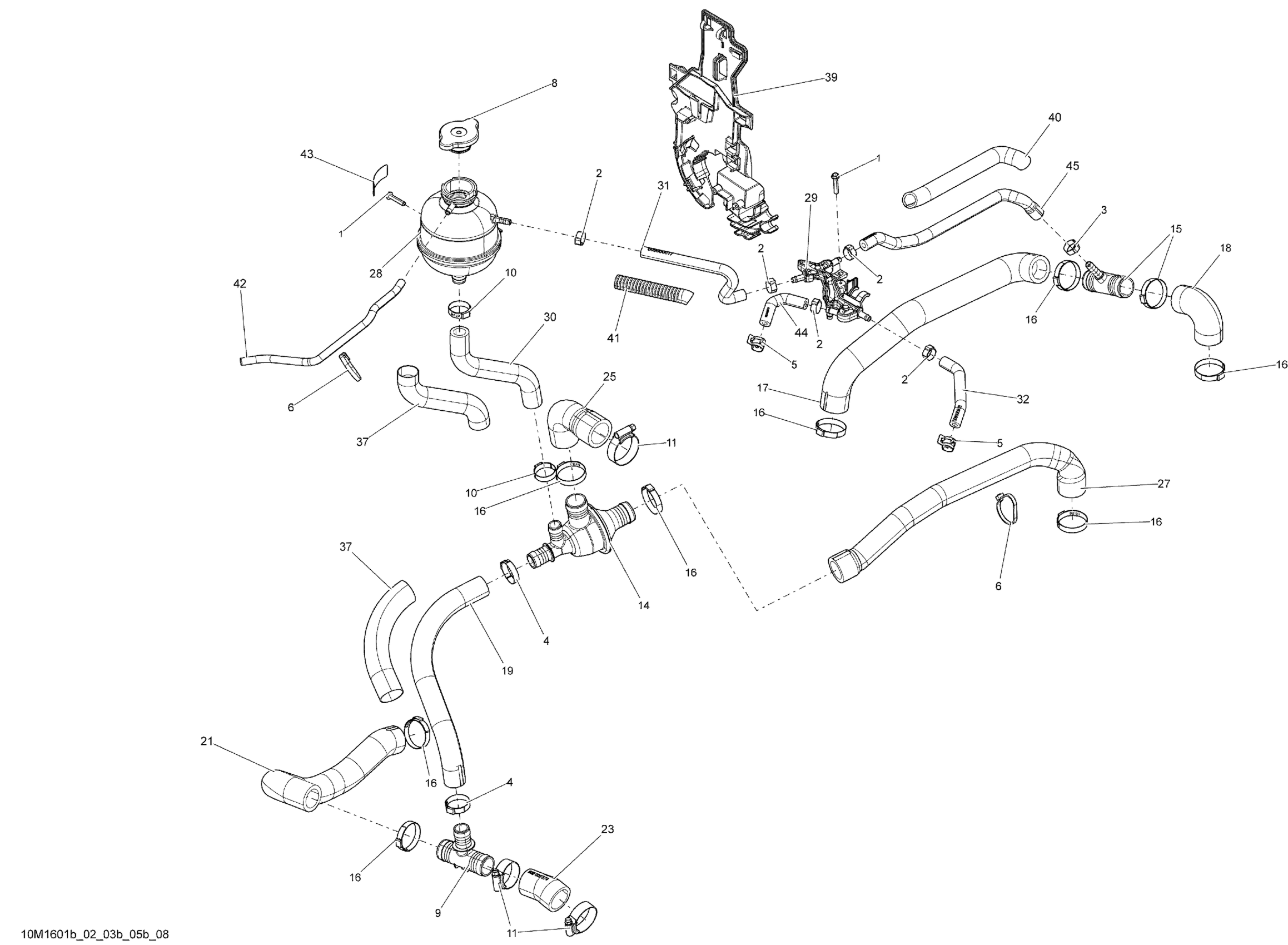

Ski-Doo FREERIDE, 2016 Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

2

Oetiker Clamp

293650046

$2.33

3

Crimp Clamp, 15.3-706R

293650047

$2.64

4

Crimp Clamp

293650099

$3.55

5

Spring Clamp

293650210

$5.22

6

Tie-Rap 180 mm

414115200

$0.09

8

Radiator Pressure Cap

509000180

$11.69

9

T-Fitting

509000372

$7.87

10

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

11

Aba Gear Clamp, 26-38 MM

509000443

$5.68

14

Thermostat Housing

509000499

$39.97

15

T-Fitting

509000510

$11.52

16

Oetiker Gear Clamp, 36.5-706R

509000529

$8.20

17

Radiator Hose

509000670

$34.58

18

Radiator Hose This part replaces 509000671.

509001066

$18.43

19

Bypass Hose

509000672

$24.58

21

Radiator Hose

509000673

$22.28

23

Engine Inlet Hose

509000997

$18.43

25

Engine Outlet Hose

509000678

$18.43

27

Thermostat Outlet Hose

509000679

$25.35

28

Coolant Tank

509000802

$59.12

29

Bleed Collector

509000803

$24.58

30

Filling Hose

509000812

$23.05

31

HOSE - Call your local BRP dealership

509000817

Unavailable

32

Bleeder Hose

509000818

$10.52

37

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

39

TANK-SUPPORT - Call your local BRP dealership

509000973

Unavailable

40

Tubing 16 Mm 1000Mm Long

219704408

$6.23

41

Was 409901800 Tubing (13 mm)

219704400

$9.40

42

Hose 6 Mm 15000Mm Long

219704360

$104.62

43

Warning Decal

516005904

Unavailable

44

Bleeder Hose

509000819

$10.52

45

Bleeder Hose

509000906

$23.05
