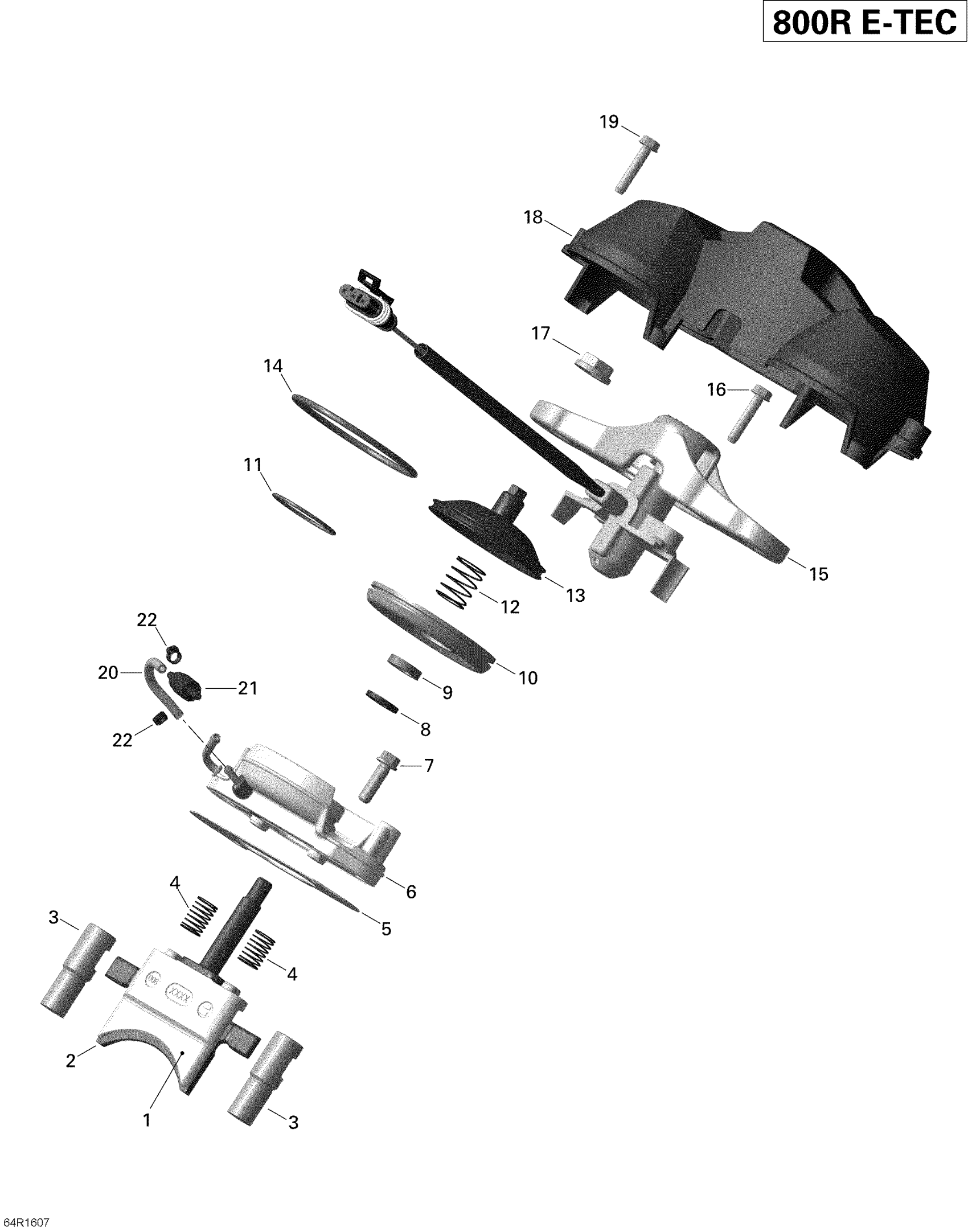

Ski-Doo FREERIDE, 2016 3D Rave - 800R E-TEC Diagram

#

Description
Price

1

Upper Exhaust Valve | Composante émission de type échappement.

420854900

$20.74

2

Lower Exhaust Valve This part replaces 420854909.

420854904

$58.43

3

Exhaust Valve

420854890

$11.18

4

Spring

420238558

$5.22

5

Gasket

420430032

$16.89

6

Valve Housing

420854888

$96.89

7

Torx Flange Screw M6 X 20

420440207

$2.54

8

Gasket Ring

420431380

$8.34

9

Oil Seal | Included in gasket kit

420950732

$8.34

10

Bellows

420260725

$41.51

11

Hose Spring This part replaces 420838253.

420838255

$6.11

12

Spring

420238557

$5.22

13

Valve Cover

420854442

$35.35

14

Hose Spring This part replaces 420939285.

420939286

$10.52

15

Position Sensor

420854089

$109.20

16

Tapping Screw M5 X 22

420841550

$1.68

17

Nut M12 X 1.5

420942190

$12.52

18

Cover

420910821

$12.52

19

Tapping Screw M5 X 22

420841550

$1.68

20

Oil Hose 1500Mm Long

219704404

$13.62

21

Check Valve Ass’y

420956515

$7.88

22

Clamp

420851508

$12.52
