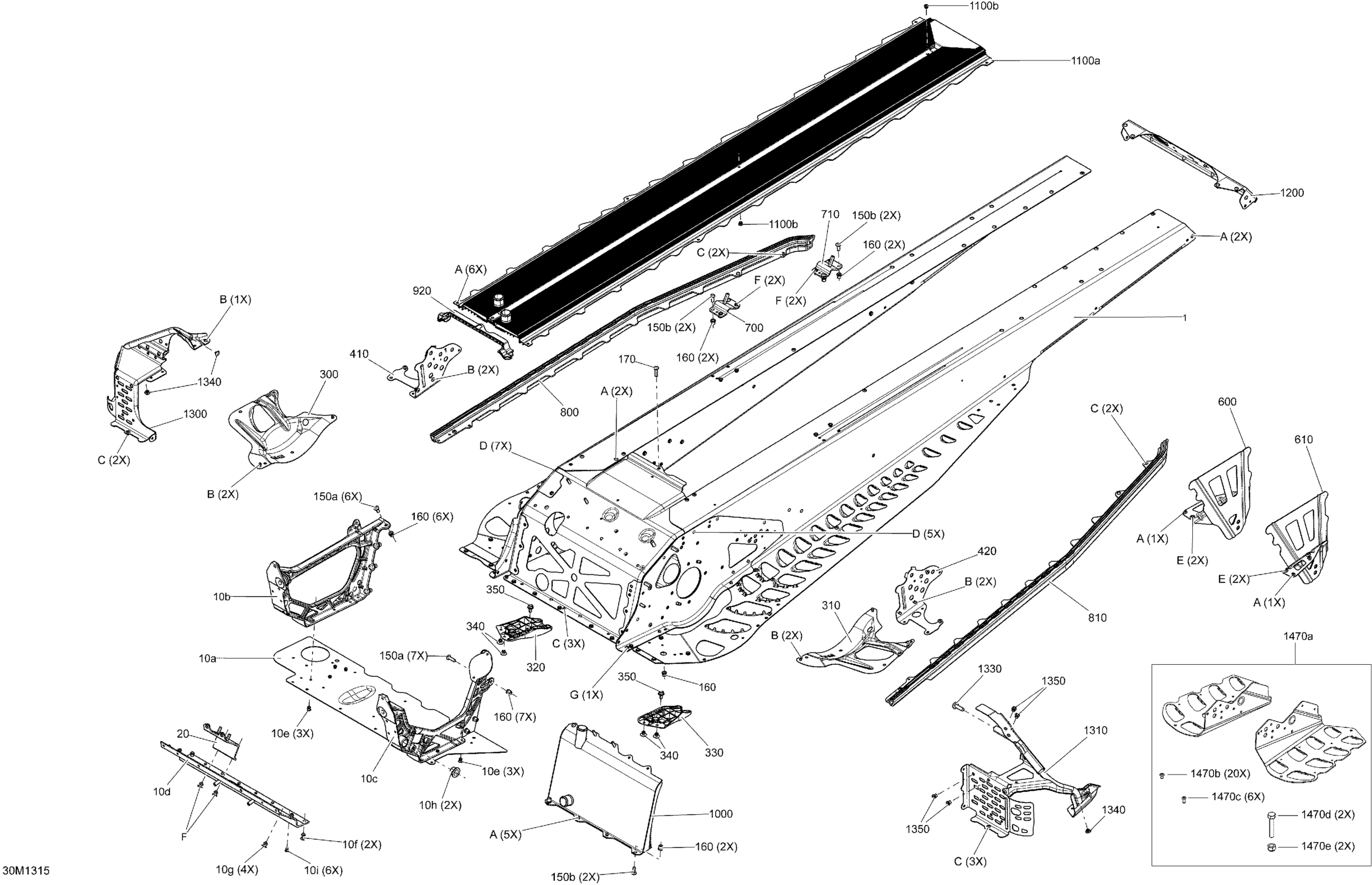

Ski-Doo FREERIDE 154R, 800RE XP, 2013 09- Frame Diagram

#

Description
Price

1

FRAME ASS'Y - Call your local BRP dealership | Includes 1 to G

415129744

Unavailable

10a

E Module | Includes 10n to 10at

518327567

$469.99

10b

RH Member

518326795

$284.99

10c

LH Member

518326796

$229.99

10d

Front Member

518326198

$64.99

10e

Stavex Rivet

293150144

$0.82

10f

Hemlock Rivet 6.5 mm

293150120

$7.41

10g

Hemlock Rivet, 6.5 mm

293150119

$4.29

10h

Leg Cushion

505073317

$8.66

10i

Not Available As Spare Part - Friction Washer

Unavailable

20

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

150a

Hex. Flange Screw M6 X 20

207662044

$2.00

150b

Hex. Flange Screw M6 X 16

207661644

$0.74

160

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

170

Hex. Flange Screw M6 X 20

207662044

$2.00

300

RH Reinforcement

518324874

$27.99

310

LH Reinforcement

518324875

$27.99

320

RH Deflector, Black Polypropylene

518325782

$13.99

330

LH Deflector, Black Polypropylene

518325783

$13.99

340

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

350

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

410

RH Front Suspension Retainer | Package Iron Dog

518326616

$43.99

420

LH Front Suspension Retainer | Package Iron Dog

518326617

$43.99

600

RH REAR RETAINER - Call your local BRP dealership

518326621

Unavailable

610

LH REAR RETAINER - Call your local BRP dealership

518326622

Unavailable

700

RH Rear Base

518325973

$21.99

710

LH Rear Base | Includes 10v to 10x

518325974

$21.99

800

RH ROLLER - Call your local BRP dealership

518326601

Unavailable

810

LH Roller

518326602

Unavailable

920

Seal

518326656

$9.19

1000

Front Radiator | Includes 10b to 10b2

518326485

$444.99

1100a

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

1100b

Stavex Rivet

293150144

$0.82

1200

Rear Cap

518327105

$22.49

1300

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

1310

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

1330

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

1340

Full Moon Dart 5 mm

293730042

$2.21

1350

Insert M5 X 0.8

293450268

$2.09

1470a

CHASSIS KIT - Call your local BRP dealership | Includes 1470a to 1470e This part replaces 860200522.

860200813

Unavailable

1470b

Pop Rivet 3/16"

390402200

$0.35

1470c

Pop Rivet 3/16"

390402300

$0.75

1470d

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

1470e

Elastic Locking Nut M10 X 1.5

233601416

$1.69

A

Avex Rivet

390909200

$0.30

B

Avex Rivet

390909100

$0.30

C

Stavex Rivet

293150144

$0.82

D

Henrob Rivet

293150146

$2.09

E

Hemlock Rivet, 6.5 mm

293150096

$3.27

F

Hemlock Rivet, 6.5 mm

293150119

$4.29

G

Hemlock Rivet, 6.4 mm

293150174

$7.86
