Description

Price

1a

Runner 154", Orange

503193382

Unavailable

1b

Black, Slider 154

503191198

$34.99

1c

Phillips Screw M6 X 25

208562531

$2.11

1d

Elastic Stop Nut M6

232561414

$0.55

2

Runner Protector

503192299

$24.99

3

Hex. Flange Screw M5 X 25

207652544

$0.50

4

Hex. Flange Elastic Nut M5

233251414

$1.04

5

Washer

250200140

$1.01

6a

Rubber Stopper Ass'y

503195523

$5.59

6b

Reinforcement Stopper

572084800

$12.99

7

Pop Rivet 3/16"

293150142

$2.29

8

Washer

503191273

$1.35

9

RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership

503190741

Unavailable

10

WASHER - Call your local BRP dealership

503192493

Unavailable

11

Hex. Cap Screw M5 X 35

250000483

$6.39

12

Elastic Stop Nut M5

232551414

$0.87

13a

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$48.49

13b

Ball Bearing | Package-STD

503190396

$14.30

13c

Retaining Ring

415129371

$12.01

14

Casted Support

503193894

$16.49

15

Hex. Flange Screw M6 X 70

207667056

$4.44

16

Wheel Cup M6

503191820

$4.99

17

Hex. Flange Elastic Nut M6

233261466

$2.00

18

Hex. Flange Screw M6 X 25

207662556

$4.44

19

Labyrinth Seal

503190434

$6.09

20

Black, Wheel Cap

503192771

$2.39

21

Spring Support Kit

861805547

$10.49

22

Spring Support Kit

861805547

$10.49

23

Socket Screw M8 X 25

205082554

$2.11

24

Elastic Flange Nut M8

233281466

$1.01

25

Tensioner

503192583

$8.29

26

HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership

250000479

Unavailable

27

Hex. Flange Elastic Nut M6

233261466

$2.00

28

Hex Screw M10 x 100

230100054

$6.45

29

Elastic Locking Nut M10

233601466

$2.11

30

Stopper Strap

503192360

$20.99

31

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

32

Flat Washer 8 mm

250200128

$4.44

33

Elastic Flange Nut M8

233281466

$1.01

34

Axle Strap

503191260

$30.99

35

Spacer

503191448

$11.99

36

Socket Head Screw M10 X 35

205503554

$7.51

37

Washer

503192496

$0.77

38

REINFORCEMENT, BLACK - Call your local BRP dealership

503193907

Unavailable

39

LOWER SHAFT - Call your local BRP dealership

503193322

Unavailable

40

Socket Head Screw M10 X 35

205503554

$7.51

41

Washer

503192496

$0.77

42

Elastic Flange Nut M8

233281466

$1.01

43

Washer

503192494

$3.17

44

Hex. Cap Screw M8 X 30

207183054

$4.44

45a

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 45a to 45b

503193375

Unavailable

45b

Bushing

503191554

$6.14

46

Lower Axle

503191966

$15.89

47

Washer

503190656

$2.96

48

Hex. Cap Screw M12 X 35

250000537

$3.17

49

Washer

503192491

$4.54

50

Washer

503191926

$1.58

51

Axle

503190698

$20.99

52

Washer

503192496

$0.77

53

Hex. Cap Screw M10 X 60

207006056

$7.51

54

Elastic Locking Nut M10

233601466

$2.11

55

Pivot Arm Axle

503189156

$21.99

56

Bolt M8 X 248mm

503192440

$30.49

57

Washer

503192494

$3.17

58

Elastic Flange Nut M8

233281466

$1.01

59a

Rear Arm | Includes 3000a to 3000a7

503192464

$201.49

59b

Bushing

572080700

$17.39

59c

Swivel Bushing

503191555

$7.83

59d

LH Cam Adjuster

503191565

$16.49

59e

RH Cam Adjuster

503191566

$16.49

59f

E-Circlip

293370013

$0.65

59g

Upper Axle, Pivot Arm

503144300

$11.65

59h

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

59i

Washer

503189157

$3.28

59j

Bolt M8, Short

732601197

$15.36

59k

Hex. Elastic Stop Nut M8

232581414

$0.56

59l

Grease Fitting

408200700

$3.49

59m

Extended Bushing

503191556

$7.83

59n

Washer

503191651

$8.32

60

Upper Shaft

503191215

$38.99

61

Bushing

503191262

$15.79

62

Socket Set Screw M6 X 8

206260844

$1.48

64a

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

64b

Ball Bearing

503193548

$17.99

64c

Retaining Ring

415129780

$15.79

65

Retaining Ring

503168800

$14.99

66

Washer

503192496

$0.77

67

Hex. Screw S.Grip M10 X 55

250000605

$8.11

68

LH Spring

503192081

$67.99

69

RH Spring

503192080

$67.99

70

Link Rod

503192465

$52.99

71

Axle Bar (Long)

503190643

$17.39

72

Hex. Flange Screw

207688544

$1.69

73

Elastic Flange Nut M8

233281466

$1.01

74a

REAR SHOCK - Call your local BRP dealership | Includes 74a to 74g

503192459

Unavailable

74b

O-Ring

415093807

$35.99

74c

Piston Ring | Not Shown

415093806

$16.86

74d

Air Valve

505070398

$20.99

74e

Screw | Not Shown

505070399

$4.12

74f

O-Ring

505070400

$4.54

74g

O-Ring

415093804

$4.54

75

Leg Cushion

505072663

$9.23

76

Bushing

414936000

$13.99

77

Hex. Flange Screw M8 X 40

207684044

$1.48

78

Elastic Flange Nut M8

233281466

$1.01

79a

Center Shock Ass'y | Includes 79a to 79g

503193374

Unavailable

79b

O-Ring

415093807

$35.99

79c

Piston Ring | Not Shown

415093806

$16.86

79d

Air Valve

505070398

$20.99

79e

Screw | Not Shown

505070399

$4.12

79f

O-Ring

505070400

$4.54

79g

O-Ring

415093804

$4.54

79h

Black Spring

503192744

$90.99

79i

Black, Spring

503192724

$90.99

79j

Spring Stopper

503194270

$19.99

79k

Urethane Bushing

503189117

$8.19

79l

Bushing | Includes 240d to 240d1

503189282

$4.34

79m

Bushing

503189271

$13.99

79n

Adjustment Knob

505072753

$2.19

79o

Allen Screw M3 X 0.5 X 10

250000644

$2.11

79p

Spring Spacer

503192743

$16.49

80

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

81

Elastic Locking Nut M10

233601466

$2.11

82

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

83

Center Bushing

503191259

$11.49

84

Washer

503192491

$4.54

85

Socket Head Screw M12 X 35

205523554

$4.44

86

Rear Axle

503190429

$59.99

87

Rear Spacer

503191263

$18.49

88

Rear Wheel Spacer

503190428

$8.14

89a

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$51.99

89b

Ball Bearing | Package-STD

503190396

$14.30

89c

Retaining Ring

415129371

$12.01

91

Labyrinth Seal

503190682

$6.19

92

Labyrinth Seal

503190434

$6.09

93a

Wheel 200, Black | Includes 600 to 600b

503191741

$51.99

93b

Ball Bearing | Package-STD

503190396

$14.30

93c

Retaining Ring

415129371

$12.01

94

Washer

503191910

$2.32

95

Conical Spring Washer 10 mm

234201474

$1.69

96

Hex. Screw With Nylon

250000019

$1.69

97

Black, Wheel Cap

503192771

$2.39

101a

ROCKER - Call your local BRP dealership

503192467

Unavailable

101b

Swivel Bushing

503191555

$7.83

102

Rocker Support

503193384

Unavailable

103

Bushing

503193037

$16.18

104

Bushing | Includes 240d to 240d1

503189282

$4.34

105

Hex. Flange Screw M10 X 55

207605546

$2.11

106

Hex. Flange Elastic Nut M10

233201436

$2.11

107

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

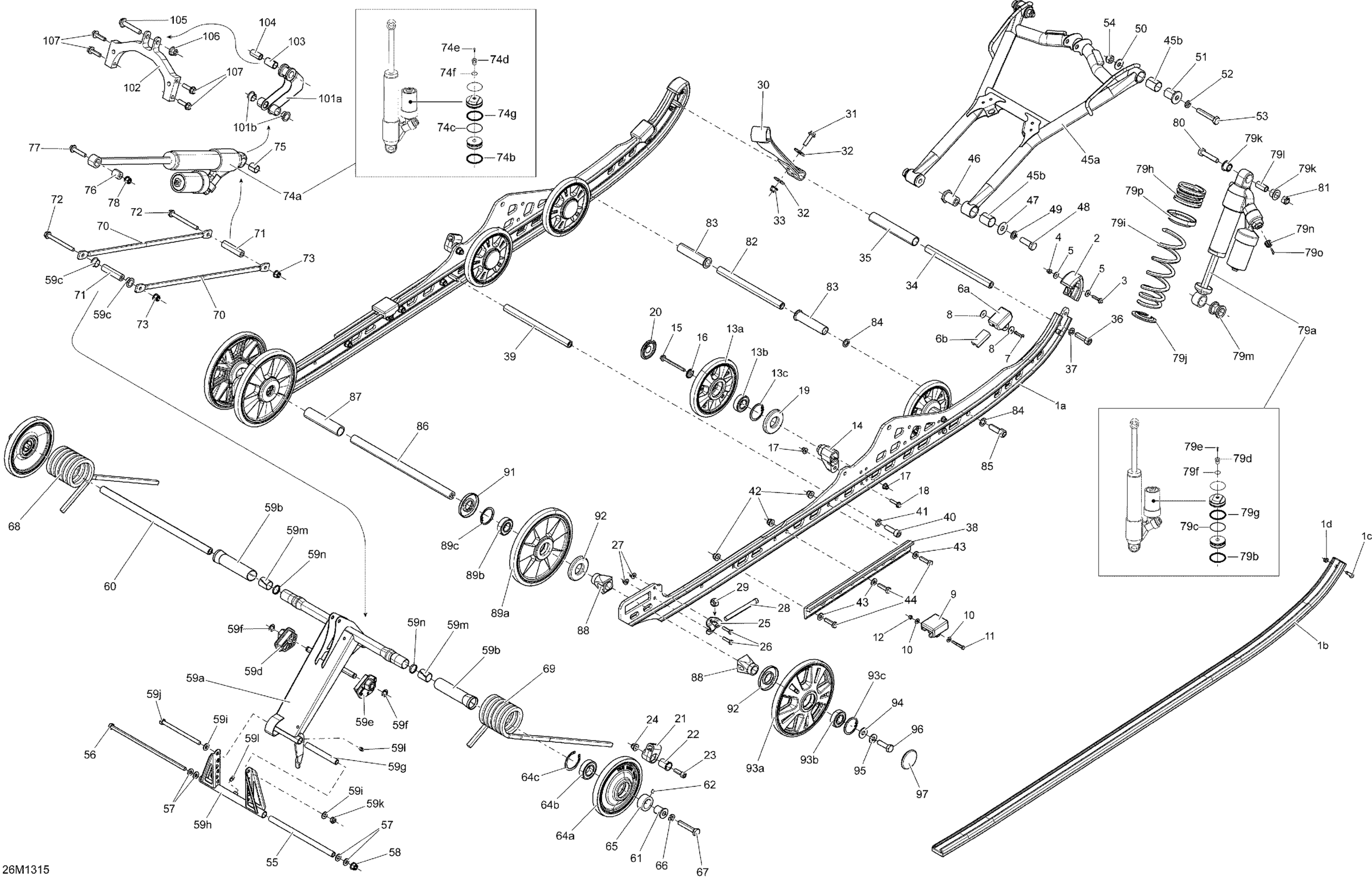

Ski-Doo FREERIDE 154R, 800RE XP, 2013 08- Rear Suspension Diagram

Runner 154", Orange

Black, Slider 154

Phillips Screw M6 X 25

Elastic Stop Nut M6

Runner Protector

Hex. Flange Screw M5 X 25

Hex. Flange Elastic Nut M5

Washer

Rubber Stopper Ass'y

Reinforcement Stopper

Pop Rivet 3/16"

Washer

RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership

WASHER - Call your local BRP dealership

Hex. Cap Screw M5 X 35

Elastic Stop Nut M5

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

Ball Bearing | Package-STD

Retaining Ring

Casted Support

Hex. Flange Screw M6 X 70

Wheel Cup M6

Hex. Flange Elastic Nut M6

Hex. Flange Screw M6 X 25

Labyrinth Seal

Black, Wheel Cap

Spring Support Kit

Spring Support Kit

Socket Screw M8 X 25

Elastic Flange Nut M8

Tensioner

HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership

Hex. Flange Elastic Nut M6

Hex Screw M10 x 100

Elastic Locking Nut M10

Stopper Strap

Hex. Flange Screw M8 X 30 | DS 650 X

Flat Washer 8 mm

Elastic Flange Nut M8

Axle Strap

Spacer

Socket Head Screw M10 X 35

Washer

REINFORCEMENT, BLACK - Call your local BRP dealership

LOWER SHAFT - Call your local BRP dealership

Socket Head Screw M10 X 35

Washer

Elastic Flange Nut M8

Washer

Hex. Cap Screw M8 X 30

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 45a to 45b

Bushing

Lower Axle

Washer

Hex. Cap Screw M12 X 35

Washer

Washer

Axle

Washer

Hex. Cap Screw M10 X 60

Elastic Locking Nut M10

Pivot Arm Axle

Bolt M8 X 248mm

Washer

Elastic Flange Nut M8

Rear Arm | Includes 3000a to 3000a7

Bushing

Swivel Bushing

LH Cam Adjuster

RH Cam Adjuster

E-Circlip

Upper Axle, Pivot Arm

Pivot Arm | Includes 3000j to 3000j3

Washer

Bolt M8, Short

Hex. Elastic Stop Nut M8

Grease Fitting

Extended Bushing

Washer
