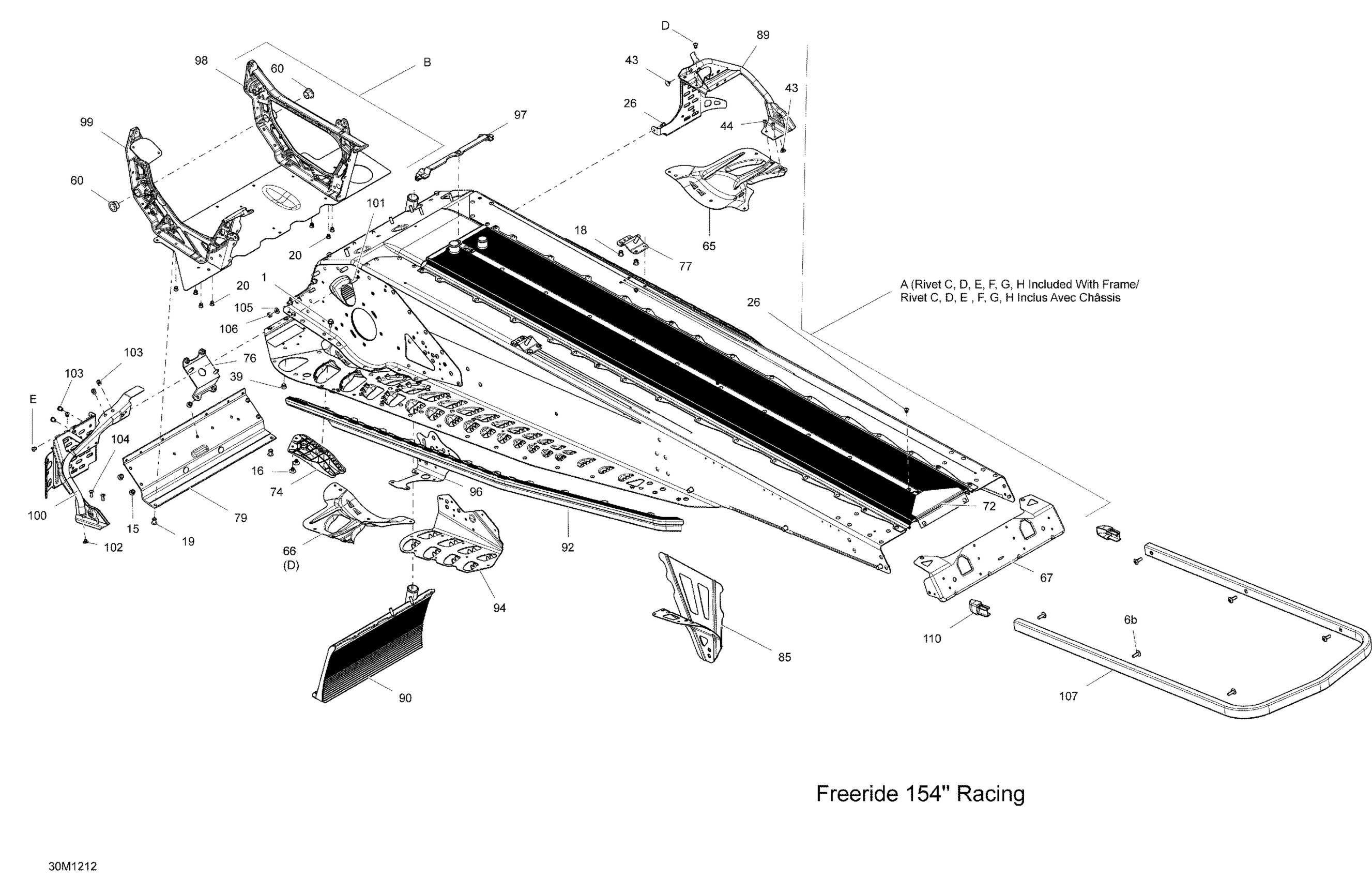

Ski-Doo Freeride 154 800R E-TEC (Racing), 2012 09- Frame Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

2

Elastic Stop Nut M6

232561414

$0.55

15

Hemlock Rivet, 6.5 mm

293150119

$4.29

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

18

Hemlock Rivet, 6.5 mm

293150119

$4.29

19

Hemlock Rivet 6.5 mm

293150120

$7.41

20

Stavex Rivet

293150144

$0.82

26

Stavex Rivet

293150144

$0.82

39

Hemlock Rivet, 6.4 mm

293150174

$7.86

43

Full Moon Dart 5 mm

293730042

$2.21

44

Pop Rivet 3/16”

390407200

$0.70

60

Leg Bushing

505072690

$12.49

65

RH Reinforcement

518324874

$27.99

66

LH Reinforcement

518324875

$27.99

67

Rear Cap

518327105

$22.49

72

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

74

RH Deflector, Black Polypropylene

518325782

$13.99

74

LH Deflector, Black Polypropylene

518325783

$13.99

76

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

77

RH Rear Base

518325973

$21.99

77

LH Rear Base | Includes 10v to 10x

518325974

$21.99

79

Front Member

518326198

$64.99

85

RH REAR RETAINER - Call your local BRP dealership

518326621

Unavailable

85

LH REAR RETAINER - Call your local BRP dealership

518326622

Unavailable

89

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

90

Front Radiator | Includes 10b to 10b2

518326485

$444.99

92

RH ROLLER - Call your local BRP dealership

518326601

Unavailable

92

LH Roller

518326602

Unavailable

94

CHASSIS KIT - Call your local BRP dealership | Includes 1470a to 1470e This part replaces 860200522.

860200813

Unavailable

96

RH Front Suspension Retainer | Package Iron Dog

518326616

$43.99

96

LH Front Suspension Retainer | Package Iron Dog

518326617

$43.99

97

Seal

518326656

$9.19

98

RH Member

518326795

$284.99

99

LH Member

518326796

$229.99

100

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

101

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

102

Full Moon Dart 5 mm

293730042

$2.21

103

Insert M5 X 0.8

293450268

$2.09

104

Interlock Rivet 3/16''

293150194

$1.04

105

Flat Washer

250200039

$0.74

106

Elastic Stop Nut M6

232561414

$0.55

107

Black Rear Bumper, 154" | Vehicle 154" North America

518326049

$116.49

110

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$9.99

6b

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

A

FRAME FREERIDE 154'' RACING - Call your local BRP dealership

415129638

Unavailable

B

E Module | Includes 10n to 10at

518327567

$469.99

C

Avex Rivet

390909200

$0.30

D

Avex Rivet

390909100

$0.30

E

Stavex Rivet

293150144

$0.82

F

Henrob Rivet

293150146

$2.09

G

Hemlock Rivet, 6.5 mm

293150096

$3.27

H

Monobolt Rivet, 4.8 mm

293150191

$0.99
