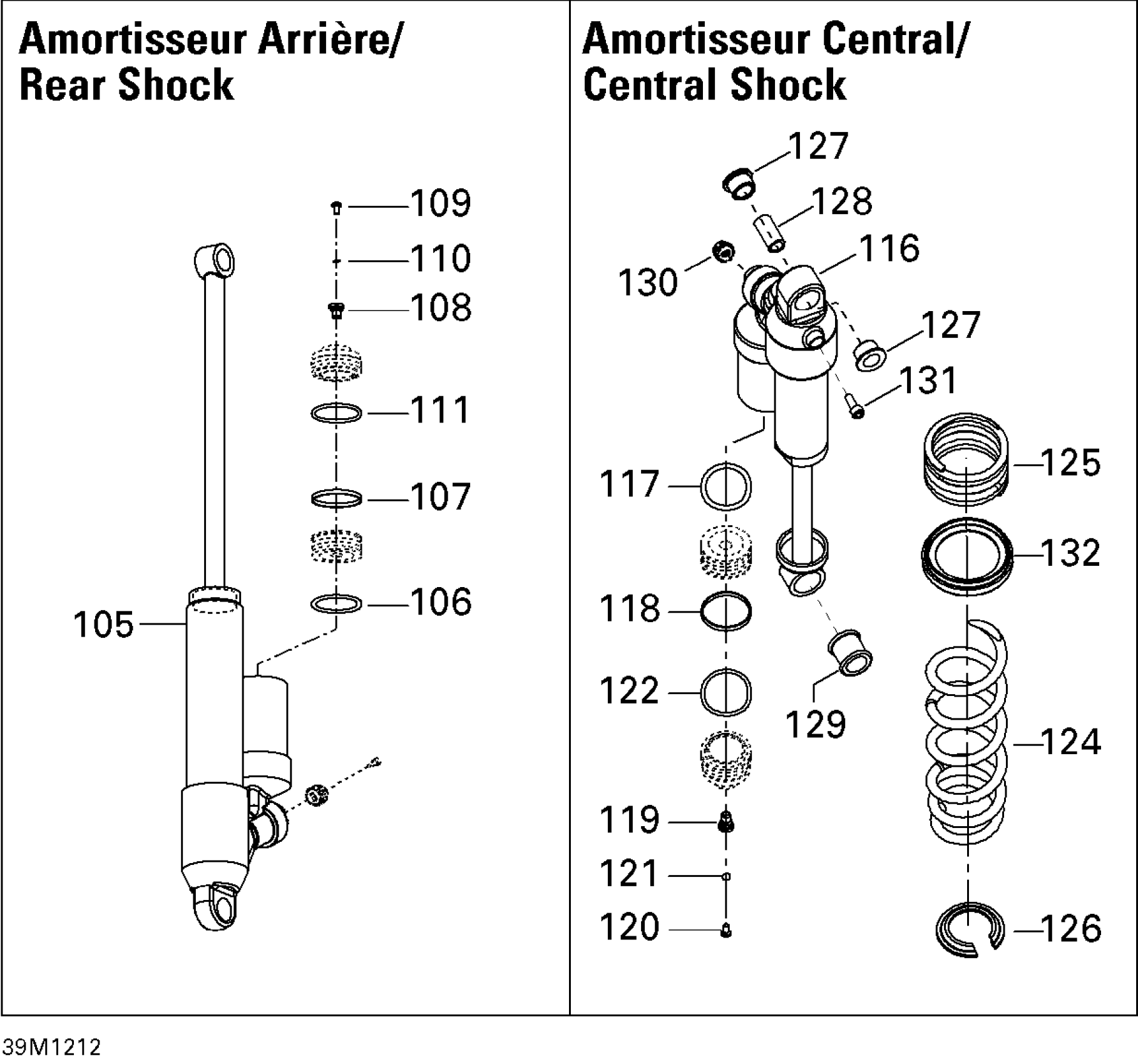

Ski-Doo Freeride 154 800R E-TEC (Racing), 2012 Rear Suspension Shocks Diagram

Description

Price

105

Rear Shock | Includes 5500 to 5500j

503192964

$877.49

106

O-Ring

415093807

$34.58

107

Piston Ring | Not Shown

415093806

$14.97

108

Air Valve

505070398

$17.66

109

Screw | Not Shown

505070399

$4.00

110

O-Ring

505070400

$4.38

111

O-Ring

415093804

$4.38

116

CENTER SHOCK - Call your local BRP dealership | Includes 116 to 122

503192458

Unavailable

117

O-Ring

415093807

$34.58

118

Piston Ring | Not Shown

415093806

$14.97

119

Air Valve

505070398

$17.66

120

Screw | Not Shown

505070399

$4.00

121

O-Ring

505070400

$4.38

122

O-Ring

415093804

$4.38

124

Black, Spring

503192724

$88.43

125

Black Spring

503192744

$88.43

126

Spring Stopper

503194270

$16.89

127

Urethane Bushing

503189117

$6.88

128

Bushing | Includes 240d to 240d1

503189282

$4.18

129

Bushing

503189271

$10.46

130

Adjustment Knob

505072753

$2.08

131

Allen Screw M3 X 0.5 X 10

250000644

$1.74

132

Spring Spacer

503192743

$12.65
