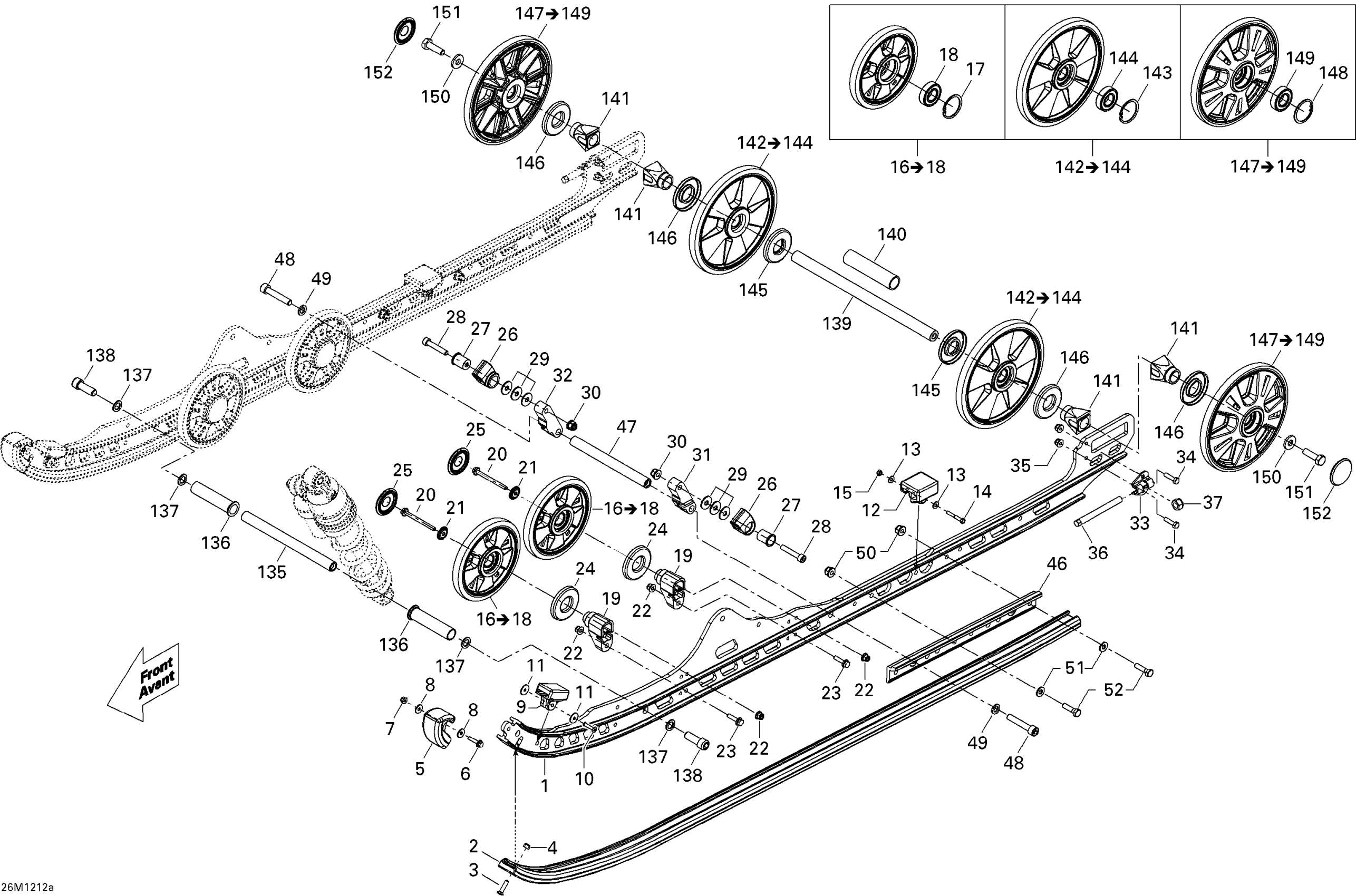

Ski-Doo Freeride 154 800R E-TEC (Racing), 2012 Rear Suspension Runner Diagram

#

Description
Price

1

RUNNER 154, GOLD - Call your local BRP dealership

503192482

Unavailable

2

Black, Slider 154

503191198

$32.06

3

Phillips Screw M6 X 25

208562531

$2.00

4

Elastic Stop Nut M6

232561414

$1.78

5

Runner Protector

503192299

$23.10

6

Hex. Flange Screw M5 X 25

207652544

$0.48

7

Hex. Flange Elastic Nut M5

233251414

$1.91

8

Washer | DS 650 X

391301600

$0.46

9

Rubber Stopper

503190576

$9.93

10

Pop Rivet 3/16"

293150142

$2.04

11

Washer

503191273

$1.03

12

RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership

503190741

Unavailable

13

WASHER - Call your local BRP dealership

503192493

Unavailable

14

Hex. Cap Screw M5 X 35

250000483

$5.06

15

Elastic Stop Nut M5

232551414

$0.82

16

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$44.75

17

Retaining Ring

415129371

$8.66

18

Ball Bearing | Package-STD

503190396

$8.18

19

Casted Support

503193894

$12.37

20

Hex. Flange Screw M6 X 70

250001027

$2.00

21

Wheel Cup M6

503191820

$4.52

22

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

23

Hex Flange Screw M6 x 25

250000522

$4.15

24

Labyrinth Seal

503190434

$4.16

25

Black, Wheel Cap

503192771

$2.21

26

Spring Support Kit

861805547

$7.90

27

Spring Support Kit

861805547

$7.90

28

Socket Head Screw M8 X 45

205084544

$0.85

29

Flat Washer 8 mm

234082410

$1.27

30

Elastic Flange Nut M8

250100131

Unavailable

31

LH SPRING SUPPORT - Call your local BRP dealership

503192486

Unavailable

32

RH SPRING SUPPORT - Call your local BRP dealership

503192487

Unavailable

33

Tensioner

503192583

$5.67

34

HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership

250000479

Unavailable

35

Elastic Flange Nut M6 X 1.0

233261416

$2.00

36

Hex Screw M10 x 100

230100054

$6.07

37

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

46

REINFORCEMENT, BLACK - Call your local BRP dealership

503193907

Unavailable

47

AXLE - Call your local BRP dealership

503192485

Unavailable

48

SOCKET SCREW M10 X 55 - Call your local BRP dealership

250000489

Unavailable

49

Washer

503192496

$0.73

50

Hex. Flange Elastic Nut M8

233281414

$1.31

51

Washer

503192494

$3.01

52

HEX. CAP SCREW FULL THREAD M8 X 30 - Call your local BRP dealership

250000482

Unavailable

135

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

136

Center Bushing

503191259

$8.70

137

Washer

503192491

$4.25

138

Socket Screw M12 X 35

250000484

$7.09

139

Rear Axle

503190429

$58.18

140

Rear Spacer

503191263

$14.90

141

Rear Wheel Spacer

503190428

$5.88

142

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$48.48

143

Retaining Ring

415129371

$8.66

144

Ball Bearing | Package-STD

503190396

$8.18

145

Labyrinth Seal

503190682

$5.67

146

Labyrinth Seal

503190434

$4.16

147

Wheel 200, Black | Includes 600 to 600b

503191741

$48.48

148

Retaining Ring

415129371

$8.66

149

Ball Bearing | Package-STD

503190396

$8.18

150

Washer

503190439

$5.64

151

Hex. Screw With Nylon

250000019

$1.63

152

Black, Wheel Cap

503192771

$2.21
