Description

Price

38

Stopper Strap

503192360

$20.99

39

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

40

Flat Washer

224081301

$0.88

41

Hex. Flange Elastic Nut M8

233281414

$1.47

42

Axle Strap

503191260

$30.99

43

Spacer

503191448

$11.99

44

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

45

Washer

503189564

$0.74

53

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 53 to 62

503192935

Unavailable

54

Extended Bushing

503191556

$7.83

55

Grease Fitting

408200700

$3.49

56

ROCKER - Call your local BRP dealership

503192467

Unavailable

58

Swivel Bushing

503191555

$7.83

59

Bushing

503193037

$16.18

60

Bushing | Includes 240d to 240d1

503189282

$4.34

61

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

62

Elastic Locking Nut M10 X 1.5

233601416

$1.69

63

Lower Shaft

503191279

$28.99

64

Bushing

503189324

$14.15

65

Washer

503192496

$0.77

66

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

250000469

Unavailable

67

Upper Shaft

503191215

$38.99

68

Bushing

503191262

$15.79

69

Washer

503192496

$0.77

70

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

250000469

Unavailable

71

Pivot Arm Axle

503189156

$21.99

72

Bolt M8 X 248mm

503192440

$30.49

73

Washer

503192494

$3.17

74

Elastic Flange Nut M8

250100131

Unavailable

75

Rear Arm | Includes 3000a to 3000a7

503192464

$201.49

76

Bushing

572080700

$17.39

77

Swivel Bushing

503191555

$7.83

78

LH Cam Adjuster

503191565

$16.49

79

RH Cam Adjuster

503191566

$16.49

80

E-Circlip

293370013

$0.65

81

Upper Axle, Pivot Arm

503144300

$11.65

82

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

84

Washer

503189157

$3.28

85

Bolt M8, Short

732601197

$15.36

86

Hex. Elastic Stop Nut M8

232581414

$0.56

87

Grease Fitting

408200700

$3.49

88

Extended Bushing

503191556

$7.83

89

Washer

503191651

$8.32

90

Upper Shaft

503191215

$38.99

91

Bushing

503191262

$15.79

92

Socket Set Screw M6 X 8

206260844

$1.48

93

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

94

Retaining Ring

415129371

$12.01

95

Ball Bearing

503193548

$17.99

96

Retaining Ring

503168800

$14.99

97

Washer

503192496

$0.77

98

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

250000469

Unavailable

99

LH Spring

503192081

$67.99

100

RH Spring

503192080

$67.99

101

Link Rod

503192465

$52.99

102

Axle Bar (Long)

503190643

$17.39

103

Hex. Flange Screw

207688544

$1.69

104

Hex. Flange Elastic Nut M8

233281414

$1.47

105

Not Available As Spare Part - Friction Washer

Unavailable

112

Leg Cushion

505072663

$9.23

113

Bushing

414936000

$13.99

114

Hex. Flange Screw M8 X 40

207684044

$1.48

115

Hex. Flange Elastic Nut M8

233281414

$1.47

116

Not Available As Spare Part - Friction Washer

Unavailable

133

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

134

Elastic Locking Nut M10 X 1.5

233601416

$1.69

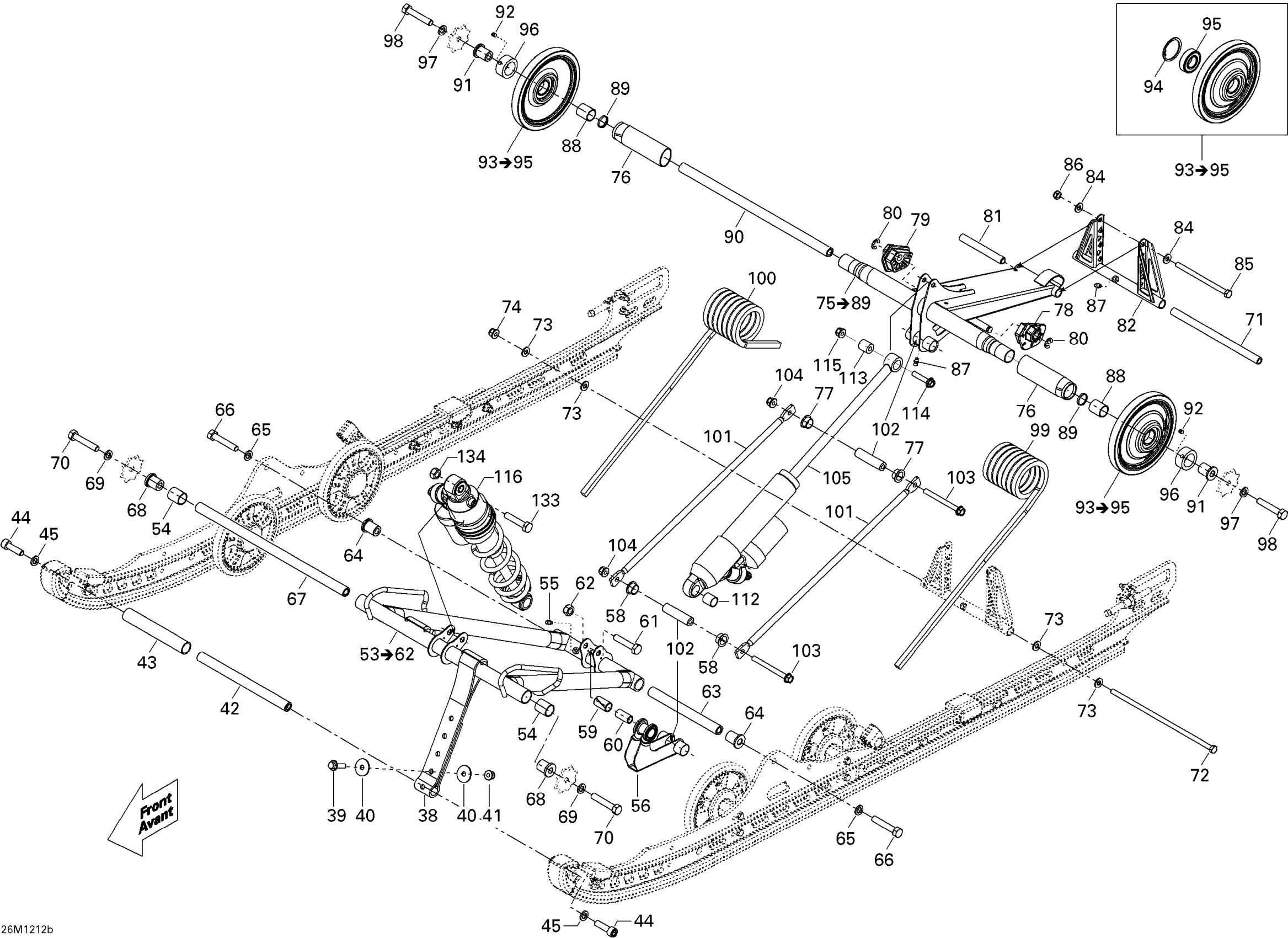

Ski-Doo Freeride 154 800R E-TEC (Racing), 2012 08- Rear Suspension Arm Diagram

Stopper Strap

Hex. Flange Screw M8 X 30 | DS 650 X

Flat Washer

Hex. Flange Elastic Nut M8

Axle Strap

Spacer

Socket Head Screw M10 X 35, Scotch Grip

Washer

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 53 to 62

Extended Bushing

Grease Fitting

ROCKER - Call your local BRP dealership

Swivel Bushing

Bushing

Bushing | Includes 240d to 240d1

Hex. Screw M10 X 1.5 X 50

Elastic Locking Nut M10 X 1.5

Lower Shaft

Bushing

Washer

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

Upper Shaft

Bushing

Washer

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

Pivot Arm Axle

Bolt M8 X 248mm

Washer

Elastic Flange Nut M8

Rear Arm | Includes 3000a to 3000a7

Bushing

Swivel Bushing

LH Cam Adjuster

RH Cam Adjuster

E-Circlip

Upper Axle, Pivot Arm

Pivot Arm | Includes 3000j to 3000j3

Washer

Bolt M8, Short

Hex. Elastic Stop Nut M8

Grease Fitting

Extended Bushing

Washer

Upper Shaft

Bushing

Socket Set Screw M6 X 8

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

Retaining Ring

Ball Bearing

Retaining Ring

Washer

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

LH Spring

RH Spring

Link Rod

Axle Bar (Long)

Hex. Flange Screw

Hex. Flange Elastic Nut M8

Not Available As Spare Part - Friction Washer

Leg Cushion

Bushing

Hex. Flange Screw M8 X 40

Hex. Flange Elastic Nut M8

Not Available As Spare Part - Friction Washer

Hex. Screw M10 X 1.5 X 50

Elastic Locking Nut M10 X 1.5
