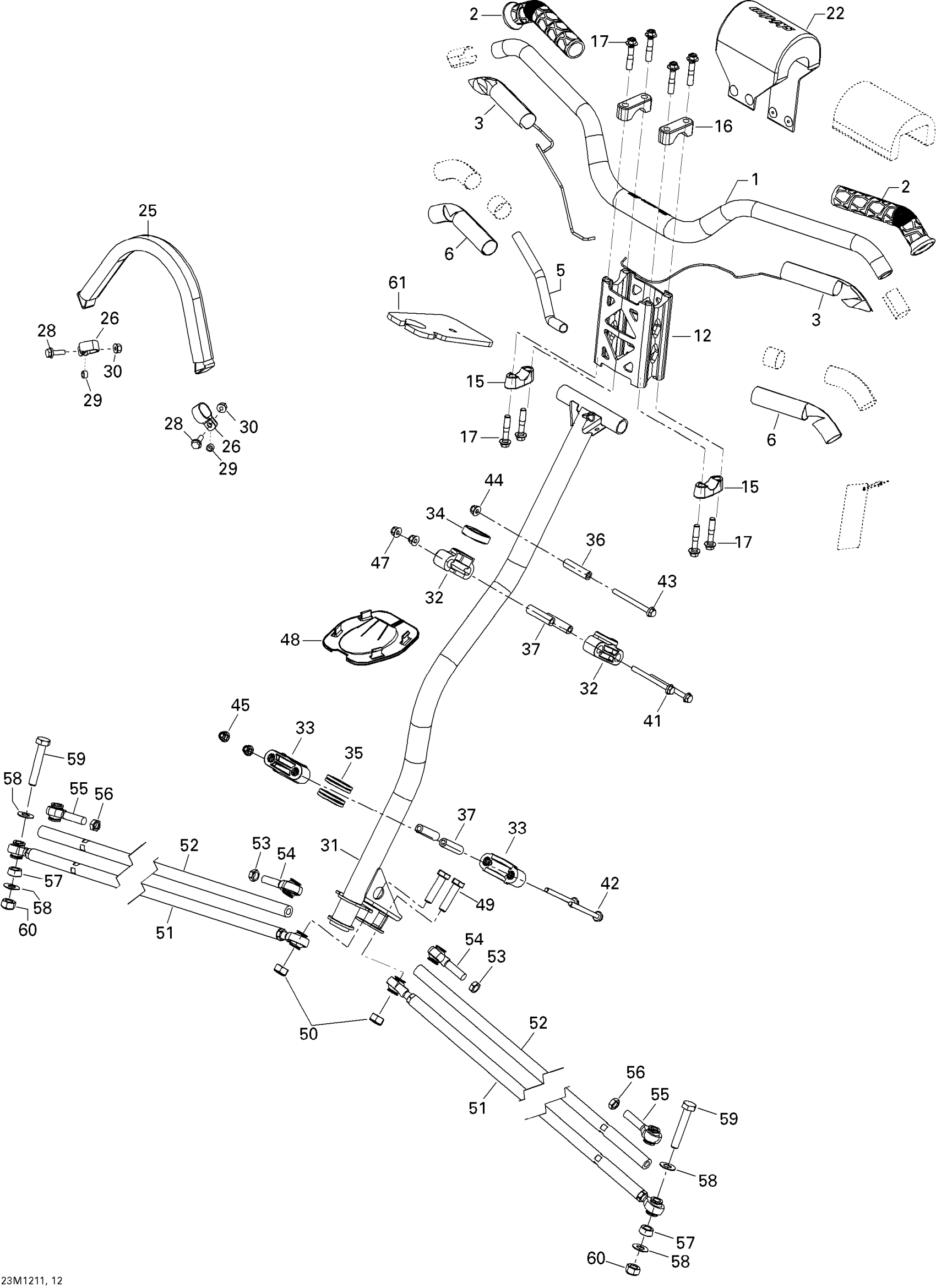

Ski-Doo Freeride 154 800R E-TEC (Racing), 2012 07- Steering Diagram

#

Description
Price

1

Handle Bar

506152489

$105.99

2

Grip

506152486

$16.34

3

Heating Element 28 WATT This part replaces 506152602.

506152603

$46.99

5

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

6

Isolant

506152611

$10.99

12

GOLD HANDLE BAR EXTENSION - Call your local BRP dealership

506152502

Unavailable

15

Steering Support | Includes 40 to 40a

506152751

$13.99

16

STEERING SUPPORT - Call your local BRP dealership

506152492

Unavailable

17

Hex. Flange Screw M8 X 40

250000352

$3.38

22

STEERING PAD - Call your local BRP dealership

506152505

Unavailable

25

Strap Ass'y | Package XMR

506152115

$44.49

26

SUPPORT PLATE - Call your local BRP dealership

506152535

Unavailable

28

Hex. Flange Screw M6 X 20

207662084

$1.69

29

Bushing | Package XMR

506152156

$5.61

30

Hex. Flange Elastic Nut M6

233261494

$1.58

31

MAIN TUBE - Call your local BRP dealership

506152478

Unavailable

32

Upper Half-Housing

506152508

$9.23

33

Lower Half-Housing

506152217

$7.62

34

Upper Anti-Vibration Gasket

506152509

$4.79

35

Lower Vibration Ring

506152518

$4.79

36

Housing Bushing

506152297

$12.99

37

Housing Bushing

506152297

$12.99

41

Hex. Flange Screw M6 X 70

207667056

$4.44

42

Hex. Flange Screw M6 X 70

207667044

$0.85

43

Hex. Flange Screw M6 X 70

207667056

$4.44

44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

45

Elastic Flange Nut M6 X 1.0

233261416

$2.11

47

Elastic Flange Nut M6 X 1.0

233261416

$2.11

48

Plate

506152163

$12.99

49

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

50

Elastic Stop Nut M10

232500416

$1.90

51

ROD_TIE ASSY - Call your local BRP dealership

506152499

Unavailable

52

ROD_TIE ASSY - Call your local BRP dealership

506152499

Unavailable

53

LH Thread Ball Joint

506152081

$41.49

54

LH Threaded Hex. Jam Nut M10

250100016

$0.74

55

RH Threaded Ball Joint

506152019

$41.49

56

RH Threaded Hex. Jam Nut M10

732610010

$0.74

57

Not Available As Spare Parts

XXX

Unavailable

58

Washer

506152194

$4.55

59

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

60

Elastic Stop Nut M10

232500416

$1.90

61

Bushing

506152476

$12.58
