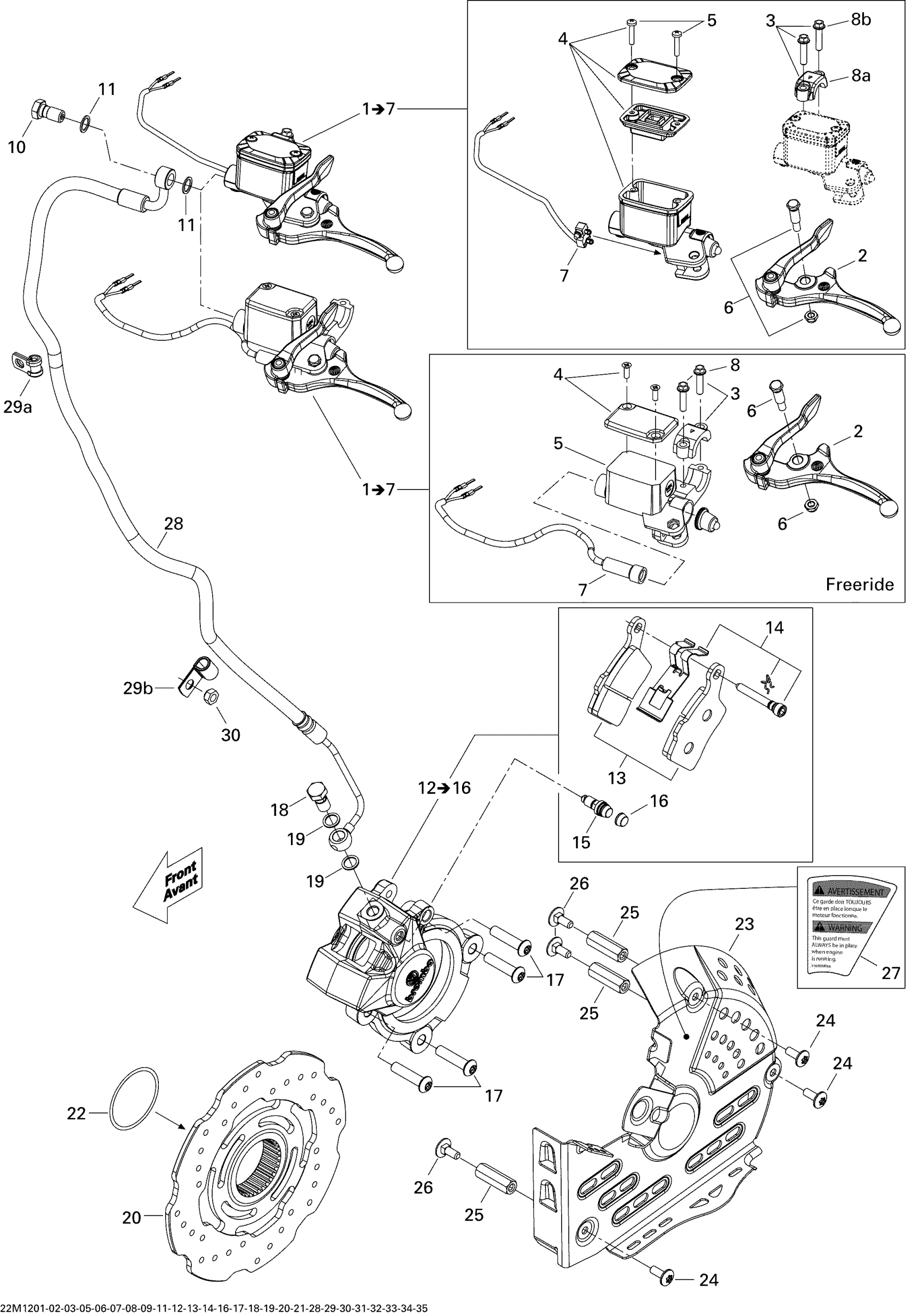

Ski-Doo Freeride 154 800R E-TEC (Racing), 2012 06- Hydraulic Brakes Diagram

#

Description
Price

1

MASTER CYLINDER ASS'Y - Call your local BRP dealership | Includes 1 to 7

507032510

Unavailable

2

LEVER - Call your local BRP dealership

415129216

Unavailable

3

Clamp And Screw Kit

507032477

$23.99

4

Cap

415029900

$41.49

5

WINDOW - Call your local BRP dealership

414990600

Unavailable

6

Pin Ass'y

415030000

$19.99

7

Microswitch

507032526

$39.99

10

Banjo Bolt

507032551

$5.61

11

Copper Washer

705601628

$4.44

12

Brake Caliper | Includes 200 to 200c

507032720

$349.49

13

Brake Pads Kit

507032473

$52.99

14

Brake Spring Kit

507032722

$37.99

15

Bleeder

507032475

$19.99

16

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

18

Banjo Bolt

507032551

$5.61

19

Copper Washer

705601628

$4.44

20

Disc

507032487

$185.49

22

O-Ring

293300134

$2.32

23

Black Disk Protector

507032492

$48.99

24

Torx Screw M6 X 16

250000223

$2.11

25

Threaded Tube

507032497

$15.72

26

Carriage Bolt M6 X 1.0 X 16

207761644

$2.11

27

Warning Decal

516005525

Unavailable

28

Hose

507032535

$46.49

30

Elastic Stop Nut M6

232561414

$0.55

29a

Clamp

293650256

$5.49

29b

Open Clamp

518321570

$7.69

8a

Clamp And Screw Kit

507032477

$23.99

8b

Hex. Flange Screw M6 X 25

250000447

$2.11
