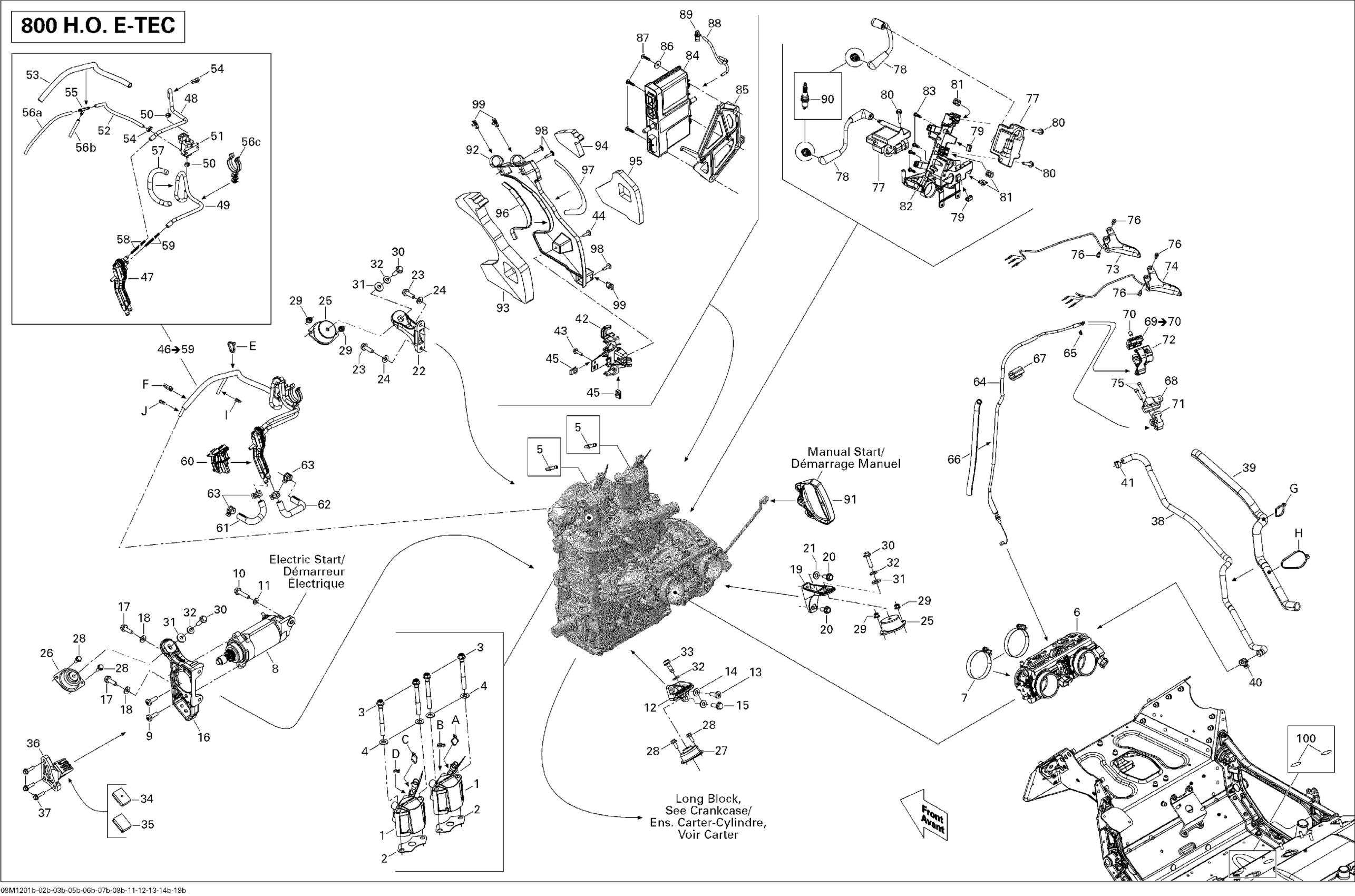

Ski-Doo Freeride 154 800R E-TEC (Racing), 2012 01- Engine Diagram

#

Description
Price

1

Fuel Injector | Includes 13 to 16

512061054

$339.99

2

Gasket

420430930

$4.99

3

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

4

Flat Washer 10 mm

234001410

$1.26

5

Hose Nipple

420924724

$14.83

6

Throttle Body

420889202

$1.00

7

GEMI CLAMP - Call your local BRP dealership | 800RE

508000007

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Rear Support, PTO

512060478

$31.99

13

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

14

Conical Spring Washer M8

234281474

$1.48

15

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

16

Front Support, PTO

512060714

$90.99

17

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

18

Conical Spring Washer M8

234281474

$1.48

19

Rear Support, MAG

512060559

$31.99

20

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

21

Conical Spring Washer M8

234281474

$1.48

22

Front Support, MAG

512060469

$31.99

23

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

24

Conical Spring Washer M8

234281474

$1.48

25

Rubber Mount

512060729

$65.99

26

Rubber Mount

512060387

$46.99

27

Rubber Mount

512060448

$51.99

28

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

31

Yellow, Washer

503183200

$3.19

32

Conical Spring Washer M8

234281474

$1.48

33

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

34

Not Available As Spare Parts

XXX

Unavailable

35

Stopper

512060766

$10.33

36

Stopper Support

512060576

$29.49

37

Hex. Flange Screw M6 X 25

207562544

$1.69

38

FORMED HOSE, OUTPUT - Call your local BRP dealership | 800RE Except GSX

512060741

Unavailable

39

Tubing 16 Mm 1000Mm Long

219704408

$7.49

40

Norma Spring Clamp

293650214

$15.89

41

Oetiker Clamp

293650046

$2.89

42

Solenoid Support

512060298

$14.22

43

Hex.Flange Screw M5 X 20

207652044

$1.90

44

Torx Screw M5 X 20

250000528

$2.11

45

Panel Nut M5 X 0.8

250000958

$4.23

46

Manifold Ass'y | Includes 46 to 59

512060725

Unavailable

47

Manifold

512060692

$45.99

48

Polyurethane Hose 10000Mm Long

219704410

$56.99

49

Polyurethane Hose 10000Mm Long

219704410

$56.99

50

Oetiker Gear Clamp

293650043

$3.39

51

Solenoid Valve

270600005

$116.49

52

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

53

Was 409901700 Tubing (9 mm)

219704399

$84.99

54

Tie Wrap 94 mm | 4X4

293750001

$1.03

55

T-Fitting

293710068

$8.29

56a

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

56b

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

56c

HOSE SUPPORT - Call your local BRP dealership

512060762

Unavailable

57

Tubing 10 MM 1000MM Long

219704407

$2.79

58

SPRING - Call your local BRP dealership

512060806

Unavailable

59

SPRING - Call your local BRP dealership

512060807

Unavailable

60

Manifold Support

512060822

$11.60

61

LH Formed Hose

512060695

$8.29

62

RH Formed Hose

512060694

$8.29

63

Norma Spring Clamp

293650214

$15.89

64

Throttle Cable

512060667

$59.49

65

Circlip

414274500

$0.90

66

Was 409901700 Tubing (9 mm)

219704399

$84.99

67

Protector

512060313

$10.33

68

Upper Housing | FREERIDE

512059969

$86.99

69

Not Available As Spare Parts

XXX

Unavailable

70

Not Available As Spare Parts

XXX

Unavailable

71

Lower Housing

512059537

$74.99

72

Not Available As Spare Parts

XXX

Unavailable

73

Throttle Handle Ass'y

512061252

$124.99

74

Not Available As Spare Parts

XXX

Unavailable

75

Socket Screw M5 X 25

205052544

$1.68

76

Flange Screw

732601143

$4.12

77

Ignition Coil

512060953

$132.49

78

Ignition Cable, 177mm long

512061126

$28.49

79

Clip

710000992

$4.29

80

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

81

Nut Welded, M6

293100003

$9.12

82

Ignition Coils Support

512060888

$11.60

83

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

84

Calibrated Module

512060756

$749.99

85

Calibrated Module Support

512060858

$14.22

86

Flat Washer

250200040

$1.90

87

Truss Head Torx Screw K50 X 20

250000297

$2.11

88

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

89

Male Connector

414814100

$2.22

90

Spark Plug NGK PFR7AB | 800-TEC This part replaces 512060553.

415129484

$30.49

91

Starter Grip

512060136

$14.83

92

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

93

Interior Noise Foam

512060343

$20.99

94

Upper Exterior Noise Foam

512060344

$10.33

95

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

96

Heat Shield

512060574

$7.79

97

Heat Shield

512060575

$8.59

98

Torx Screw M5 X 20

250000528

$2.11

99

Panel Nut M5 X 0.8

250000958

$4.23

100

Adhesive Patch

518325560

$4.69

A

Tie Wrap 94 mm | 4X4

293750001

$1.03

B

Tie Wrap 94 mm | 4X4

293750001

$1.03

C

Tie Wrap 94 mm | 4X4

293750001

$1.03

D

Tie Wrap 94 mm | 4X4

293750001

$1.03

E

Tie Wrap 94 mm | 4X4

293750001

$1.03

F

Tie Wrap 94 mm | 4X4

293750001

$1.03

G

Tie-Rap 180 mm

414115200

$0.11

H

Tie Wrap 368 mm

293750008

$1.04

I

Tie Wrap 94 mm | 4X4

293750001

$1.03

J

Tie Wrap 94 mm | 4X4

293750001

$1.03
