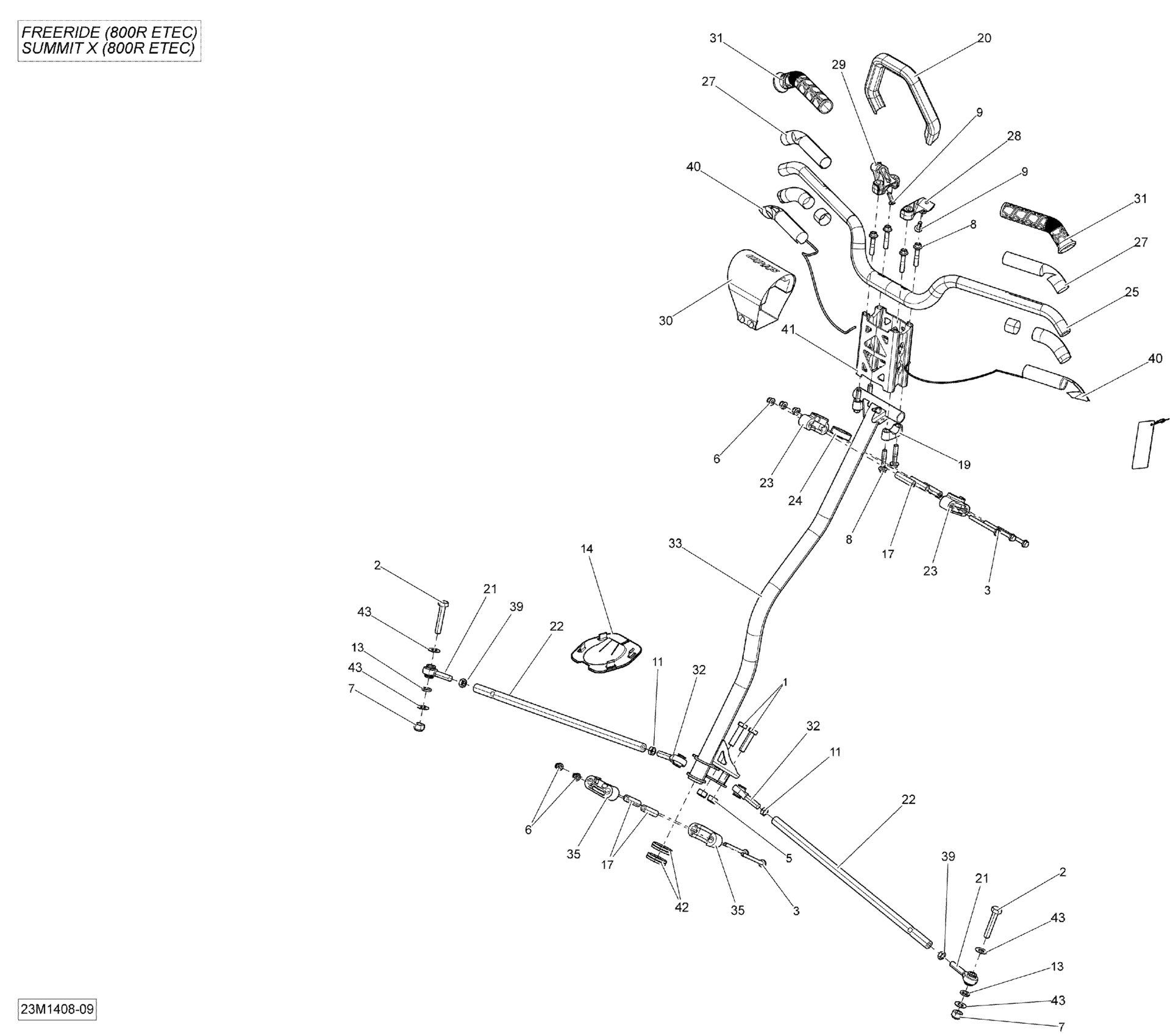

Ski-Doo FREERIDE 137, 800RE XM RS, 2014 07- Steering Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

2

Hex Screw M10 X 1.5 X 55

207005554

$7.51

3

Hex. Flange Screw M6 X 70

207667056

$4.44

5

Elastic Stop Nut M10

232500416

$1.90

6

Elastic Flange Nut M6 X 1.0

233261416

$2.11

7

Elastic Locking Nut M10

233601466

$2.11

8

Hex. Flange Screw M8 X 40

250000352

$3.38

9

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

11

LH Threaded Hex. Jam Nut M10

250100016

$0.74

13

Washer

503192496

$0.77

14

Plate

506152163

$12.99

17

Housing Bushing

506152297

$12.99

19

Steering Support | Includes 40 to 40a

506152751

$13.99

20

Moulding Strap

506152460

$67.99

21

RH Threaded Ball Joint

506152019

$41.49

22

Tie-Rod

506152498

$38.99

23

Upper Half-Housing

506152508

$9.23

24

Upper Anti-Vibration Gasket

506152509

$4.79

25

Manta Green Handle Bar

506152802

$148.49

27

Thermal Insulation

506153176

$6.09

28

Steering Support

506152555

$37.99

29

Steering Support

506152556

$37.99

30

Steering Pad | Package Extreme

506152717

$70.99

31

Grip 148mm

506152560

$16.88

32

LH Thread Ball Joint

506152081

$41.49

33

Steering Column

506152962

$199.99

35

Lower Half-Housing | Package XRS

506152588

$12.58

39

RH Threaded Hex. Jam Nut M10

732610010

$0.74

40

Heating Element 32 Watt 3 Wires

506152798

$52.99

41

WHITE HANDLEBAR EXTENSION - Call your local BRP dealership | Model-Orange-Orange

506152805

Unavailable

42

Lower Vibration Ring

506152518

$4.79

43

Washer

506152582

$4.55
