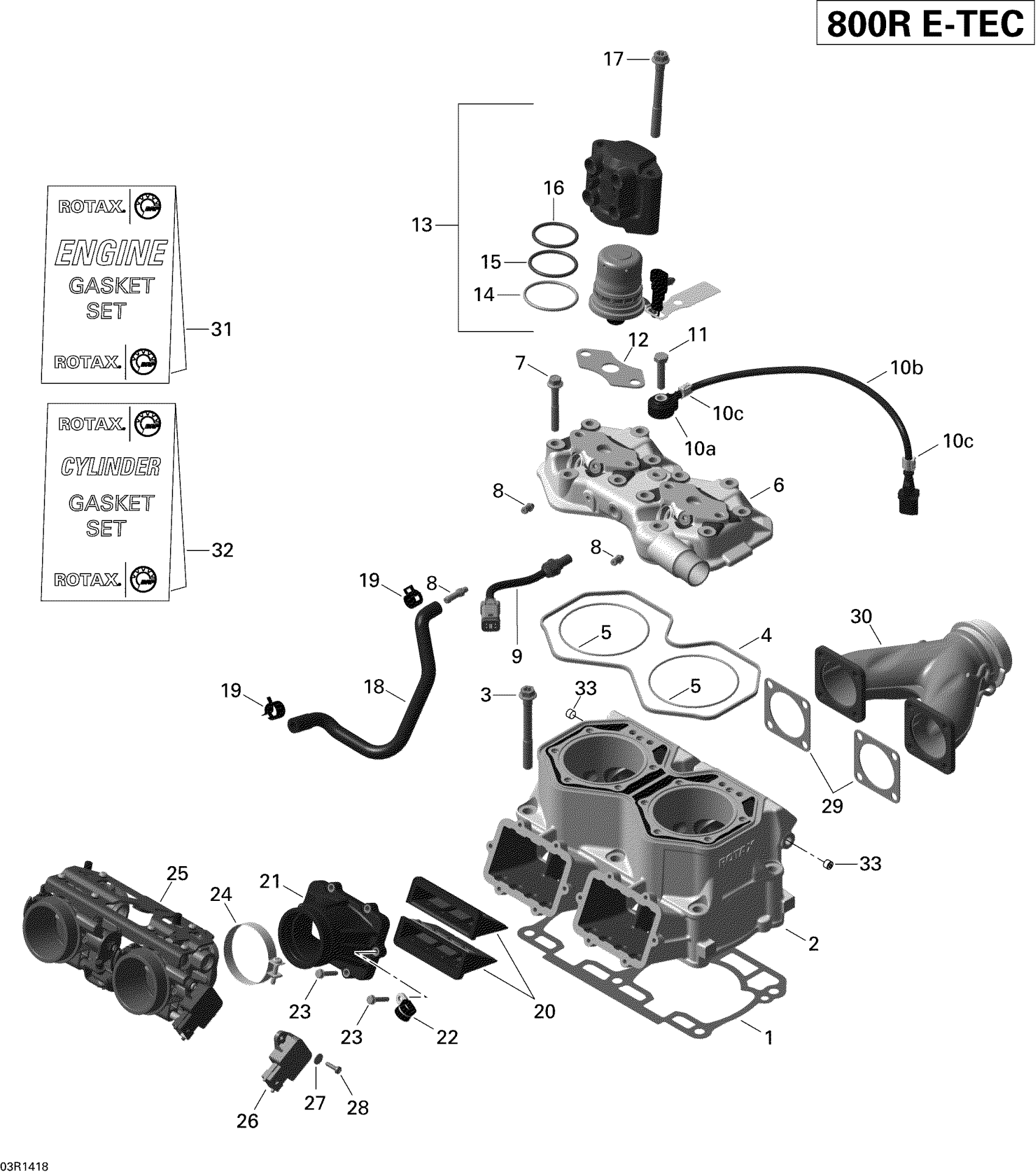

Ski-Doo FREERIDE 137, 800RE XM RS, 2014 Cylinder And Injection System Diagram

#

Description
Price

1

Double Gasket 0.5 mm

420430080

$25.35

1

Double Gasket 0.6 mm

420430081

$27.66

1

Double Gasket 0.7 mm

420430082

$34.58

1

Double Gasket 0.8 mm

420430083

$34.58

1

Double Gasket 0.9 mm

420430084

$19.20

2

Cylinder

420413041

$929.99

2

Cylinder

420413041

$929.99

3

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.66

4

O-Ring

420430040

$5.69

5

O-Ring | Included in gasket kit

420931410

$2.67

6

Head Cylinder Cover

420623304

$274.99

7

Hex. Screw M8 X 56.5

420941627

$8.34

8

Hose Nipple

420924724

$12.29

9

Temperature Sensor This part replaces 420664508.

420664509

$142.28

10

Noise Sensor

270000484

$65.62

11

Hex. Screw M8 X 35

207083544

$0.92

12

Gasket

420430930

$4.60

13

Fuel Injector | Includes 13 to 16

512061054

$339.99

14

Crush Ring

415129497

$7.38

15

O-Ring

415129498

$12.51

16

O-Ring

415129499

$6.82

17

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.66

18

Molded Hose

420460867

$17.66

19

Clamp

420853511

$7.31

20

Reed Valve Ass'y

420924798

$39.20

21

Intake Socket

420867333

$159.20

22

Clamp

420851250

$9.31

23

Tapping Screw M5 X 22

420841550

$1.68

24

Clamp

420851815

$9.31

25

Throttle Body

420889202

$1,254.58

26

Position Sensor

420866120

$77.97

27

Flat Washer 4 mm, Stainless

234041600

$0.91

28

Phillips Screw M4 X 16

208641660

$0.74

29

Gasket

420430482

$8.23

30

Exhaust Manifold This part replaces 420673373.

420673374

$279.97

31

Gasket Set, Engine

420893500

$372.28

32

Gasket Set, Cylinder

420893505

$207.66

33

Socket Set Screw M10 x 1.25 x 10 mm

415129628

$2.06
