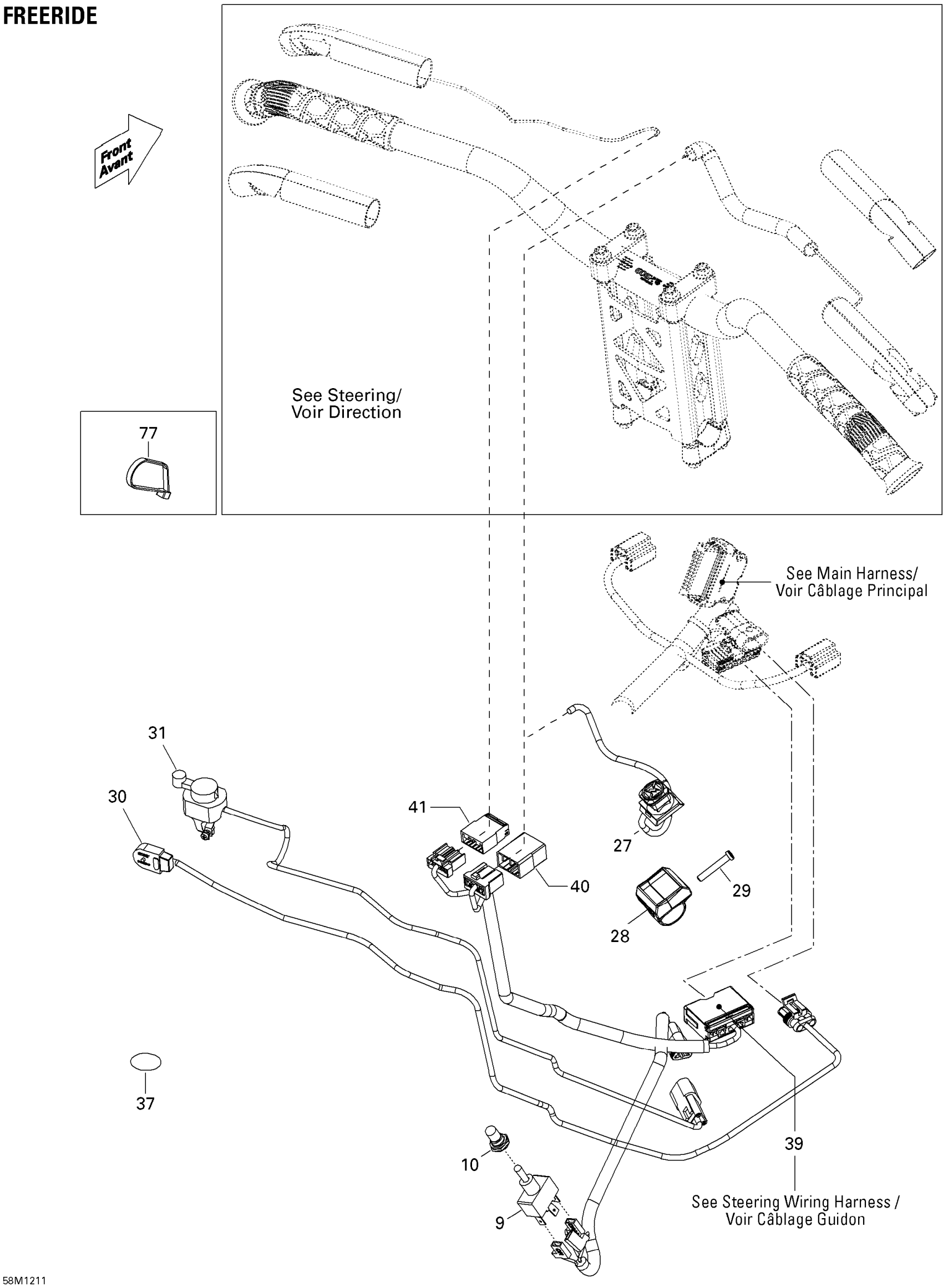

Ski-Doo Freeride 137 & 146 & 154 800RETEC XP, 2012 10- Electrical Accessories, Steering Diagram

#

Description
Price

9

Switch (Heating Grip) | FREERIDE

410107300

$35.99

10

Switch Cover

515175281

$15.99

27

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

28

Kill Switch Support

515176825

$10.49

29

Torx Screw #8-18

250000263

$1.04

30

SWITCH - Call your local BRP dealership | FREERIDE

515176987

Unavailable

31

DIMMER SWITCH - Call your local BRP dealership | FREERIDE

515177433

Unavailable

39

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership | FREERIDE

515176984

Unavailable

40

Male Terminal Housing, 8 Circuits

515175817

$8.79

41

Male Terminal Housing, 6 Circuits

515175662

$8.79

77

Tie-Rap 180 mm

414115200

$0.11

77

Tie Wrap 142 mm

293750002

$1.25

77

Tie Wrap 368 mm

293750008

$1.04

77

Tie-Rap 173 mm

293750009

$1.04
