Description

Price

1

Hex. Flange Screw M6 X 16

207661644

$0.70

2

Hex. Flange Screw M6 X 20

207662044

$1.91

3

Hex. Flange Screw M6 X 25

207662544

$0.61

4

Hex. Flange Screw M6 X 16

210261650

$1.40

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

6

Elastic Flange Nut M6 X 1.0

233261416

$2.00

8

Hex. Flange Elastic Nut M8

233281414

$1.31

10

Stavex Rivet

293150144

$0.75

13

Hex. Flange Screw M6 X 20

207662044

$1.91

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

18

Monobolt Rivet 6.4

293150182

$2.82

20

Monobolt Rivet, 4.8 mm

293150191

$0.93

22

DART 8 MM, WHITE - Call your local BRP dealership | Package Burton

293730054

Unavailable

23

Full Moon Dart 5 mm

293730042

$2.06

24

Pop Rivet 3/16"

390402400

$0.28

26

Front Member

518327565

$306.69

27

Upper Lateral Column Support

518325114

$20.12

28

Center Column Support

518325115

$20.12

31

Rear Member

518326559

$237.28

33

Front Suspension Support

518327487

$259.67

36

Cross Member S Module | Package Iron Dog

518328322

$426.09

45

Driven Pulley Support This part replaces 518327133.

518327460

$99.22

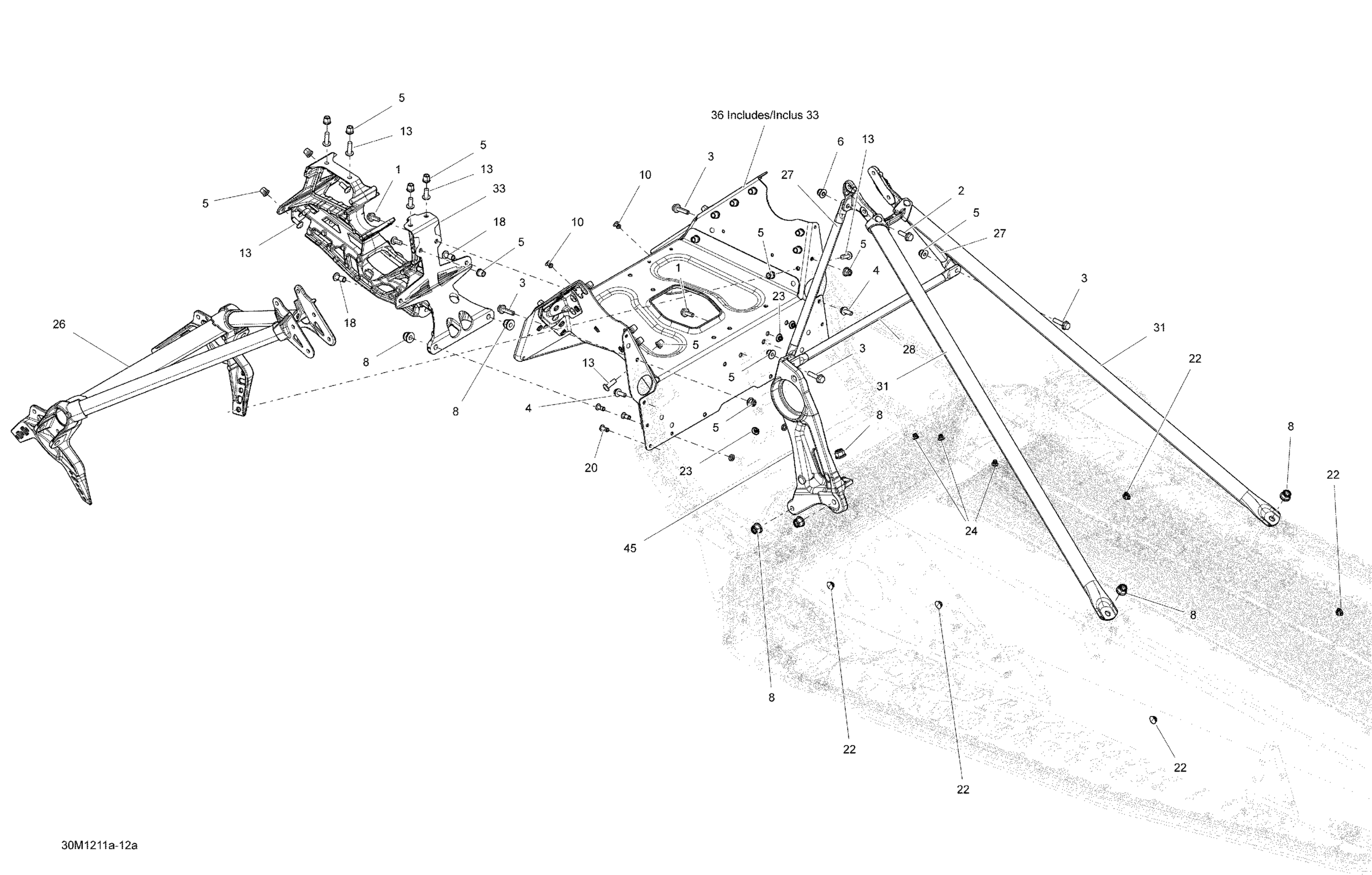

Ski-Doo Freeride 137 & 146 & 154 800RETEC XP, 2012 Frame Common Parts Diagram

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0

Elastic Flange Nut M6 X 1.0

Hex. Flange Elastic Nut M8

Stavex Rivet

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Monobolt Rivet 6.4

Monobolt Rivet, 4.8 mm

DART 8 MM, WHITE - Call your local BRP dealership | Package Burton

Full Moon Dart 5 mm

Pop Rivet 3/16"

Front Member

Upper Lateral Column Support

Center Column Support

Rear Member

Front Suspension Support

Cross Member S Module | Package Iron Dog

Driven Pulley Support This part replaces 518327133.
