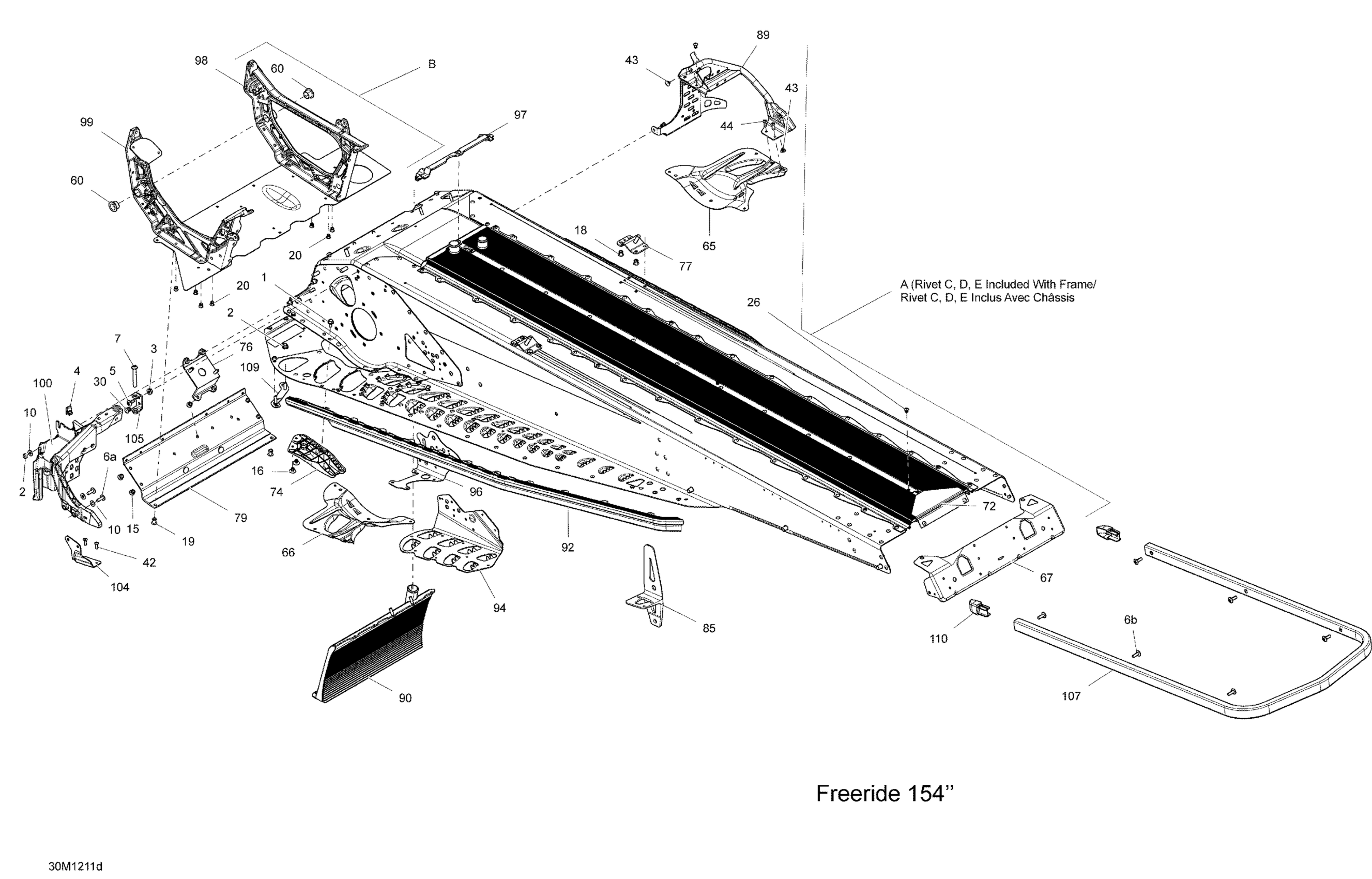

Ski-Doo Freeride 137 & 146 & 154 800RETEC XP, 2012 Frame 154" Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

2

Elastic Stop Nut M6

232561414

$1.55

3

Hex. Flange Nut M6

233061414

$1.34

4

Panel Nut M5 X 0.8

250000958

$3.48

5

Tork Screw M6 X 16

250000534

$1.74

7

Torx Screw M8 X 55

250000535

$2.63

10

Flat Washer

250200039

$0.72

15

Hemlock Rivet, 6.5 mm

293150119

$4.00

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

18

Hemlock Rivet, 6.5 mm

293150119

$4.00

19

Hemlock Rivet 6.5 mm

293150120

$7.23

20

Stavex Rivet

293150144

$0.77

26

Stavex Rivet

293150144

$0.77

30

Ornit Rivet 6,5 X 14.5

293150266

$1.94

42

Interlock Rivet 3/16''

293150194

$1.02

43

Full Moon Dart 5 mm

293730042

$2.12

44

Pop Rivet 3/16”

390407200

$0.66

60

Leg Bushing

505072690

Unavailable

65

RH Reinforcement

518324874

$25.35

66

LH Reinforcement

518324875

$25.35

67

Rear Cap

518327105

$20.74

72

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$699.97

74

RH Deflector, Black Polypropylene

518325782

$11.77

74

LH Deflector, Black Polypropylene

518325783

$11.77

76

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

77

RH Rear Base

518325973

$18.43

77

LH Rear Base | Includes 10v to 10x

518325974

$18.43

79

Front Member

518326198

$59.97

85

RH Suspension Bracket

518324976

$39.97

85

LH Suspension Bracket

518324977

$40.74

89

RH Stirup | Includes 10aa to 10ab

518328938

$166.12

90

Front Radiator | Includes 10b to 10b2

518326485

$434.58

92

RH ROLLER - Call your local BRP dealership

518326601

Unavailable

92

LH Roller

518326602

Unavailable

94

CHASSIS KIT - Call your local BRP dealership | Includes 1470a to 1470e This part replaces 860200522.

860200813

Unavailable

96

RH Front Suspension Retainer | Package Iron Dog

518326616

$39.97

96

LH Front Suspension Retainer | Package Iron Dog

518326617

$39.97

97

Seal

518326656

$8.43

98

RH Member

518326795

$259.97

99

LH Member

518326796

$210.74

100

LH Stirup

518326820

$36.89

104

Support

518326960

$9.71

105

U-Attach

518326961

$8.45

107

Black Rear Bumper, 154" | Vehicle 154" North America

518326049

$111.51

109

Attach | Includes 10n to 10p

518326986

$9.71

110

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$7.68

6a

Tork Screw M6 X 18

250000536

$2.06

6b

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

A

FRAME FREERIDE 154'' - Call your local BRP dealership

415129637

Unavailable

B

E Module | Includes 10n to 10at

518327567

$428.43

C

Avex Rivet

390909200

$0.29

D

Avex Rivet

390909100

$0.29

E

Stavex Rivet

293150144

$0.77
