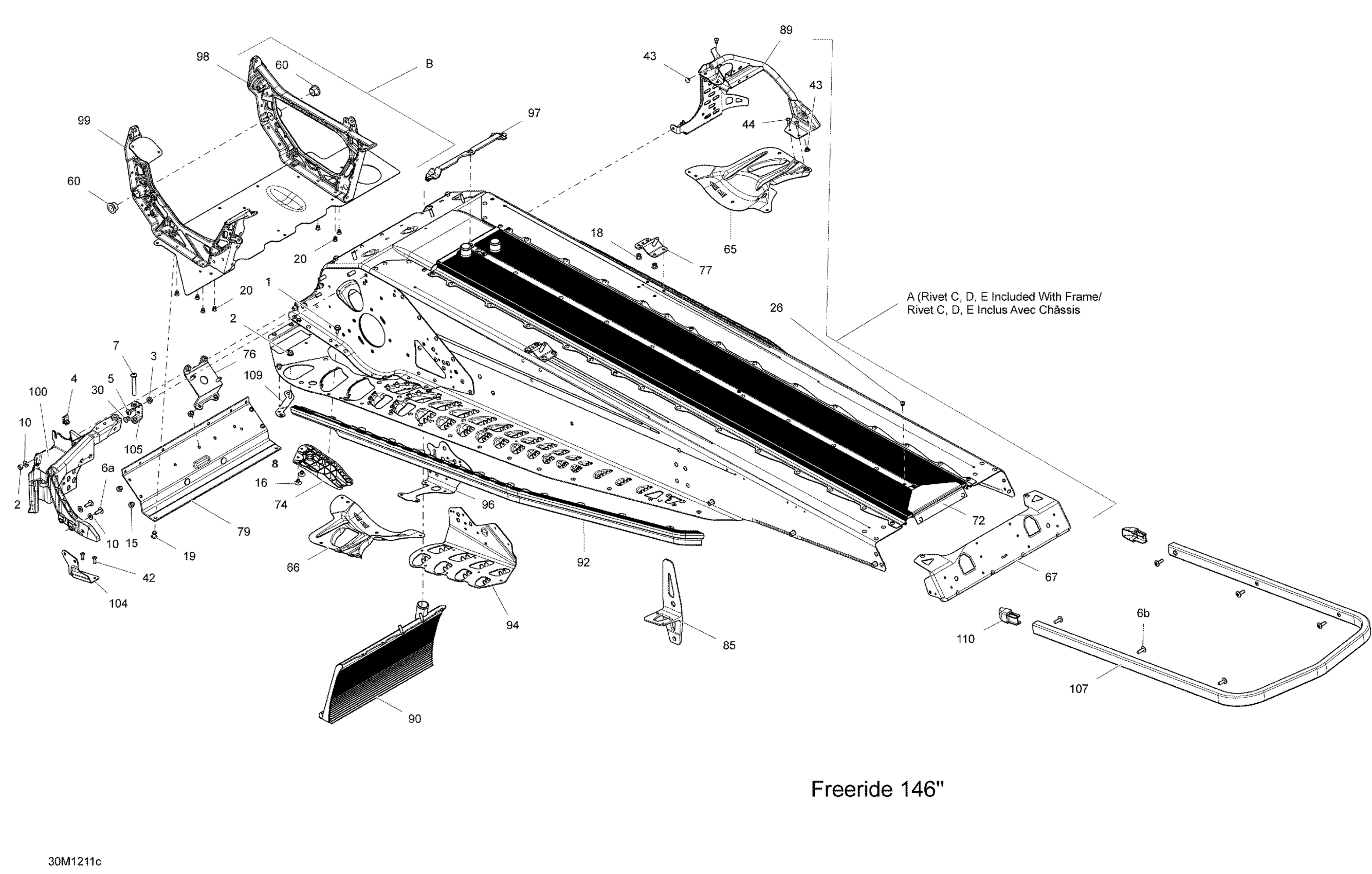

Ski-Doo Freeride 137 & 146 & 154 800RETEC XP, 2012 Frame 146" Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

2

Elastic Stop Nut M6

232561414

$1.78

3

Hex. Flange Nut M6

233061414

$1.54

4

Panel Nut M5 X 0.8

250000958

$4.00

5

Tork Screw M6 X 16

250000534

$2.00

7

Torx Screw M8 X 55

250000535

$3.01

10

Flat Washer

250200039

$0.70

15

Hemlock Rivet, 6.5 mm

293150119

$3.88

16

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

18

Hemlock Rivet, 6.5 mm

293150119

$3.88

19

Hemlock Rivet 6.5 mm

293150120

$7.01

20

Stavex Rivet

293150144

$0.75

26

Stavex Rivet

293150144

$0.75

30

Ornit Rivet 6,5 X 14.5

293150266

$1.88

42

Interlock Rivet 3/16''

293150194

$0.99

43

Full Moon Dart 5 mm

293730042

$2.06

44

Pop Rivet 3/16”

390407200

$0.64

60

Leg Bushing

505072690

$5.75

65

RH Reinforcement

518324874

$24.60

66

LH Reinforcement

518324875

$24.60

67

Rear Cap

518327105

$20.12

72

REAR RADIATOR ASS'Y, 146 - Call your local BRP dealership | Includes 10bk to 10bp

518326728

Unavailable

74

RH Deflector, Black Polypropylene

518325782

$11.42

74

LH Deflector, Black Polypropylene

518325783

$11.42

76

MAG Engine Support | Includes 10a to 10a1

518325943

$25.34

77

RH Rear Base

518325973

$17.88

77

LH Rear Base | Includes 10v to 10x

518325974

$17.88

79

Front Member

518326198

$58.18

85

RH Suspension Bracket

518324976

$38.78

85

LH Suspension Bracket

518324977

$39.52

89

RH Stirup | Includes 10aa to 10ab

518328938

$155.94

90

Front Radiator | Includes 10b to 10b2

518326485

$421.61

92

RH ROLLER - Call your local BRP dealership

518326601

Unavailable

92

LH Roller

518326602

Unavailable

94

CHASSIS KIT - Call your local BRP dealership | Includes 1470a to 1470e This part replaces 860200522.

860200813

Unavailable

96

RH Front Suspension Retainer | Package Iron Dog

518326616

$38.78

96

LH Front Suspension Retainer | Package Iron Dog

518326617

$38.78

97

Seal

518326656

$8.18

98

RH Member

518326795

$252.21

99

LH Member

518326796

$204.45

100

LH Stirup

518326820

$35.04

104

Support

518326960

$9.42

105

U-Attach

518326961

$8.19

107

Black Rear Bumper, 146" | Vehicle 146" North America

518326599

$114.15

109

Attach | Includes 10n to 10p

518326986

$9.42

110

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$7.45

6a

Tork Screw M6 X 18

250000536

$2.00

6b

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

A

FRAME FREERIDE 146'' - Call your local BRP dealership

415129636

Unavailable

B

E Module | Includes 10n to 10at

518327567

$415.64

C

Avex Rivet

390909200

$0.28

D

Avex Rivet

390909100

$0.28

E

Stavex Rivet

293150144

$0.75
