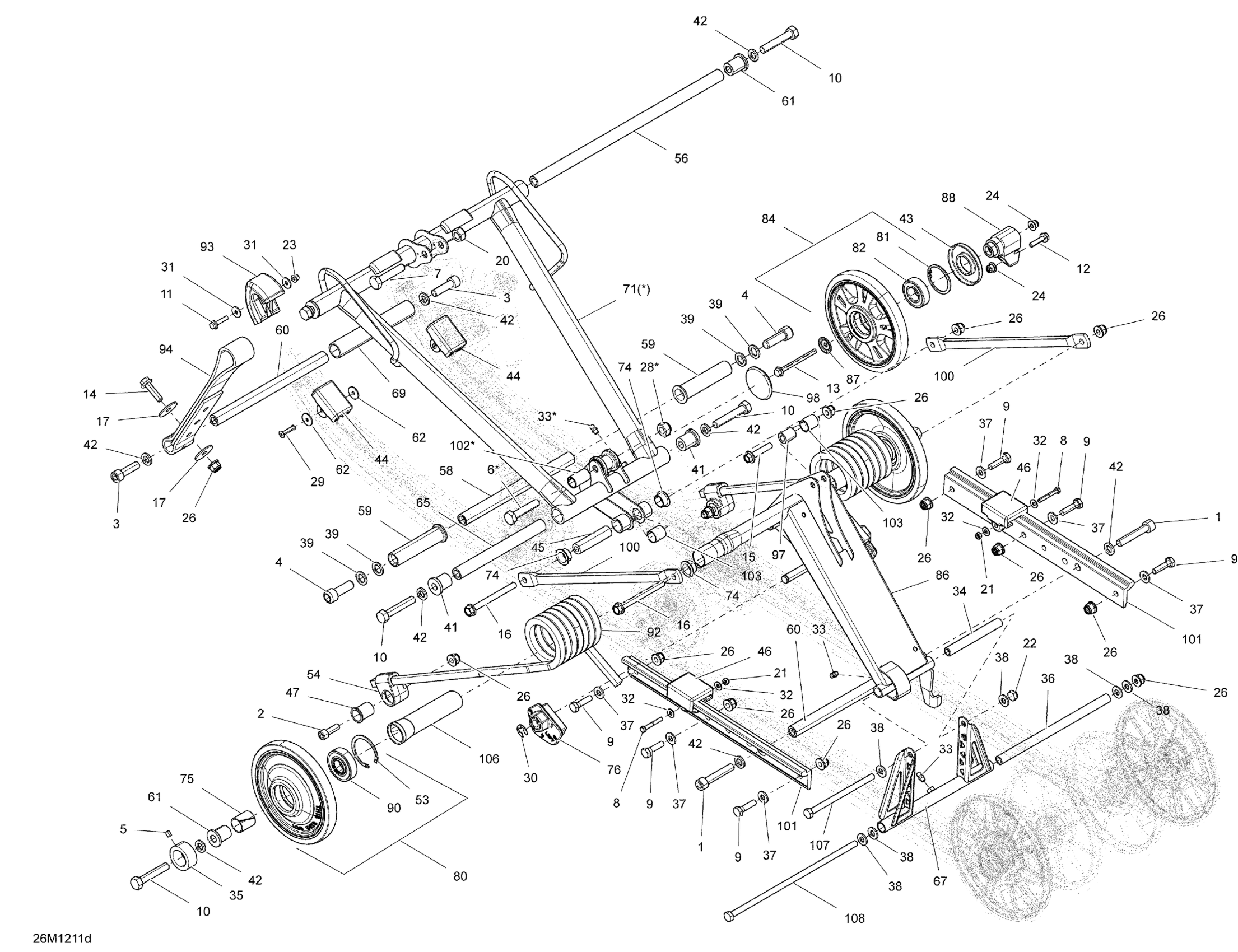

Ski-Doo Freeride 137 & 146 & 154 800RETEC XP, 2012 Rear Suspension Common Parts 146,154 Diagram

#

Description
Price

1

SOCKET SCREW M10 X 35 - Call your local BRP dealership

250000478

Unavailable

2

Socket Head Screw M8 X 25

205082544

$0.92

3

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

4

Socket Screw M12 X 35

250000484

$6.18

5

Socket Set Screw M6 X 8

206260844

$1.25

6

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

7

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

8

Hex. Cap Screw M5 X 35

250000483

$5.22

9

HEX. CAP SCREW FULL THREAD M8 X 30 - Call your local BRP dealership

250000482

Unavailable

10

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

250000469

Unavailable

11

Hex. Flange Screw M5 X 25

207652544

$0.42

12

Hex Flange Screw M6 x 25

250000522

$4.28

13

Hex. Flange Screw M6 X 70

250001027

$1.74

14

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

15

Hex. Flange Screw M8 X 40

207684044

$1.25

16

Hex. Flange Screw

207688544

$1.68

17

Flat Washer

224081301

$0.86

20

Elastic Locking Nut M10 X 1.5

233601416

$1.68

21

Elastic Stop Nut M5

232551414

$0.72

22

Hex. Elastic Stop Nut M8

232581414

$0.47

23

Hex. Flange Elastic Nut M5

233251414

$1.66

24

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

26

Hex. Flange Elastic Nut M8

233281414

$1.14

28

Elastic Locking Nut M10 X 1.5

233601416

$1.68

29

Pop Rivet 3/16"

293150142

$2.11

30

E-Circlip

293370013

$0.62

31

Washer | DS 650 X

391301600

$0.48

32

WASHER - Call your local BRP dealership

503192493

Unavailable

33

Grease Fitting

408200700

$2.80

34

Upper Axle, Pivot Arm

503144300

$11.98

35

Retaining Ring

503168800

$12.65

36

Pivot Arm Axle

503189156

$20.74

37

Washer

503192494

$3.11

38

Washer

503192494

$3.11

38

Washer

503189157

$3.20

39

Washer

503192491

$4.38

41

Bushing

503189324

$11.17

42

Washer

503189564

$0.72

42

Washer

503192496

$0.75

43

Labyrinth Seal

503190434

$5.85

44

Rubber Stopper

503190576

$10.23

45

Axle Bar (Long)

503190643

$15.35

46

RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership

503190741

Unavailable

47

Spring Support Kit

861805547

$8.14

53

Retaining Ring

415129371

$8.92

54

Spring Support Kit

861805547

$8.14

56

Upper Shaft

503191215

$36.12

58

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

59

Center Bushing

503191259

$8.97

60

Axle Strap

503191260

$29.20

61

Bushing

503191262

$13.60

62

Washer

503191273

$1.06

65

Lower Shaft

503191279

$27.66

67

Pivot Arm | Includes 3000j to 3000j3

503191209

$118.43

69

Spacer

503191448

Unavailable

71

Front Arm Ass'y | XP

503193463

$147.66

74

Swivel Bushing

503191555

$5.71

75

Extended Bushing

503191556

$5.71

76

LH Cam Adjuster

503191565

$13.95

76

RH Cam Adjuster

503191566

$13.95

80

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$46.12

81

Retaining Ring

415129371

$8.92

82

Ball Bearing | Package-STD

503190396

$7.12

84

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$46.12

86

Rear Arm | Includes 3000a to 3000a7

503192464

$193.82

87

Wheel Cup M6

503191820

$4.66

88

Casted Support

503193894

$12.75

90

Ball Bearing

503193548

$16.89

92

Black, LH Spring Square

503193158

$77.66

92

Black, RH Spring Square

503193159

$77.66

93

Runner Protector

503192299

$23.82

94

Stopper Strap

503192360

$19.97

97

Axle Shock Absorber

503196509

$11.98

98

Black, Wheel Cap

503192771

$2.28

100

Acceleration Link Rod

503192900

$27.66

101

Black Runner Reinforcement

503193853

$53.82

102

Bushing

503193037

$15.35

103

Leg Cushion

505072663

$7.40

106

Bushing

572080700

$15.26

107

Bolt M8, Short

732601197

$15.06

108

Bolt M8 X 248mm

503192440

$29.97
