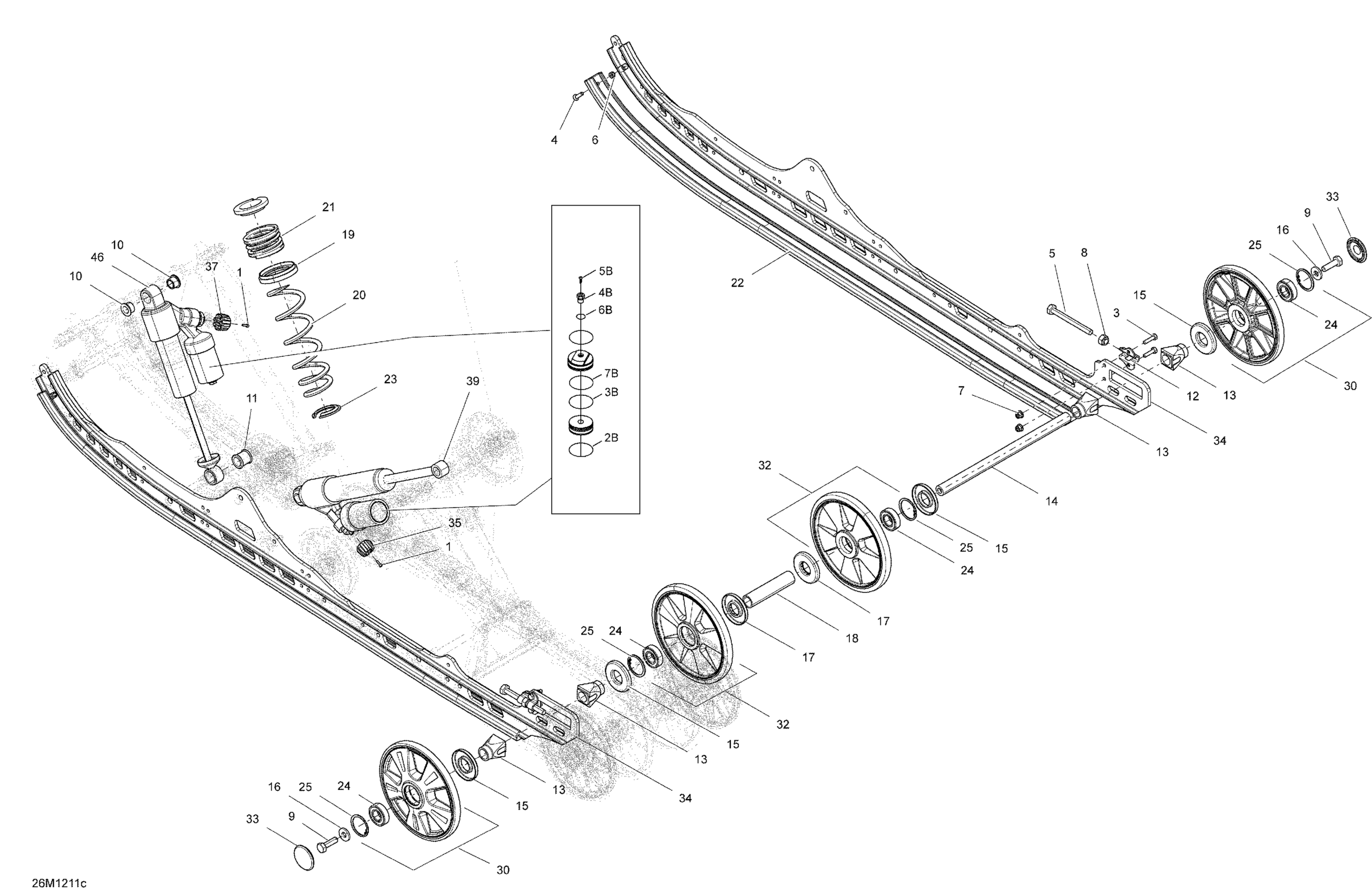

Ski-Doo Freeride 137 & 146 & 154 800RETEC XP, 2012 Rear Suspension Base 146,154,Shock Diagram

Allen Screw M3 X 0.5 X 10

250000644

$2.00

HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership

250000479

Unavailable

Phillips Screw M6 X 25

208562531

$2.00

Hex Screw M10 x 100

230100054

$6.07

Elastic Stop Nut M6

232561414

$1.78

Elastic Flange Nut M6 X 1.0

233261416

$2.00

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

Hex. Screw With Nylon

250000019

$1.63

Urethane Bushing

503189117

$6.67

Bushing

503189271

$10.15

Tensioner

503192583

$5.67

Rear Wheel Spacer

503190428

$5.88

Rear Axle

503190429

$58.18

Labyrinth Seal

503190434

$4.16

Washer

503190439

$5.64

Labyrinth Seal

503190682

$5.67

Rear Spacer

503191263

$14.90

Spring Spacer

503192743

$12.27

Black, Spring (162mm) Long

503193065

$69.37

Black, Spring (52mm) Short

503193479

$85.79

Black, Slider 146

503191499

$32.06

Black, Slider 154

503191198

$32.06

Spring Stopper

503194270

$16.39

Ball Bearing | Package-STD

503190396

$8.18

Retaining Ring

415129371

$8.66

Wheel 200, Black | Includes 600 to 600b

503191741

$48.48

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$48.48

Black, Wheel Cap

503192771

$2.21

RUNNER 146'', GOLD - Call your local BRP dealership

503193021

Unavailable

RAIL_SUSPENSION 154 B-320 - Call your local BRP dealership

503193022

Unavailable

Shock Adjuster Knob

503193033

$7.36

Shock Adjuster Knob

503193033

$7.36

Rear Shock | Includes 5500 to 5500j

503192964

$877.49

CENTER SHOCK - Call your local BRP dealership

503192783

Unavailable

O-Ring

415093807

$33.55

Piston Ring | Not Shown

415093806

$14.52

Air Valve

505070398

$17.13

Screw | Not Shown

505070399

$3.88

O-Ring

505070400

$4.25

O-Ring

415093804

$4.25
