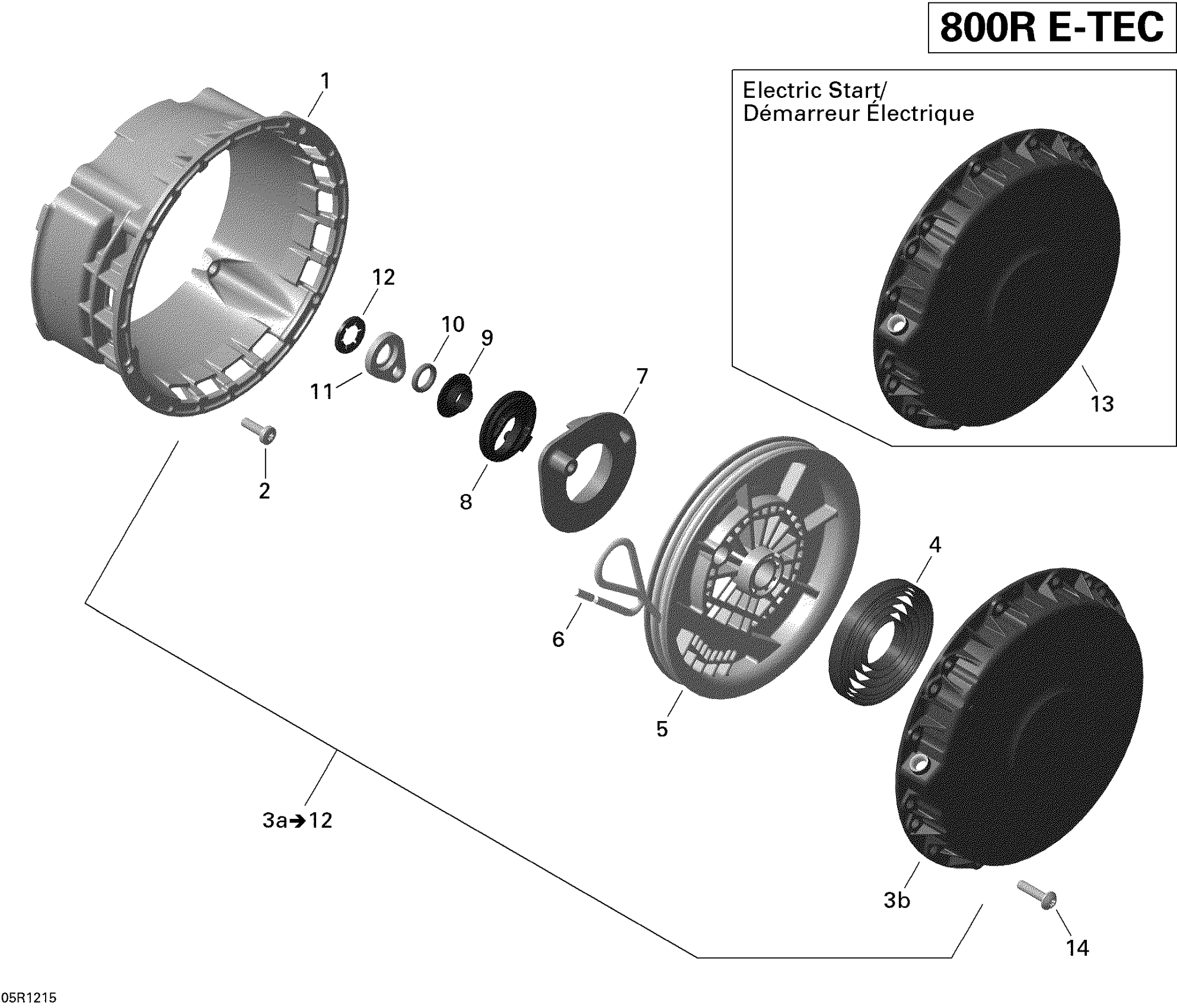

Ski-Doo Freeride 137 & 146 & 154 800RETEC XP, 2012 04- Rewind Starter Diagram

#

Description

Price

1

Flange Connector

420812941

$74.99

2

Torx Flange Screw M6 X 20

420441386

$2.11

3a

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$174.49

3b

Starter Housing | Manual Start

420910255

Unavailable

4

Rewind Spring

420939115

$30.49

5

Rope Sheave

420852288

$41.49

6

Was 412500100 Rope-Starter

219704403

$158.99

7

Pawl

420852633

$33.99

8

Pawl Lock | Includes no. 8-9

420852640

$6.99

9

Stage Sleeve

420847926

$16.33

10

O-Ring

420250407

$1.90

11

Lock Ring

420852520

$9.27

12

Locking Element

420845560

$2.11

13

Cover | Electrical Start

420910254

$35.99

14

Plastite Screw

420940431

$7.65
