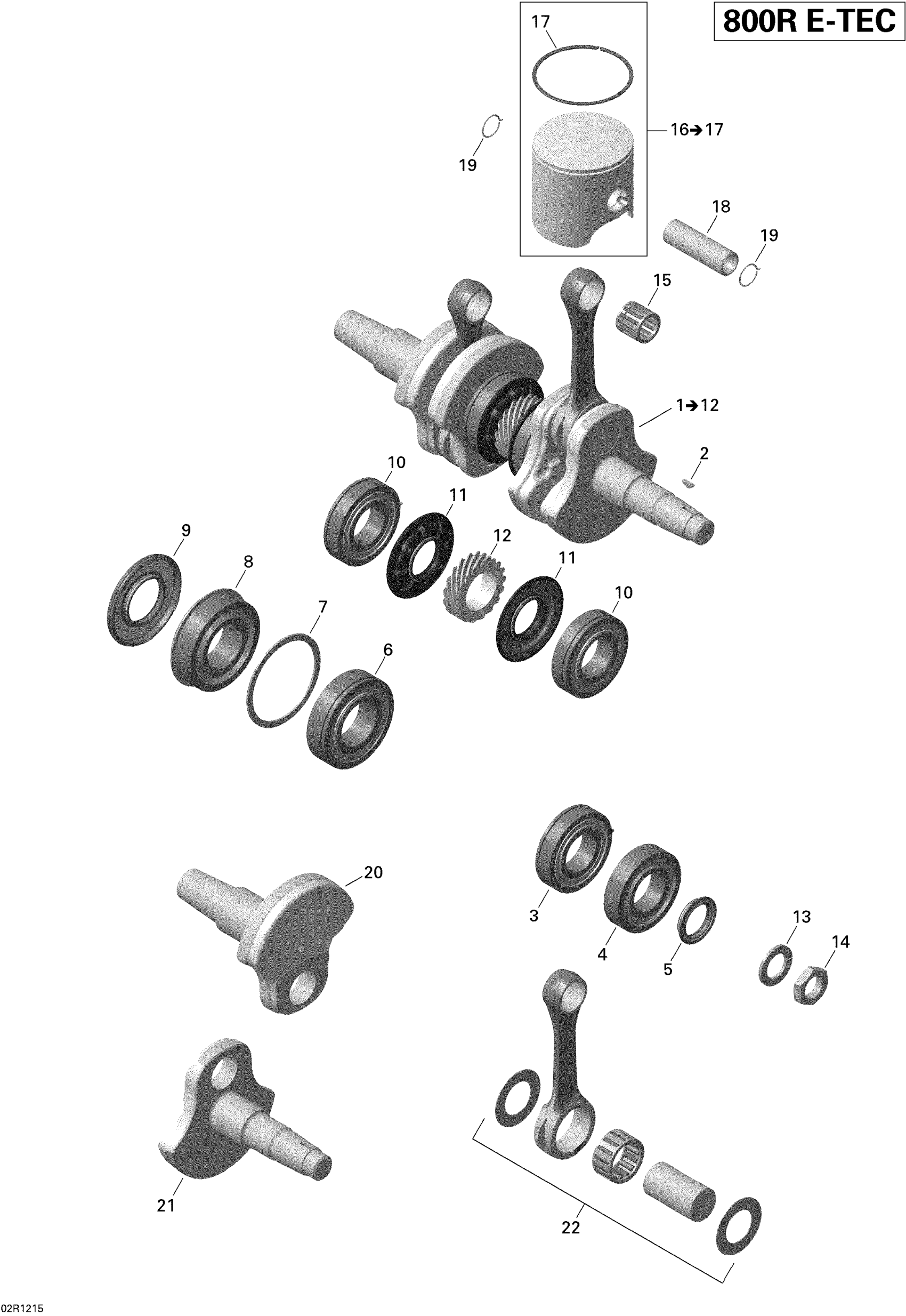

Ski-Doo Freeride 137 & 146 & 154 800RETEC XP, 2012 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 12

420893097

$1,359.99

2

Woodruff Key

420246015

$3.11

3

Ball Bearing

420832175

Unavailable

4

Ball Bearing 6207 | With drive pin

420832575

$50.74

5

Oil Seal

420931795

$16.89

6

Ball Bearing | With drive pin

420832602

$96.89

7

Washer

420926190

$9.37

8

Ball Bearing | With drive pin

420832702

$86.12

9

Oil Seal | Included in gasket kit

420931284

$23.05

10

Ball Bearing

420832175

Unavailable

11

Oil Seal

420931455

$34.58

12

CENTRAL GEAR - Call your local BRP dealership

420834565

Unavailable

13

Lock Washer, 22 mm

420945759

$1.55

14

Hex. Nut, M22 X 1.5

420842239

$14.27

15

Needle Bearing

420832030

$29.20

16

Piston Ass'y, 81.852 mm | Includes 16 to 17

420893436

$234.99

17

Semi-Trapez Ring

420815416

$76.99

18

Piston Pin

420916480

$36.99

19

Piston Circlip | Included in gasket kit

420845467

$3.74

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Rod Repair Kit, MAG Side

420892568

Unavailable

22

Rod Repair Kit, PTO Side

420892569

$319.99
