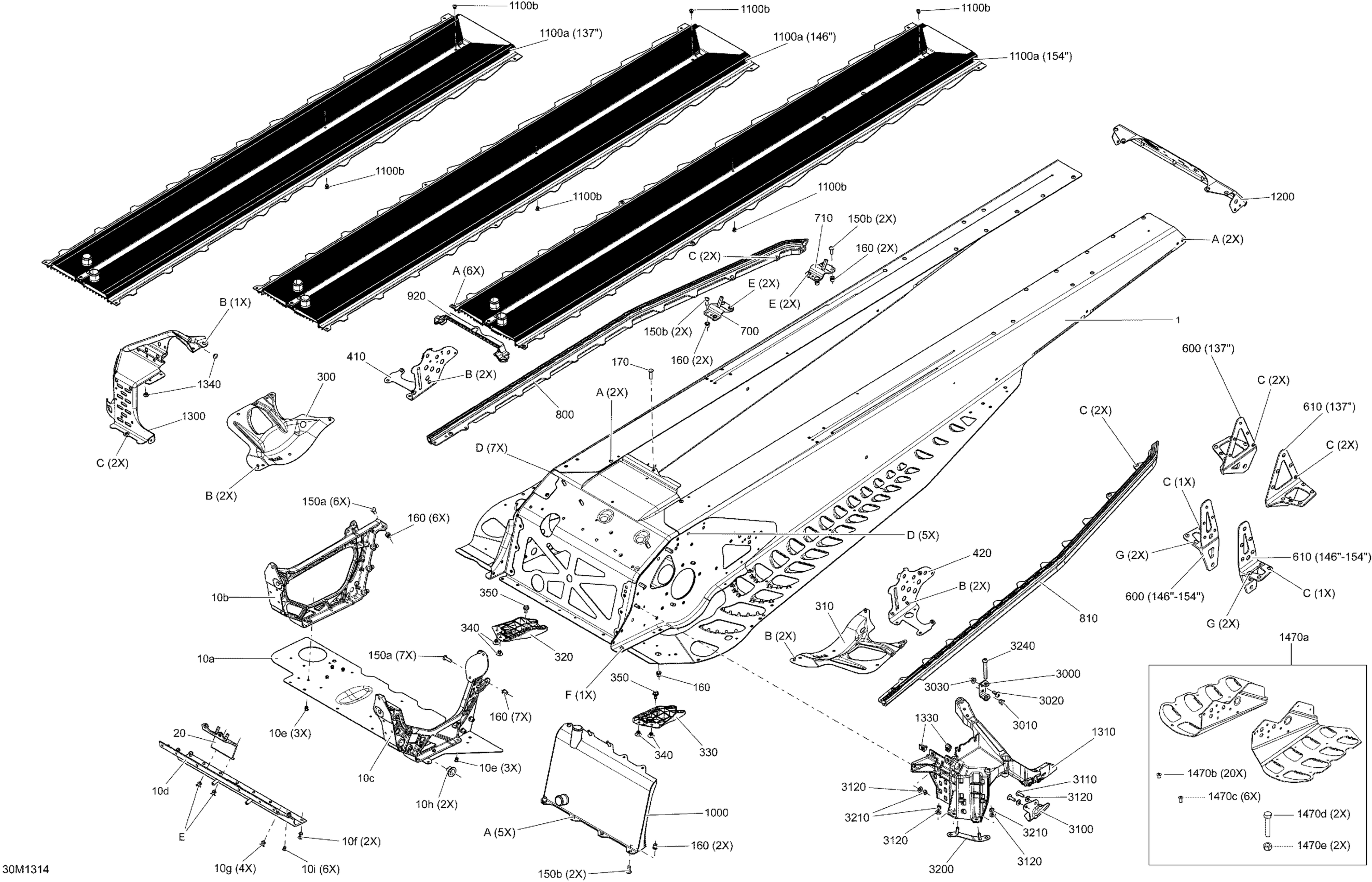

Ski-Doo FREERIDE 137, 146, 154, 800RE XP, 2013 Frame 146 Diagram

FRAME ASS'Y - Call your local BRP dealership | Includes 1 to G

415129742

Unavailable

E Module | Includes 10n to 10at

518327567

$428.43

RH Member

518326795

$259.97

LH Member

518326796

$210.74

Front Member

518326198

$59.97

Stavex Rivet

293150144

$0.77

Hemlock Rivet 6.5 mm

293150120

$7.23

Hemlock Rivet, 6.5 mm

293150119

$4.00

Leg Cushion

505073317

$5.92

Not Available As Spare Part - Friction Washer

Unavailable

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 20

207662044

$1.66

RH Reinforcement

518324874

$25.35

LH Reinforcement

518324875

$25.35

RH Deflector, Black Polypropylene

518325782

$11.77

LH Deflector, Black Polypropylene

518325783

$11.77

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

RH Front Suspension Retainer | Package Iron Dog

518326616

$39.97

LH Front Suspension Retainer | Package Iron Dog

518326617

$39.97

RH Suspension Bracket

518324976

$39.97

LH Suspension Bracket

518324977

$40.74

RH Rear Base

518325973

$18.43

LH Rear Base | Includes 10v to 10x

518325974

$18.43

RH ROLLER - Call your local BRP dealership

518326601

Unavailable

LH Roller

518326602

Unavailable

Seal

518326656

$8.43

Front Radiator | Includes 10b to 10b2

518326485

$434.58

REAR RADIATOR ASS'Y, 146 - Call your local BRP dealership | Includes 10bk to 10bp

518326728

Unavailable

Stavex Rivet

293150144

$0.77

Rear Cap

518327105

$20.74

RH Stirup | Includes 10aa to 10ab

518328938

$166.12

LH Stirup

518326820

$36.89

Panel Nut M5 X 0.8

250000958

$3.48

Full Moon Dart 5 mm

293730042

$2.12

CHASSIS KIT - Call your local BRP dealership | Includes 1470a to 1470e This part replaces 860200522.

860200813

Unavailable

Pop Rivet 3/16"

390402200

$0.26

Pop Rivet 3/16"

390402300

$0.75

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

Elastic Locking Nut M10 X 1.5

233601416

$1.68

U-Attach

518326961

$8.45

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Tork Screw M6 X 16

250000534

$1.74

Hex. Flange Nut M6

233061414

$1.34

Support

518326960

$9.71

Tork Screw M6 X 18

250000536

$2.06

Flat Washer

250200039

$0.72

Attach | Includes 10n to 10p

518326986

$9.71

Elastic Stop Nut M6

232561414

$1.55

Torx Screw M8 X 55

250000535

$2.63

Avex Rivet

390909200

$0.29

Avex Rivet

390909100

$0.29

Stavex Rivet

293150144

$0.77

Henrob Rivet

293150146

$1.92

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet, 6.4 mm

293150174

$6.43

Ornit Rivet 6,5 X 14.5

293150266

$1.94
