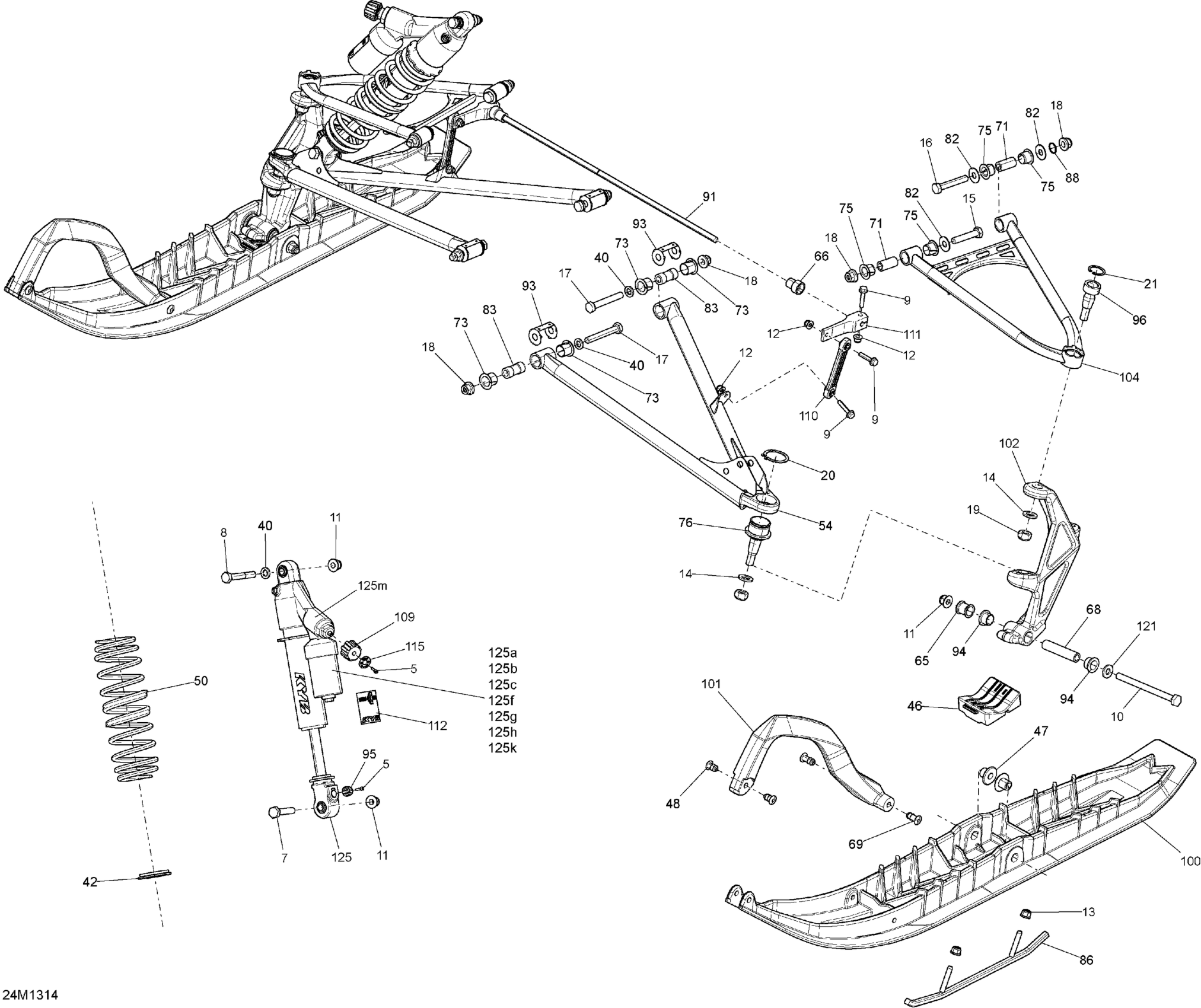

Ski-Doo FREERIDE 137, 146, 154, 800RE XP, 2013 Front Suspension And Ski Diagram

#

Description
Price

5

Allen Screw M3 X 0.5 X 10

250000644

$1.74

7

Hex Screw M10 X 1.5 X 55

207005554

$6.18

8

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

9

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

11

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

12

Hex. Flange Elastic Nut M6

233261466

$1.66

13

Hex. Flange Elastic Nut M8

233281414

$1.14

14

Washer

503192491

$4.38

15

Screw Hex. M10 X 50

250001022

$1.42

16

Screw Hex. M10 X 60

250001023

$1.74

17

Screw Hex. M10 X 70

250001024

$1.74

18

Hex. Flange Elastic Nut M10

250100165

$0.70

19

Hex Elastic Nut M12 X 1.25

232521464

$1.74

20

Circlip

293370035

$2.55

21

Circlip

293370070

$7.02

40

Washer

503189564

$0.72

42

Spring Stopper

503194270

$16.89

46

Ski Stopper

505072594

$17.66

47

Ski Bushing

505071781

$15.35

48

Retainer 17mm long

505071812

$4.43

50

Deep Black, Spring

505072760

$51.51

54

Black, RH Lower Arm

505072497

$193.82

54

Black, LH Lower Arm

505072498

$193.82

65

Spacer

505071999

$12.69

66

Bushing

505072786

$7.40

68

Spacer

506133300

$19.97

69

Retainer 23mm Long

505072133

$5.03

71

Sleeve

505072143

$8.62

73

Bushing

505072208

$3.14

75

Bushing

505072250

$3.14

76

Ball Joint

505073636

$49.97

82

Washer

505072392

$4.65

83

Bushing

505072214

$15.26

86

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

88

O-Ring

505072448

$2.25

91

STABILISATOR - Call your local BRP dealership

505072785

Unavailable

93

Wear Plate

505072634

$4.45

94

Leg Bushing

505072690

$5.92

95

Adjustment Knob

505072753

$2.08

96

Upper Ball Joint

505072913

$69.97

100

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

$175.35

101

Black, Handle

505072976

$35.35

102

ORANGE LH SKI LEG - Call your local BRP dealership | FREERIDE

505073247

Unavailable

102

ORANGE RH SKI LEG - Call your local BRP dealership | FREERIDE

505073248

Unavailable

104

LH Upper Arm 39"

505073468

$143.05

104

RH UPPER ARM - Call your local BRP dealership

505073076

Unavailable

109

Adjustment Knob Ass'y | Included 7740 to 7740b

503193025

Unavailable

110

Double Ball Joint Link

505073172

$54.58

110

Double Ball Joint Link

860200811

$93.99

111

Stabilisator Lever

505073176

$16.12

112

Shock Adjustment Decal

516005534

$12.95

115

Shock Knob Adjustment Decal

516004752

$12.95

121

Washer

503192496

$0.75

125

RH Front Shock | Includes 990a to 990a7

505073124

$877.49

125

LH Front Shock | Includes 990a to 990a7

505073123

$877.49

125a

O-Ring

505070400

$4.38

125b

Screw | Not Shown

505070399

$4.00

125c

Air Valve

505070398

$17.66

125f

Not Available As Spare Part - Friction Washer

Unavailable

125g

O-Ring

415093804

$4.38

125h

Piston Ring | Not Shown

415093806

$14.97

125k

O-Ring

415093807

$34.58

125m

Base Valve

415130165

$74.58
