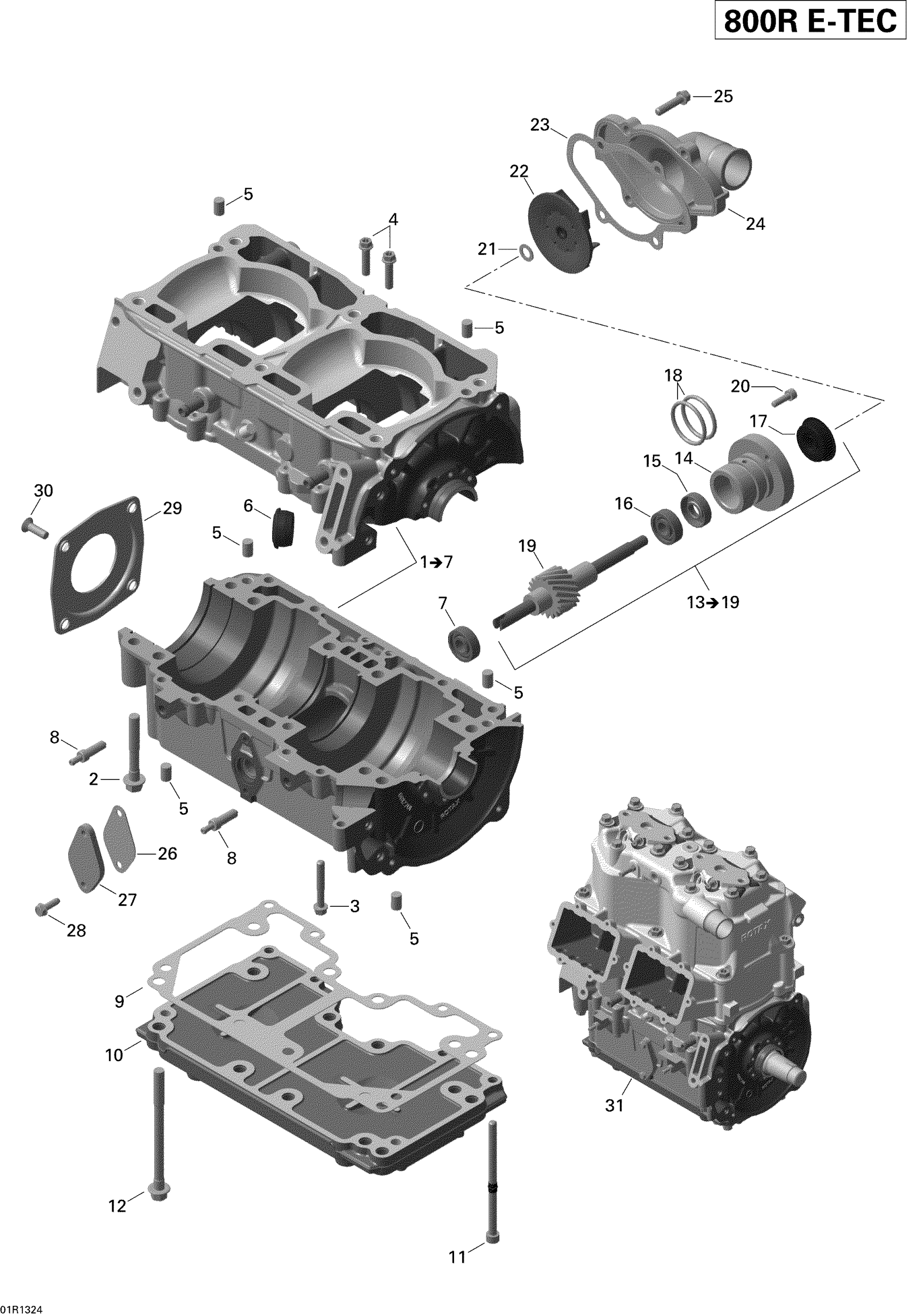

Ski-Doo FREERIDE 137, 146, 154, 800RE XP, 2013 Crankcase And Water Pump Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 7

420893084

$1,059.97

2

Hex. Screw M8 X 56.5

420941627

$8.34

3

Torx Flange Screw M6 X 40

420440282

$3.11

4

Torx Flange Screw M6 X 25

420440234

$3.00

5

Center Pin 8 X 12

420632010

$3.07

6

Cable Grommet

420660890

$12.52

7

Ball Bearing

420232100

$15.57

8

Check Valve

420956071

$23.82

9

Gasket Engine Support

420430070

$23.82

10

ENGINE SUPPORT - Call your local BRP dealership

420812683

Unavailable

11

Socket HD Screw M6 x 100 This part replaces 420241606.

420241607

$15.35

12

Screw M8x105

420941518

$10.45

13

WATER PUMP/OIL PUMP SHAFT ASS'Y | Includes 13 to 19 This part replaces 420837676.

420837677

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Oil Seal

420230195

$12.65

16

Ball Bearing

420232100

$15.57

17

Rotary Seal

420650371

$35.72

18

O-Ring

420950890

$4.28

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Allen Screw M5 x 16

420840514

$1.85

21

Washer 8.4

420944033

$0.98

22

Water Impeller

420922805

$36.89

23

Joint Couv.Pom.*Gasket Cover Water Pump This part replaces 420430050.

420430051

$13.58

24

Water Pump Housing

420822280

$59.97

25

Torx Flange Screw M6 X 25

420440234

$3.00

26

Gasket This part replaces 420931566.

420931568

$9.31

27

Cover Plate

420810827

$14.54

28

Taptite Screw M5 X 16

420941928

Unavailable

29

Oil Seal Cover

420812422

$14.54

30

Screw M6 X 20

420941436

$2.37

31

Short Block 800R E-TEC

420079755

$2,469.99

31

Short Block 800R E-TEC

420079755

$2,469.99
