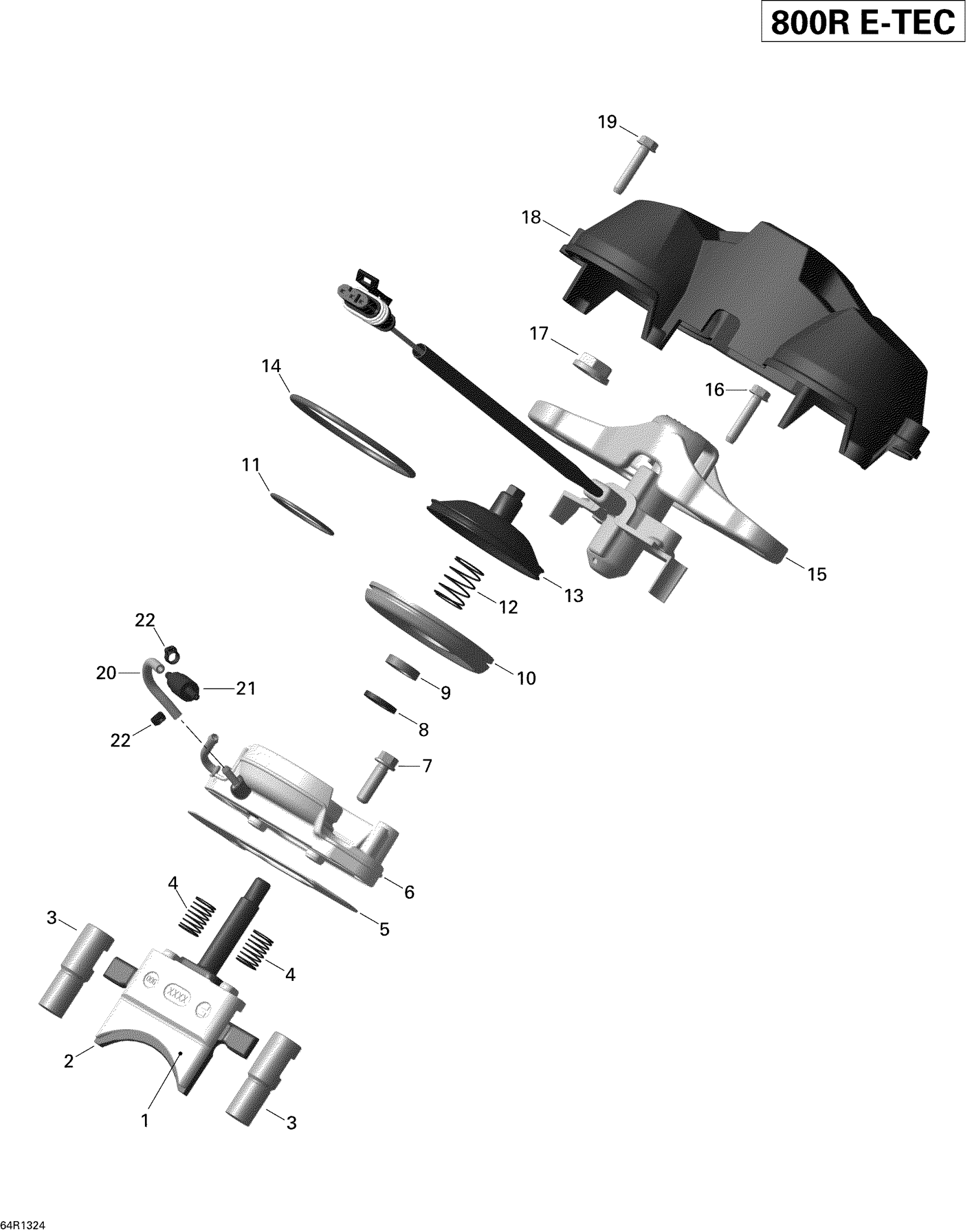

Ski-Doo FREERIDE 137, 146, 154, 800RE XP, 2013 3D Rave Diagram

#

Description
Price

1

Upper Exhaust Valve | Composante émission de type échappement.

420854900

$20.12

2

Lower Exhaust Valve This part replaces 420854909.

420854904

$56.69

3

Exhaust Valve

420854890

$10.85

4

Spring

420238558

$5.06

5

Gasket

420430032

$16.39

6

Valve Housing

420854888

$94.00

7

Torx Flange Screw M6 X 20

420440207

$2.91

8

Gasket Ring

420431380

$8.09

9

Oil Seal | Included in gasket kit

420950732

$8.09

10

Bellows

420260725

$40.27

11

Hose Spring This part replaces 420838253.

420838255

$7.01

12

Spring

420238557

$5.06

13

Valve Cover

420854442

$34.30

14

Hose Spring This part replaces 420939285.

420939286

$10.21

15

Position Sensor

420854089

$105.94

16

Tapping Screw M5 X 22

420841550

$1.63

17

Nut M12 X 1.5

420942190

$12.15

18

Cover

420910821

$12.15

19

Tapping Screw M5 X 22

420841550

$1.63

20

Oil Hose 1500Mm Long

219704404

$15.64

21

Check Valve Ass’y

420956515

$7.64

22

Clamp

420851508

$12.15
