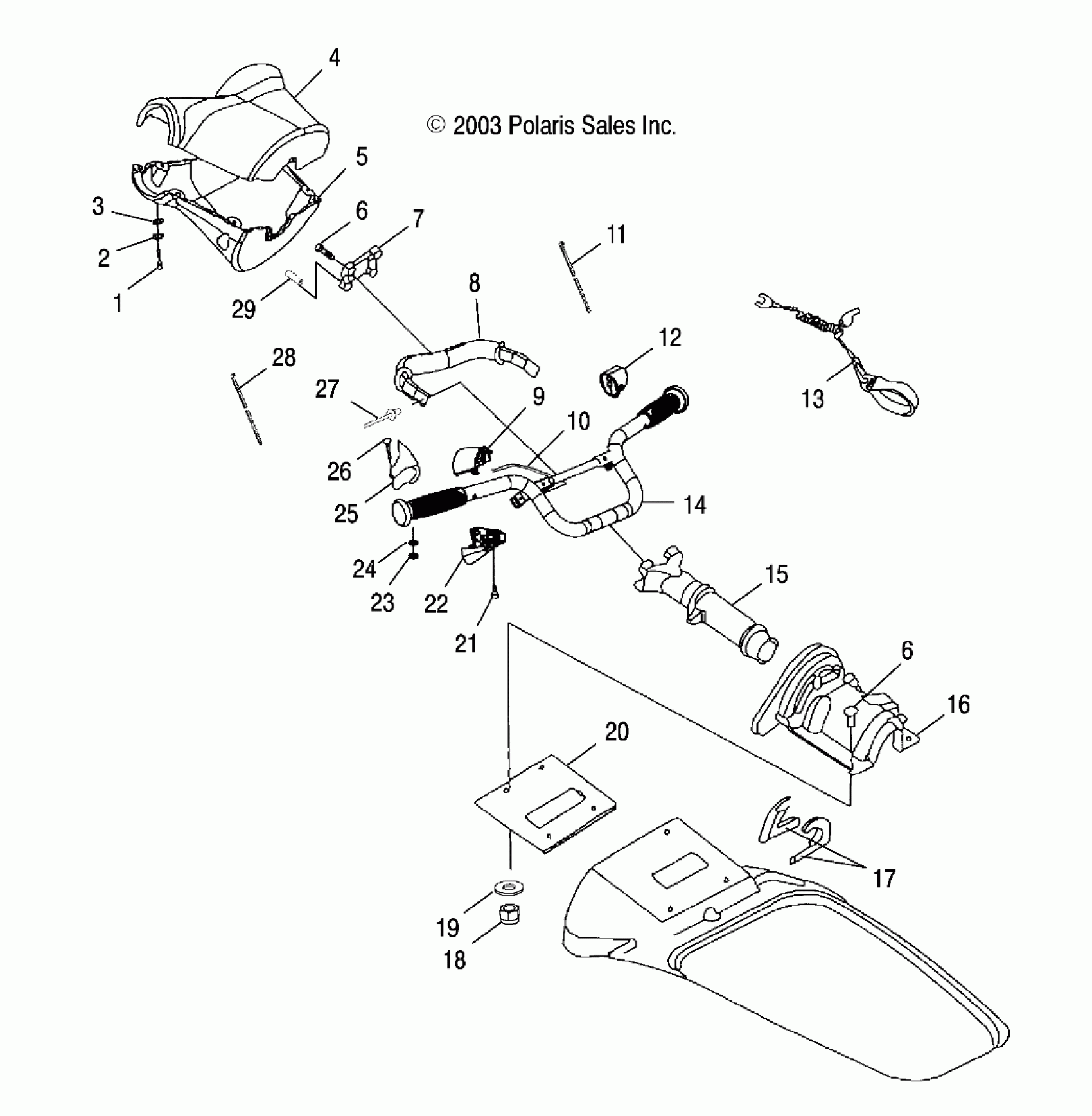

Polaris FREEDOM - W045297DA/IA/IB STEERING - W045297DA/IA/IB (4990519051A13) Diagram

#

Description
Price

1

Screw

7517717

$1.11

2

Washer, Lock

7552613

Unavailable

3

Washer

7555836

$3.99

4

Pad, Handlebar, Top

5433901-070

$65.87

5

Pad, Handlebar, Bottom

5433899-070

$29.52

6

Screw

7517660

$6.35

6

Screw

7517660

$6.35

7

Clamp, Handlebar w/Pin

5631017

Unavailable

8

Handle, Grab

5433355-070

Unavailable

9

Block, Throttle, Split

5433081

$49.21

10

Cable, Throttle

7081065

$65.87

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

Switch, START/STOP/BILGE

2410168

$222.22

12

Button, Start/Stop, LH

5434236

$222.22

13

Lanyard w/Whistle

7080675

Unavailable

14

Asm., Handlebar w/Grip

1820994-070

Unavailable

15

Column, Steering w/Pin

5133395

$130.95

16

Housing, Steering

5433136

Unavailable

17

Bearing, Steering

5433135

Unavailable

18

Nut, Hex

7542335

Unavailable

19

Washer, Flat

7555831

Unavailable

20

Gasket, Steering Housing

5811551

$6.49

21

Screw

7517787

Unavailable

22

Clamp, Throttle Block

5433737

$12.70

23

Ring, Retaining

7710426

Unavailable

24

Washer, Flat

7555840

$3.33

25

Lever, Throttle, Thumb

5433079

Unavailable

26

Pin, Retaining

7661053

$12.21

27

RIVET

7621478

Unavailable

28

Cable Tie

7080483

Unavailable

29

Pin, Roll

7661099

$0.95
