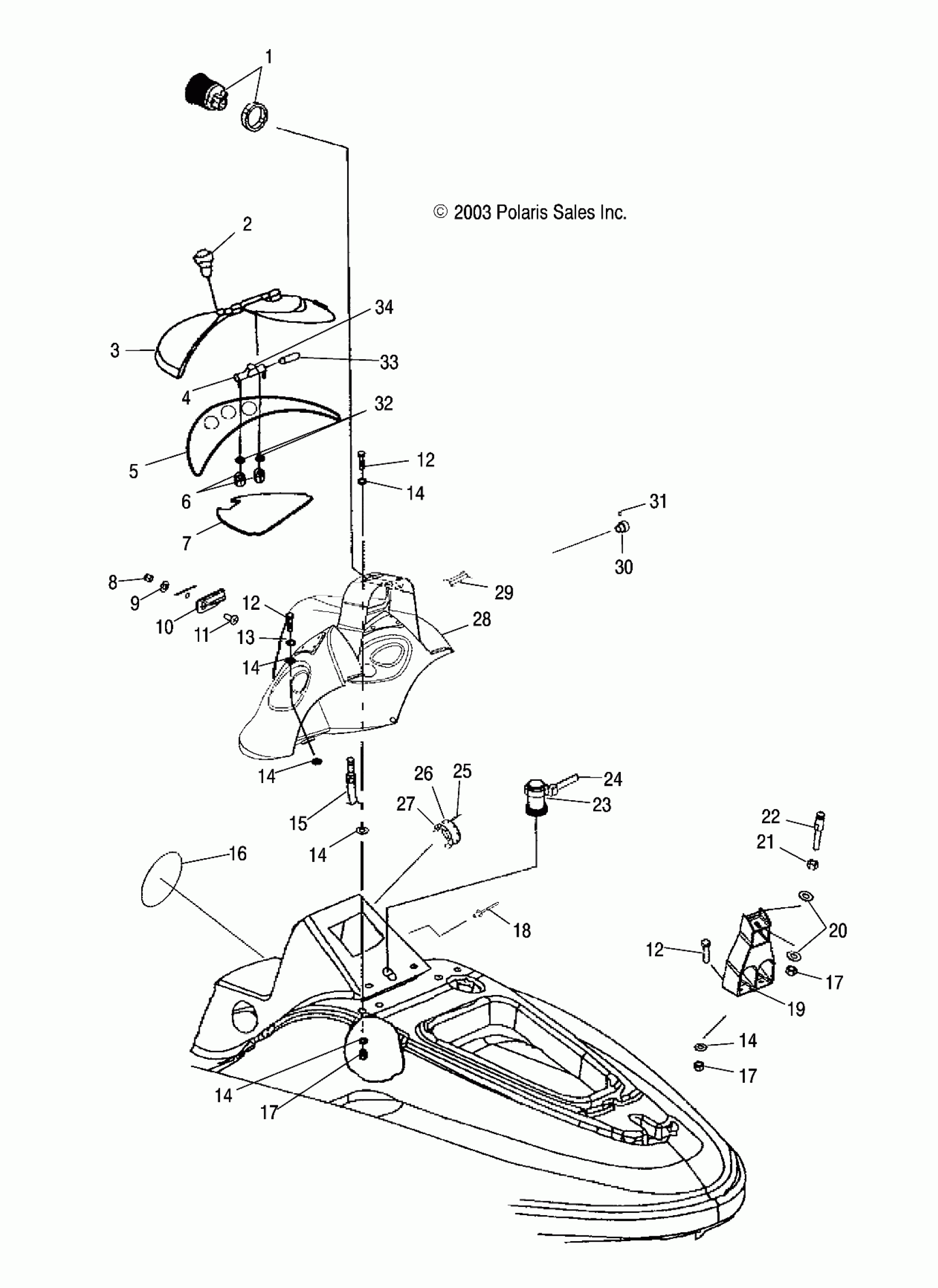

Polaris FREEDOM - W045297DA/IA/IB SHROUD - W045297DA/IA/IB (4990519051A03) Diagram

#

Description
Price

1

Gauge, Fuel, Warning

3280445

$139.68

2

Asm., Console Latch

2653011

$28.73

3

Lid, Console

5434564-443

$97.99

4

Spring, Torsion

7042007

Unavailable

5

Seal, Lid

5521630

Unavailable

6

Nut

7546705

$4.76

7

Pad

5812235

Unavailable

8

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

9

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

10

Hook, Latch

5245455

Unavailable

11

Screw

7517669

Unavailable

12

Screw

7517668

$2.06

12

Screw

7517668

$2.06

12

Screw

7517668

$2.06

13

Washer, Lock

7556055

Unavailable

14

Washer, Flat

7555831

Unavailable

14

Washer, Flat

7555831

Unavailable

14

Washer, Flat

7555831

Unavailable

14

Washer, Flat

7555831

Unavailable

14

Washer, Flat

7555831

Unavailable

14

Washer, Flat

7555831

Unavailable

15

Cable, Choke

7081056

Unavailable

16

Grommet, Access

5411674

$9.84

17

Nut, Hex, Nylok

7546804

$1.19

17

Nut, Hex, Nylok

7546804

$1.19

17

Nut, Hex, Nylok

7546804

$1.19

18

Rivet

7621491

$0.69

19

Bracket, Hood Post

5434684

$22.06

20

Washer, Flat

7555835

$0.69

21

Nut

7547187

$0.95

22

Pin, Latch

5132781

$24.60

23

Grommet, Deck, Wire Harness

5411664

Unavailable

24

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

25

Rivet

7661040

$0.54

26

Cover, Reverse

5812357

Unavailable

27

Gasket

5811982

Unavailable

28

Shroud, Steering

5434562-443

$354.99

29

Bumper, Door/Shroud

5812076

$10.81

30

Knob

7081037

$9.05

31

Screw

2080005

$0.69

32

Washer, Lock

7552613

Unavailable

33

Pin, Hinge

5333698

Unavailable

34

Hinge, Pin

5433384

Unavailable
