FUEL SYSTEM - W045297DA/IA/IB (4990519051A10)

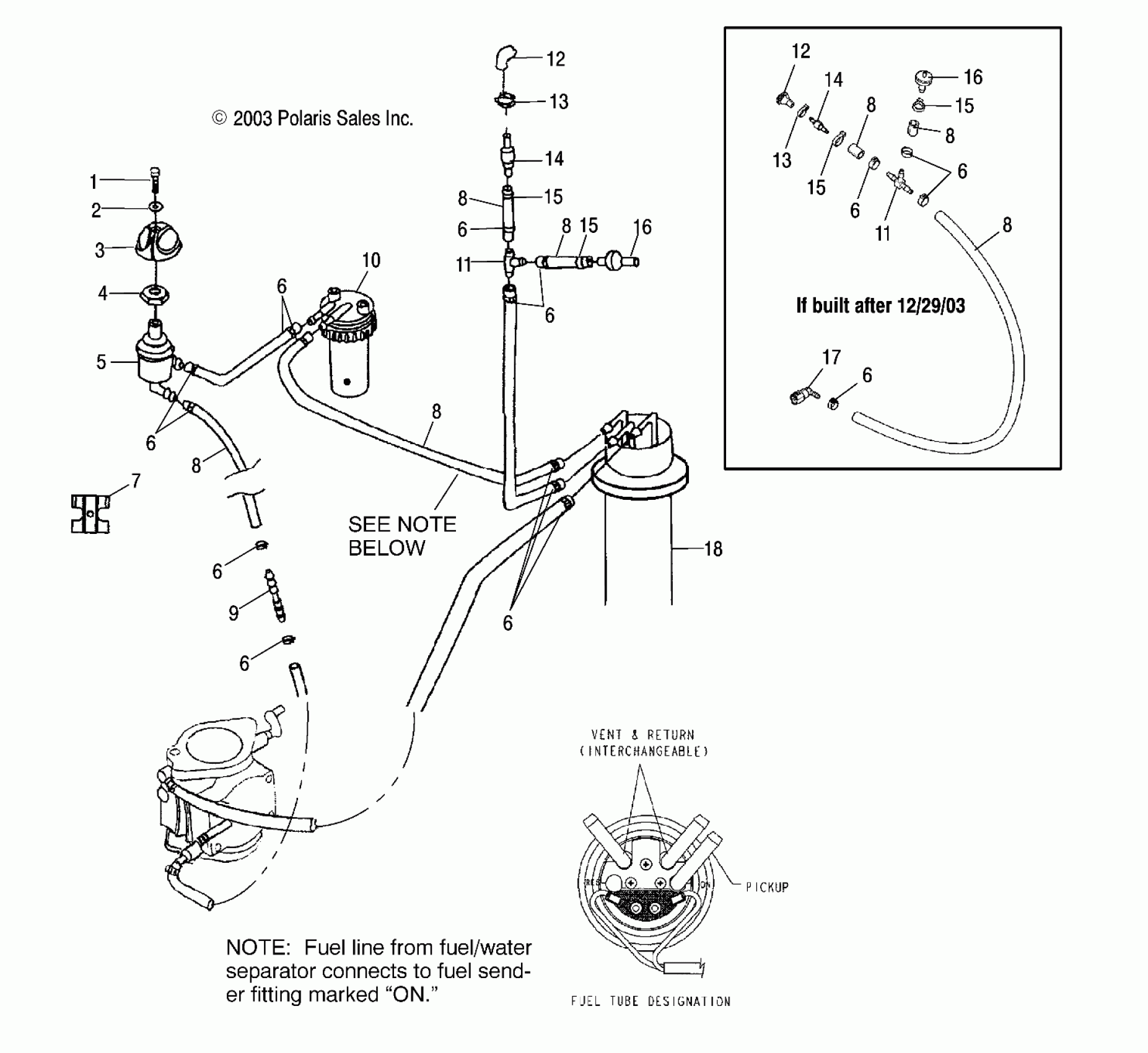

Polaris FREEDOM - W045297DA/IA/IB FUEL SYSTEM - W045297DA/IA/IB (4990519051A10) Diagram
#
Description
Price
1
Screw
7516302
$3.99
2
Washer, Flat
7555840
$3.35
3
Knob, Fuel Valve, Black
5432836-070
Unavailable
4
NUT, FUEL VALVE
5431451
Unavailable
5
Valve, On/Off
7052159
$43.99
6
Clamp, Hose
7080476
$6.39
6
Clamp, Hose
7080476
$6.39
6
Clamp, Hose
7080476
$6.39
6
Clamp, Hose
7080476
$6.39
6
Clamp, Hose
7080476
$6.39
6
Clamp, Hose
7080476
$6.39
6
Clamp, Hose
7080476
$6.39
6
Clamp, Hose
7080476
$6.39
6
Clamp, Hose
7080476
$6.39
6
Clamp, Hose
7080476
$6.39
7
T-Clip
7080482
$6.39
8
Line, Fuel
8450104
Unavailable
8
Line, Fuel
8450104
Unavailable
8
Line, Fuel
8450104
Unavailable
8
Line, Fuel
8450104
Unavailable
8
Line, Fuel
8450104
Unavailable
8
Line, Fuel
8450104
Unavailable
8
Line, Fuel
8450104
Unavailable
9
Fitting
7052329
Unavailable
10
SEPARATOR, FUEL/WATER [SEE FUEL/WATER SEPARATOR PG. B10, REF. 4]
-------
Unavailable
11
Fitting, Tee
7052111
Unavailable
11
Fitting, Tee
7052111
Unavailable
12
Grommet, Vent
5410682
Unavailable
12
Grommet, Vent
5410682
Unavailable
13
Cable Tie
7080483
Unavailable
13
Cable Tie
7080483
Unavailable
14
Valve, Check, Relief
7051015
Unavailable
14
Valve, Check, Relief
7051015
Unavailable
15
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
15
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
15
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
15
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
16
Valve, Vacuum Check
7052118
Unavailable
16
Valve, Vacuum Check
7052118
Unavailable
17
Asm., Connector (If built after 12/29/03)
7052253
Unavailable
18
ASM., SENDER, PICKUP [SEE FUEL TANK PG. A9, REF. 19]
-------
Unavailable
