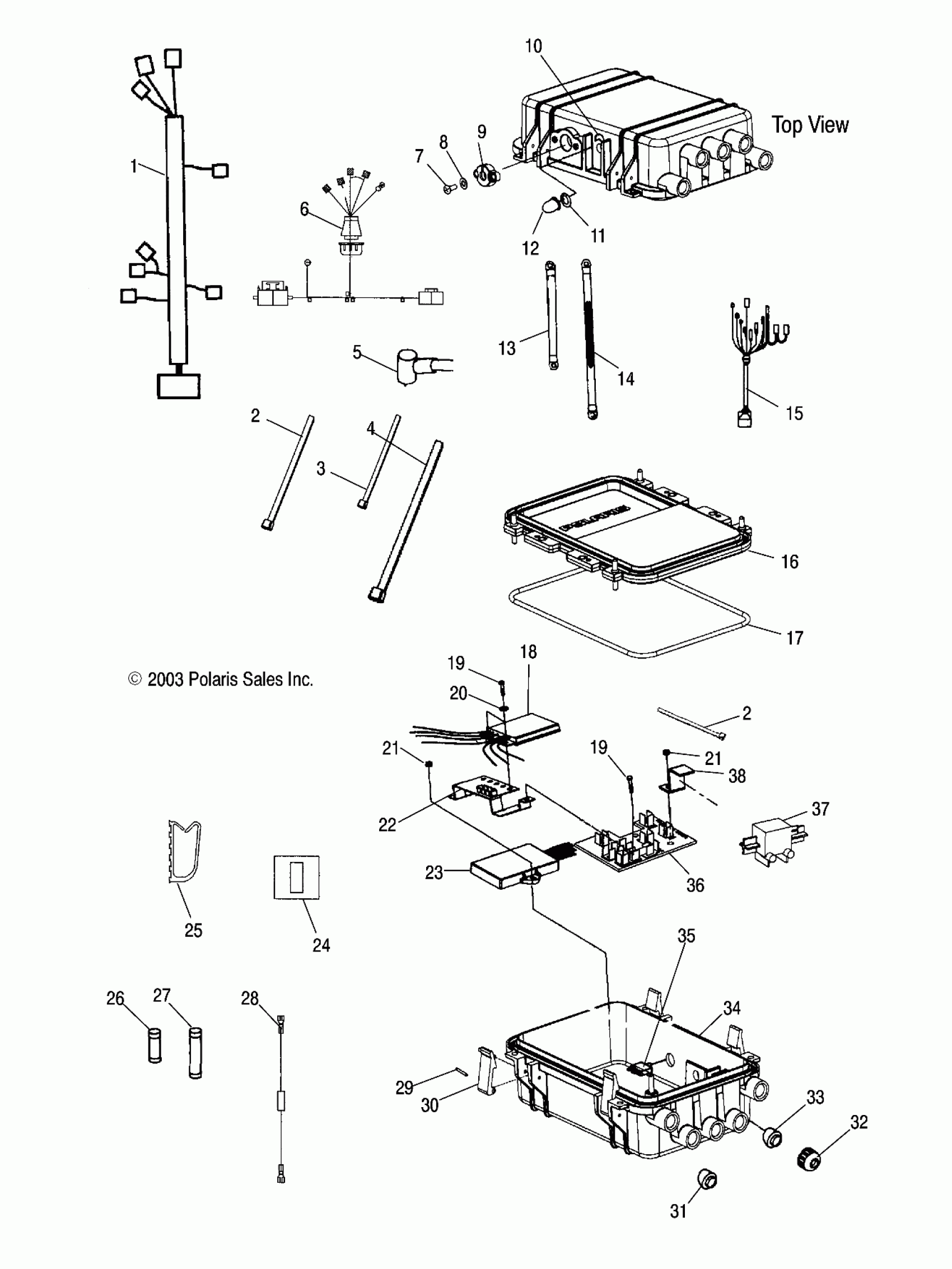

Polaris FREEDOM - W045297DA/IA/IB ELECTRICAL BOX - W045297DA/IA/IB (4990519051B11) Diagram

#

Description
Price

1

Harness, Main

2461107

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

Cable Tie

7080483

Unavailable

4

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

5

INSULATOR-CABLE

5410346

$7.73

6

Harness, Starter Relay, Bilge

2461113

$94.44

7

Bolt

7515113

Unavailable

8

Washer

7555836

$3.99

9

Plate, Stator

5432574

$6.59

10

Decal, "ELECTRIC BOX RESET"

7073734

Unavailable

11

O-Ring

5411491

$1.03

12

Boot, Threaded

7080461

$13.99

13

Cable, Battery/Solenoid

4010669

Unavailable

14

Cable, Solenoid/Starter

4010826

Unavailable

15

Harness, 8 Wire Stator

2460718

Unavailable

16

Cover, Electrical Box

5433119

Unavailable

17

Seal

5432569

Unavailable

18

Regulator, 1 Button

4010648

Unavailable

19

Bolt

7512042

Unavailable

19

Bolt

7512042

Unavailable

20

Washer, Flat

7555837

$1.59

21

Nut, Nylok

7547061

$0.56

21

Nut, Nylok

7547061

$0.56

22

Asm., Grounding Strap w/Fuses

2410250

Unavailable

23

CDI, PROGRAMMED [SEE MAGNETO PG. C6, REF. 10]

----

Unavailable

24

Anchor, Cable Tie

7080464

Unavailable

25

Conduit, Wire

5521286-2.5

Unavailable

26

Fuse, 3 Amp

4060161

Unavailable

27

Fuse

4060111

Unavailable

28

Harness, Jumper

2460928

$13.89

29

Pin, Latch

5333544

$10.46

30

Latch

5432503

$102.38

31

Plug, Wire Sealing

4010261

$1.19

32

Cap, Grommet

5432502

$2.62

33

Grommet

5411235

Unavailable

34

Asm., Electrical Box, Ignition [Incl. 16,17,29,30]

2632137

Unavailable

35

Breaker, Circuit

2434011

$20.48

36

Asm., Terminal Board

2410297

$13.10

37

COIL, IGNITION [SEE MAGNETO PG. C6, REF. 11]

----

Unavailable

38

Bracket, Coil

5244370

Unavailable
