CRANKSHAFT and PISTON - W045297DA/IA/IB (4990519051C03)

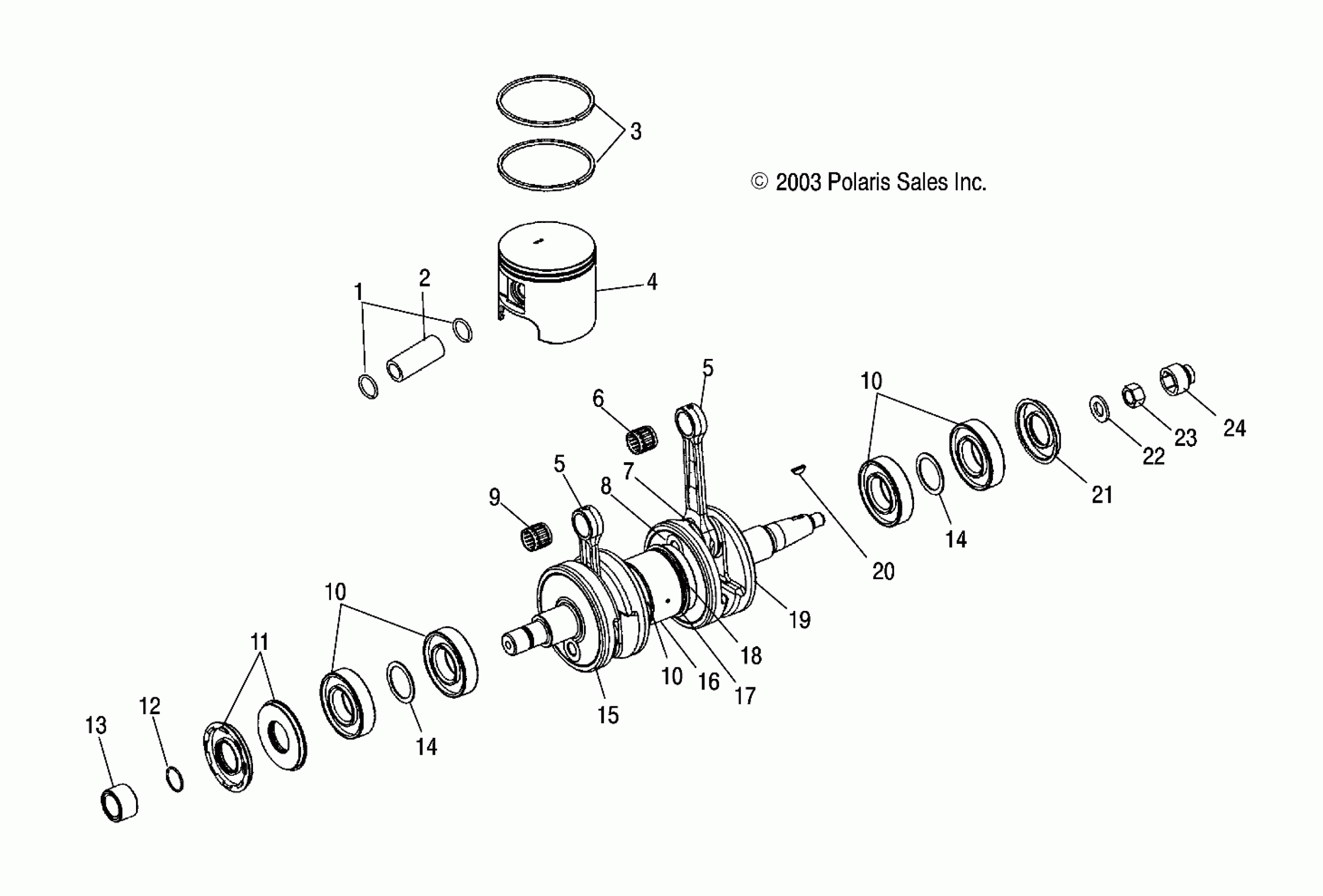

Polaris FREEDOM - W045297DA/IA/IB CRANKSHAFT and PISTON - W045297DA/IA/IB (4990519051C03) Diagram
#
Description
Price
-
Kit, Crankshaft [Incl. 10,14-20]
2202494
Unavailable
1
Circlip, Piston
3022950
Unavailable
2
Pin, Piston
3021091
Unavailable
3
Kit, Piston Rings, .25mm OS
2200917
Unavailable
3
Kit, Piston Rings, Standard [2 Rings]
2200918
Unavailable
3
Kit, Piston Rings, .50 mm OS NOTE: If the number stamped on the head of piston reads ELKO 2194a use the above 3 kits.
2200916
Unavailable
4
Kit, Piston, Standard [Incl.1-3]
2201626
Unavailable
4
Kit, Piston, .25 mm OS [Incl.1-3]
2201627
Unavailable
4
Kit, Piston, .50 mm OS [Incl.1-3]
2201628
Unavailable
5
Kit, Connecting Rod Assembly [Incl. 7-9]
2201022
$305.56
5
Kit, Connecting Rod Assembly [Incl. 7-9]
2201022
$305.56
6
Bearing, Connecting Rod [20 mm]
3584001
Unavailable
7
Washer, Thrust
-------
Unavailable
8
PIN, CRANKSHAFT
-------
Unavailable
9
BEARING, CONNECTING ROD
-------
Unavailable
10
Bearing, Ball
3585503
$31.99
10
Bearing, Ball
3585503
$31.99
10
Bearing, Ball
3585503
$31.99
11
Seal, Flange
5412091
$29.99
12
O-RING
5410613
$1.99
13
Collar, Crankshaft
5131195
Unavailable
14
Bushing
7555905
$3.99
14
Bushing
7555905
$3.99
15
Crankweb, PTO
5131083
Unavailable
16
Crankweb, Center
5131084
Unavailable
17
Labyrinth
5131086
Unavailable
18
BEARING, BALL
3514318
$43.99
19
Crankweb, Magneto
5131085
Unavailable
20
KEY, WOODRUFF
7721117
$24.99
21
Seal
3610044
$24.27
22
WASHER [SEE MAGNETO PG. C6, REF. 7]
-------
Unavailable
23
NUT [SEE MAGNETO PG. C6, REF. 8]
-------
Unavailable
24
Coupler
5435935
Unavailable
