COOLING SYSTEM - W035297DA/W035297IA (4980978097B06)

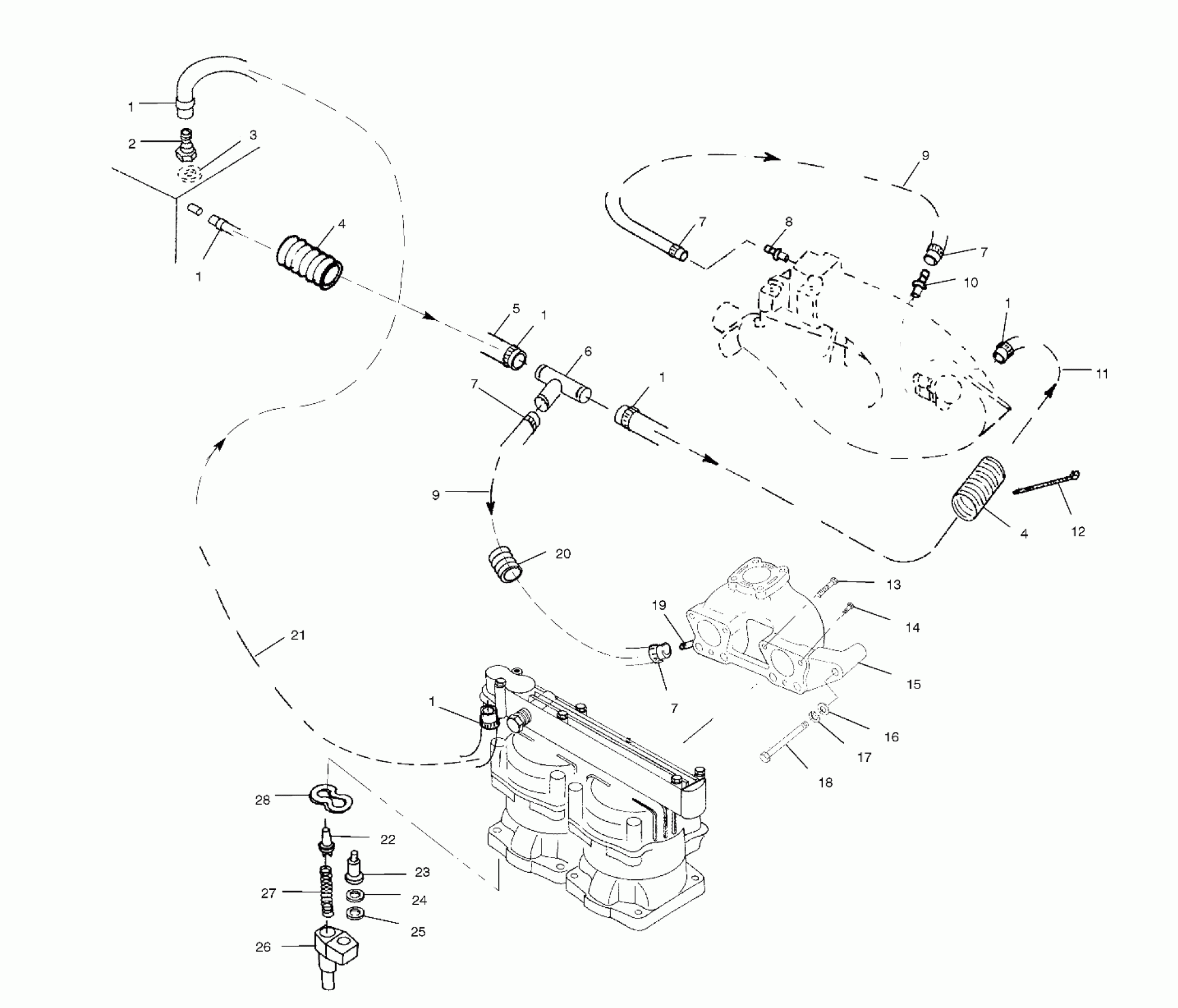

Polaris FREEDOM - W035297DA/W035297IA COOLING SYSTEM - W035297DA/W035297IA (4980978097B06) Diagram
#
1
Clamp, Hose
7080475
$10.39
1
Clamp, Hose
7080475
$10.39
1
Clamp, Hose
7080475
$10.39
1
Clamp, Hose
7080475
$10.39
1
Clamp, Hose
7080475
$10.39
1
Clamp, Hose
7080475
$10.39
2
Fitting, Thru-Hull
5431444-133
Unavailable
3
Gasket
5811317
Unavailable
4
Conduit, Flex
5521287-45
Unavailable
4
Conduit, Flex
5521287-45
Unavailable
5
Hose, Outlet, Pump
5411049
Unavailable
6
Fitting, Tee
5431784
Unavailable
7
Clamp, Hose
7080476
$6.39
7
Clamp, Hose
7080476
$6.39
7
Clamp, Hose
7080476
$6.39
7
Clamp, Hose
7080476
$6.39
8
Fitting, Screen, Exhaust
7052128
Unavailable
9
Hose, Water
8450054-100
Unavailable
9
Hose, Water
8450054-100
Unavailable
10
Fitting, Injector, Exhaust
5020747
Unavailable
11
Hose, Inlet
5411050
Unavailable
12
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
13
Screw
7516727
Unavailable
14
Screw
7516725
Unavailable
15
Asm., Exhaust Manifold
1260694-329
Unavailable
16
Washer, Flat
7555856
Unavailable
17
Washer, Lock
7552611
Unavailable
18
Screw
7517004
Unavailable
19
Fitting, Drain Exhaust
5020746
Unavailable
20
Conduit, Flex
5521398-13
Unavailable
21
Hose, Water Out
5411479
Unavailable
22
Valve, Pop-Off
5432799
Unavailable
23
Thermostat, 143 Degrees F.
7051008
Unavailable
24
Gasket, Thermostat
5412014
Unavailable
25
Washer
7556174
Unavailable
26
Cover, Thermostat, Machined
5631136
Unavailable
27
Spring, Compression
7041310
Unavailable
28
Seal, Thermostat Housing
5410860
Unavailable
