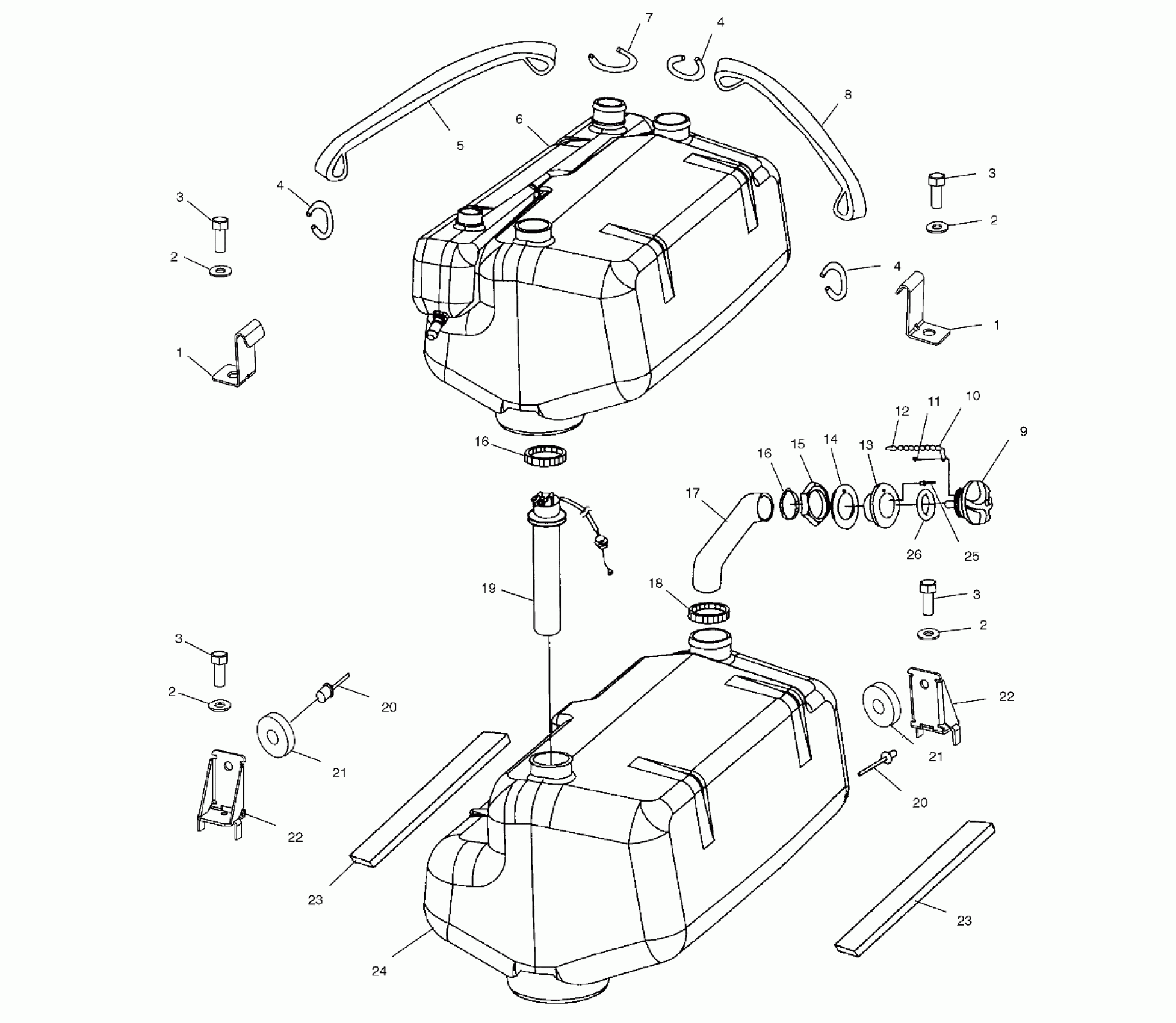

Polaris FREEDOM - W025297D FUEL TANK - W025297D/W025297I (4975477547A09) Diagram

#

Description
Price

1

Bracket, Strap

5244279

Unavailable

1

Bracket, Strap

5244279

Unavailable

2

Washer, Lock

7552610

Unavailable

2

Washer, Lock

7552610

Unavailable

2

Washer, Lock

7552610

Unavailable

2

Washer, Lock

7552610

Unavailable

3

Screw

7515361

$2.19

3

Screw

7515361

$2.19

3

Screw

7515361

$2.19

3

Screw

7515361

$2.19

4

Hook, Strap, Narrow

5243775

$4.92

4

Hook, Strap, Narrow

5243775

$4.92

4

Hook, Strap, Narrow

5243775

$4.92

5

Strap, Rubber

5430621

Unavailable

6

TANK, OIL [SEE OIL TANK PG. A12, REF. 19]

----

Unavailable

7

Hook, Strap

5243776

$2.46

8

Strap, Battery Holddown

5410424

$4.84

9

Cap, Fuel, Ratchet

2520177

Unavailable

10

Chain, Bead, Cap Retainer

7080710

Unavailable

11

Screw

7511873

Unavailable

12

Coupling, End, Fuel Cap Chain

7080442

Unavailable

13

Inlet, Fuel

5433553

$13.89

14

Seal, Fuel Inlet

5811492

$20.59

15

Nut, Fuel Inlet

5433621

$17.44

16

Clamp, Hose

7080766

$2.06

16

Clamp, Hose

7080766

$2.06

17

Hose, Fuel Fill

5411757

$57.94

18

Clamp

7080451

$7.14

19

Asm., Fuel Sender

2410124

Unavailable

20

RIVET

7621407

$1.19

20

RIVET

7621407

$1.19

21

Pad, Fuel Tank Stop

5812206

Unavailable

21

Pad, Fuel Tank Stop

5812206

Unavailable

22

Bracket, Fuel Tank Stop

5244758

$28.11

22

Bracket, Fuel Tank Stop

5244758

$28.11

23

Pad, Fuel Tank

5812152

Unavailable

23

Pad, Fuel Tank

5812152

Unavailable

24

Tank, Fuel

5433018

Unavailable

25

Rivet

7621229

Unavailable

26

Seal, Fuel Cap

5411305

Unavailable
