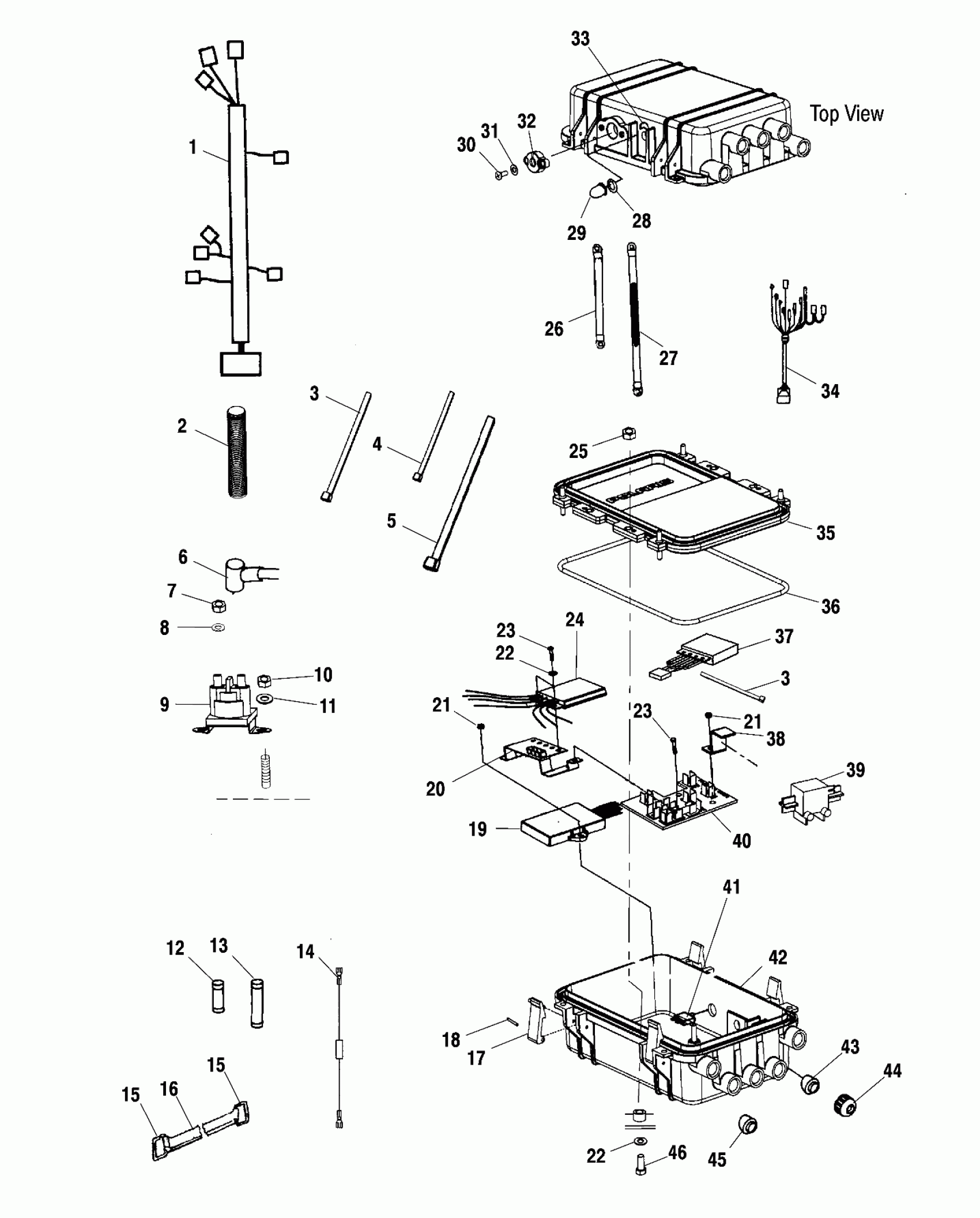

Polaris FREEDOM - W025297D ELECTRICAL BOX - W025297D/W025297I (4975477547B11) Diagram

#

Description
Price

1

Harness, Main

2461032

$264.98

2

Conduit, Flex

5521287-53

Unavailable

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

Cable Tie

7080483

Unavailable

5

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

6

INSULATOR-CABLE

5410346

$7.73

7

Nut

7546705

$4.76

8

Washer, Lock

7552613

Unavailable

9

Solenoid, Starter

4010401

Unavailable

10

Nut, Nylok

7542133

Unavailable

11

Washer, Flat

7555836

$3.99

12

Fuse, 3 Amp

4060161

Unavailable

13

Fuse, 1/4 Amp

4060111

Unavailable

14

Harness, Jumper

2460928

$13.89

15

Hook, Strap

5243775

$4.92

15

Hook, Strap

5243775

$4.92

16

Strap, Hold Down

5410424

$4.84

17

Latch

5432503

$102.38

18

Pin, Latch

5333544

$10.46

19

CONTROLLER, IGNITION [SEE MAGNETO PG. C6, REF. 8]

----

Unavailable

20

Asm., Grounding Strap w/Fuses

2410250

Unavailable

21

Nut, Nylok

7547061

$0.56

21

Nut, Nylok

7547061

$0.56

22

Washer, Flat

7555837

$1.59

22

Washer, Flat

7555837

$1.59

23

Screw

7512042

Unavailable

23

Screw

7512042

Unavailable

24

Regulator, 1 Button

4010648

Unavailable

25

NUT, NYLOK

7547059

$4.76

26

Cable, Battery/Solenoid

4010669

Unavailable

27

Cable, Solenoid/Starter

4010642

$25.40

28

O-Ring

5411491

$1.03

29

Boot, Threaded

7080461

$13.99

30

Screw

7515113

Unavailable

31

Washer, Flat

7555836

$3.99

32

Plate, Stator

5432574

$6.59

33

Decal, "RESET ELEC SYSTEM"

7077691

Unavailable

34

Harness, 8 Wire Stator

2460718

Unavailable

35

Cover, Electrical Box

5433119

Unavailable

36

Seal

5432569

Unavailable

37

Driver, Lamp, LR 85

4010615

$86.51

38

Bracket, Coil

5244370

Unavailable

39

COIL, IGNITION [See Magneto Pg. C6, Ref. 10]

----

Unavailable

40

Asm., Terminal Board

2410297

$13.10

41

Breaker, Circuit

2434011

$20.48

42

Asm., Electrical Box, Ignition [Incl. 17,18,35,36]

2632137

Unavailable

43

Grommet, Solid

5411235

Unavailable

44

Cap

5432502

$2.62

45

Plug, Wire Sealing

4010261

$1.19

46

Screw

7517825

Unavailable
