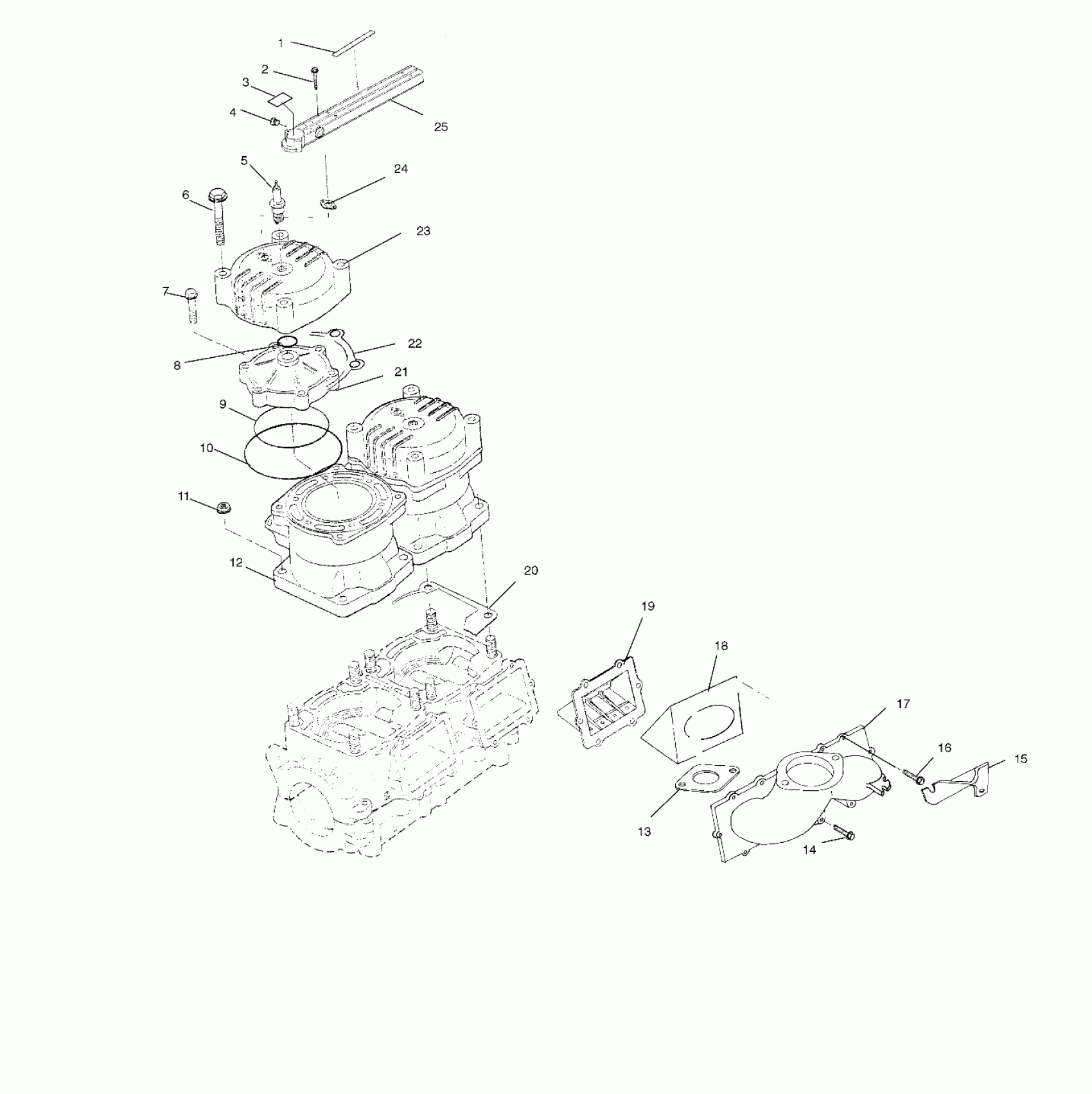

Polaris FREEDOM - W025297D CYLINDER and MANIFOLD - W025297D/W025297I (4975477547C02) Diagram

#

Description
Price

1

Decal, Warning

7075383

Unavailable

2

Screw

7516806

Unavailable

3

Decal, Spark Plug

7077026

$2.95

4

Plug, Pipe

7051527

Unavailable

5

Spark Plug, NGK BPR8ES

3070174

Unavailable

6

Screw

7516722

Unavailable

7

Screw

7517352

Unavailable

8

O-Ring

5410917

$1.49

9

O-RING

5410932

$20.22

10

O-Ring

5410931

Unavailable

11

NUT

7547021

$6.99

12

Cylinder

3021019

Unavailable

13

Gasket, Carb

5830043

Unavailable

14

Screw

7517306

Unavailable

15

Bracket, Oil Pump Cable

5241134

Unavailable

16

Screw

7516807

Unavailable

17

Manifold, Intake

5630656-329

Unavailable

18

Stuffer, Reed Block

5433151

Unavailable

19

Asm., Valve, Reed

1201825

$134.99

20

Gasket, Cylinder Base

5811784

$8.89

21

Head, Cylinder

3021117

Unavailable

22

Ring, Head

5241944

Unavailable

23

Cover, Head

5630527-093

Unavailable

24

Gasket, Water, Manifold

5830061

Unavailable

25

Manifold, Outlet, Water

1202061-093

Unavailable
