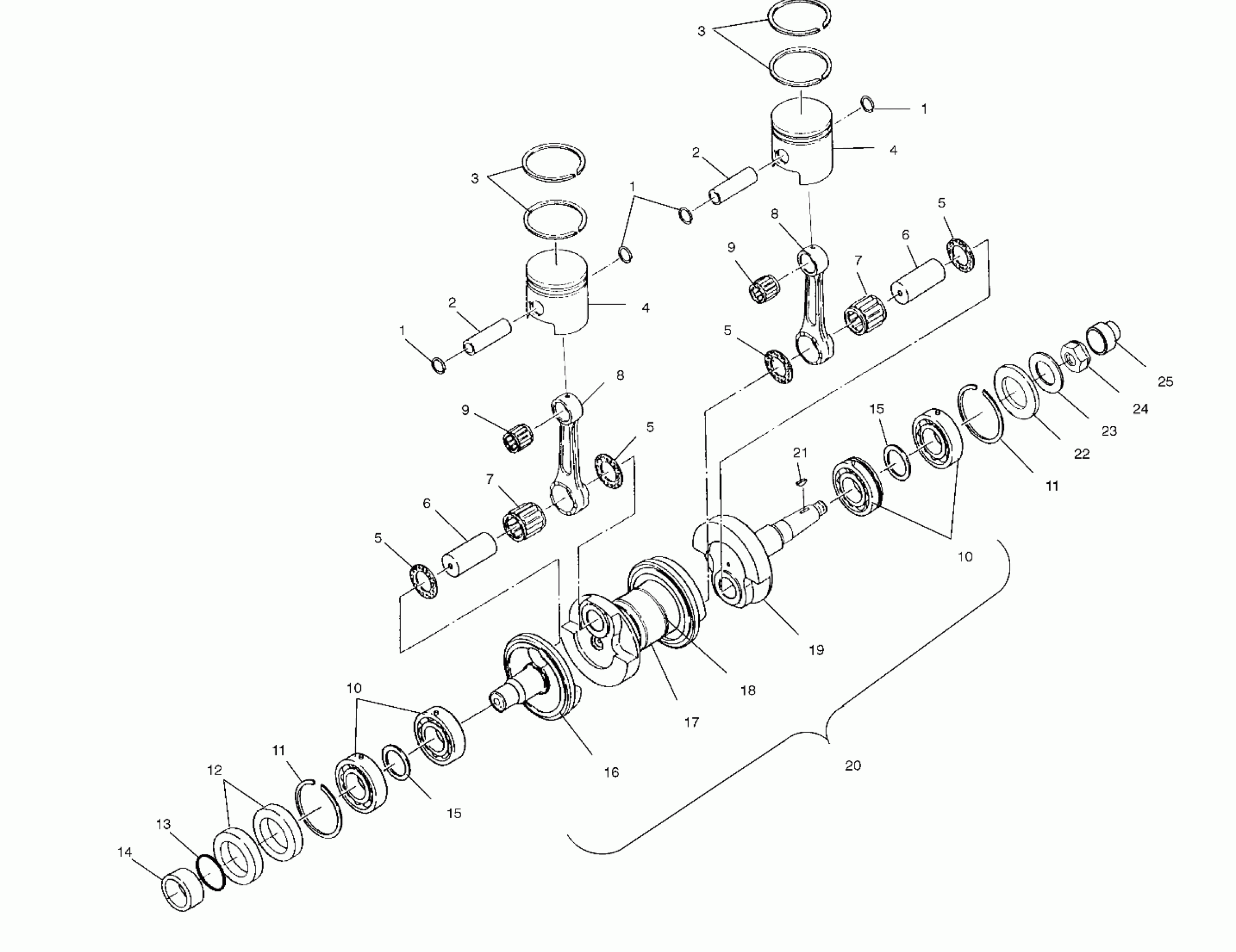

Polaris FREEDOM - W025297D CRANKSHAFT and PISTON - W025297D/W025297I (4975477547C03) Diagram

#

Description
Price

1

Circlip, Piston

3022950

Unavailable

1

Circlip, Piston

3022950

Unavailable

1

Circlip, Piston

3022950

Unavailable

2

Pin, Piston

3021091

Unavailable

2

Pin, Piston

3021091

Unavailable

3

Kit, Piston Rings [.25mm OS]

2200917

Unavailable

3

Kit, Piston Rings [Std.][2 Rings]

2200918

Unavailable

3

Kit, Piston Rings [.50 mm OS] NOTE: If the number stamped on the head of piston reads ELKO 2102/6 use the above 3 kits.

2200916

Unavailable

3

Kit, Piston Rings [.25mm OS]

2200917

Unavailable

3

Kit, Piston Rings [Std.][2 Rings]

2200918

Unavailable

3

Kit, Piston Rings [.50 mm OS] NOTE: If the number stamped on the head of piston reads ELKO 2102/6 use the above 3 kits.

2200916

Unavailable

4

Kit, Piston Asm. [Std.][Incl.1,2,3]

2201626

Unavailable

4

Kit, Piston Asm. [.25 mm OS][Incl.1,2,3]

2201627

Unavailable

4

Kit, Piston Asm. [.50 mm OS][Incl.1,2,3]

2201628

Unavailable

4

Kit, Piston Asm. [Std.][Incl.1,2,3]

2201626

Unavailable

4

Kit, Piston Asm. [.25 mm OS][Incl.1,2,3]

2201627

Unavailable

4

Kit, Piston Asm. [.50 mm OS][Incl.1,2,3]

2201628

Unavailable

5

Washer, Thrust

-------

Unavailable

5

Washer, Thrust

-------

Unavailable

5

Washer, Thrust

-------

Unavailable

5

Washer, Thrust

-------

Unavailable

6

PIN, CRANKSHAFT

-------

Unavailable

6

PIN, CRANKSHAFT

-------

Unavailable

7

BEARING, CONNECTING ROD

-------

Unavailable

7

BEARING, CONNECTING ROD

-------

Unavailable

8

Kit, Connecting Rod Assembly [Incl. 5-7]

2201022

$305.56

8

Kit, Connecting Rod Assembly [Incl. 5-7]

2201022

$305.56

9

Bearing, Connecting Rod [20 mm]

3584001

Unavailable

9

Bearing, Connecting Rod [20 mm]

3584001

Unavailable

10

Bearing, Ball

3585503

$31.99

10

Bearing, Ball

3585503

$31.99

11

Ring, Retaining [72 mm]

7710441

Unavailable

11

Ring, Retaining [72 mm]

7710441

Unavailable

12

Seal

5411937

Unavailable

13

O-RING

5410613

$1.99

14

Collar, Crankshaft

5131195

Unavailable

15

Bushing

7555905

$3.99

15

Bushing

7555905

$3.99

16

Crankweb, PTO

5131083

Unavailable

17

Crankweb, Center

5131084

Unavailable

18

Labyrinth

5131086

Unavailable

19

Crankweb, Mag.

5131085

Unavailable

20

Kit, Crankshaft, 2 Cylinder [Incl. 10,15-19,21]

2201242

Unavailable

21

KEY, WOODRUFF

7721117

$24.99

22

Seal

3610044

$24.27

23

WASHER [SEE MAGNETO PG. C6, REF. 5]

-------

Unavailable

24

NUT, PUMP DRIVE [SEE MAGNETO PG. C6, REF. 6]

-------

Unavailable

25

Coupler

5432576

Unavailable
