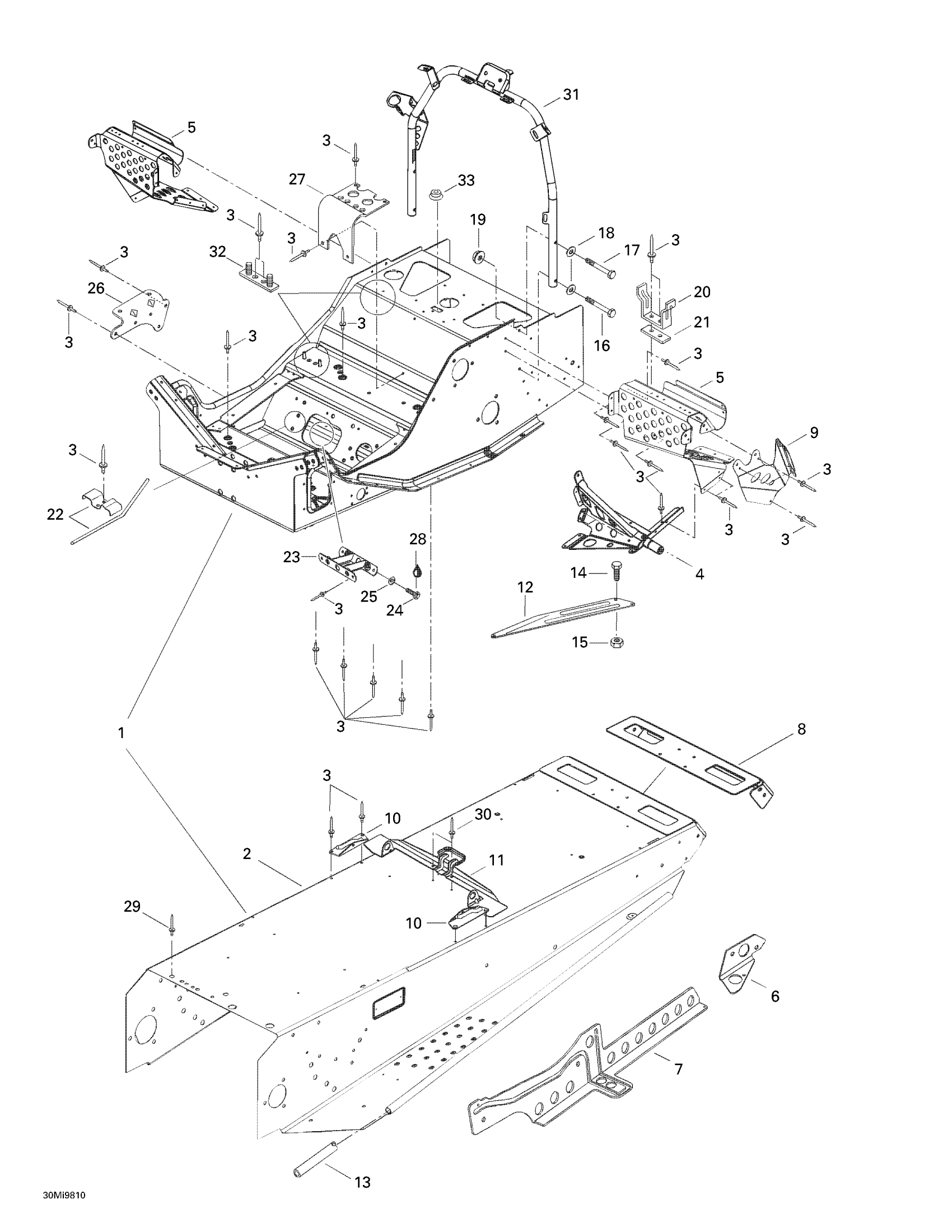

Ski-Doo Formula Z 670, 1998 09- Frame And Accessories Diagram

Frame Ass'y | Includes 1 - 15.

518319047

Unavailable

Tunnel

518318855

Unavailable

Pop Rivet 3/16"

390402200

$0.35

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

RH Footrest Support

518320506

Unavailable

RH Front Footrest

518318933

Unavailable

LH Front Footrest

518318934

Unavailable

RH Rear Reinforcement

518321000

Unavailable

LH Rear Reinforcement

518321100

Unavailable

LH Rear Bracket

518319502

Unavailable

RH Rear Bracket

518319503

Unavailable

Cap-End

518317541

Unavailable

Upper Plate L.H

518308729

Unavailable

Upper Plate R.H

518308730

Unavailable

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

Seat Bracket

518317560

Unavailable

RH Reinf. Plate

518316772

Unavailable

LH Reinf. Plate

518316773

Unavailable

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

Hex. Flange Elastic Nut M5

233251414

$1.04

Hex. Screw M6 X 40

207064044

$1.48

Hex. Flange Screw M6 X 35

207063544

$1.37

Flat Washer 6 mm

234061410

$1.36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Belt Guard Bracket

518202100

$17.49

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

Guide Rope

518313700

Unavailable

Reinf. Plate

518304741

Unavailable

Hex. Screw M8 X 20

207182044

$0.74

Lock Washer 8 mm

234181401

$0.92

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

Loctite 271, 10 ml

293800005

$26.99

Pop Rivet 3/16"

390402300

$0.75

Pop Rivet 3/16"

390402400

$0.35

Handle Steering Support

518309200

Unavailable

Support Plate

518315300

Unavailable

CAP - Call your local BRP dealership

414859400

Unavailable
