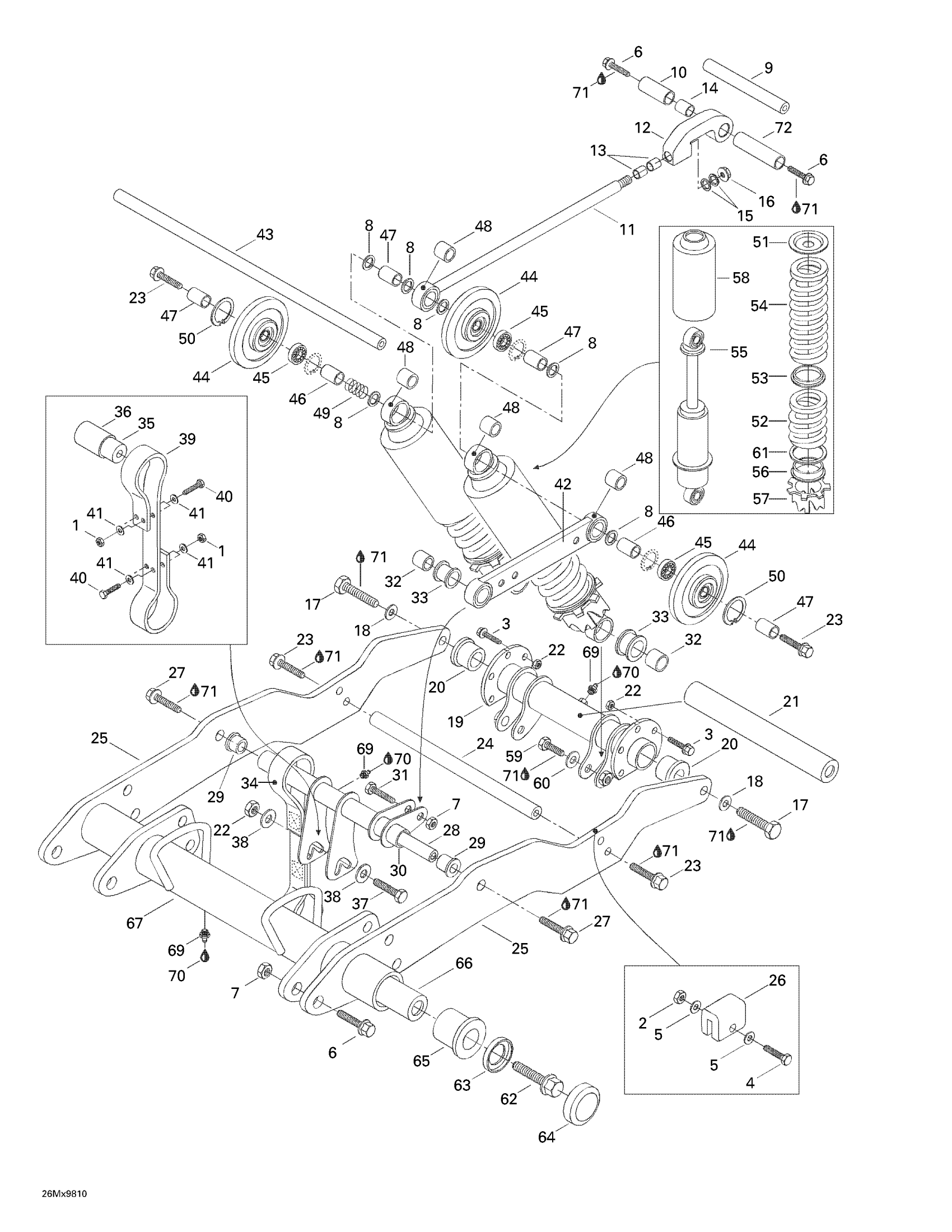

Ski-Doo Formula Z 670, 1998 08- Rear Suspension 2 Diagram

#

Description
Price

1

Elastic Stop Nut M6

232561414

$0.55

2

Elastic Stop Nut M5

232551414

$0.87

3

Hex. Flange Screw M8 X 25

207682534

$2.11

4

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

5

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

6

Hex. Flange Screw M10 X 30

207603044

$2.11

7

Elastic Locking Nut M10 X 1.5

233601416

$1.69

8

Washer

503180400

$3.49

9

Shaft | Formula Deluxe 670.

503180500

Unavailable

10

Spacer | Formula Deluxe 670.

572102400

Unavailable

11

Rear Arm | Formula Deluxe 670.

503183900

Unavailable

12

Rear Arm Stopper | Formula Deluxe 670.

503184000

Unavailable

13

Bushing | Formula Deluxe 670.

503184100

Unavailable

14

Bushing | Formula Deluxe 670.

503184200

Unavailable

15

Washer | Formula Deluxe 670.

572104100

Unavailable

16

Hex. Flange Elastic Nut M10

233201414

$1.58

17

Hex. Screw M14 x 50 | Formula Deluxe 670.

222075065

Unavailable

18

Spring Washer 14 mm

250200006

$6.99

19

Shock Support | Formula Deluxe 670.

503179200

Unavailable

20

Cushion | Formula Deluxe 670.

503179900

Unavailable

21

Shaft | Formula Deluxe 670.

503179300

Unavailable

22

Hex. Elastic Stop Nut M8

232581414

$0.56

23

Hex. Flange Screw M12 x 30 | Formula Deluxe 670.

732601287

Unavailable

24

Axle

503182600

Unavailable

25

Arm | Formula Deluxe 670.

503178900

Unavailable

26

Rubber Stopper | Formula Deluxe 670.

570067600

Unavailable

27

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership | Formula Deluxe 670.

732601283

Unavailable

28

Shaft | Formula Deluxe 670.

503179500

Unavailable

29

Cushion | Formula Deluxe 670.

503180900

Unavailable

30

Pivot | Formula Deluxe 670.

503180000

Unavailable

31

Hex. Screw M10 X 45

207004544

$1.69

32

Spacer | Formula Deluxe 670.

503180100

Unavailable

33

CUSHION - Call your local BRP dealership | Formula Deluxe 670.

503181300

Unavailable

34

Belt | Formula Deluxe 670.

503181200

Unavailable

35

Spacer | Formula Deluxe 670.

503180300

Unavailable

36

Cushion | Formula Deluxe 670.

572102100

Unavailable

37

Hex. Screw M8 X 80

207088044

$1.68

38

Yellow, Washer

503183200

$3.19

39

Rubber Belt | Formula Deluxe 670.

570068400

Unavailable

40

Hex. Screw M6 X 25

207162544

$1.15

41

Washer | Formula Deluxe 670.

503185100

Unavailable

42

Arm | Formula Deluxe 670.

503179400

Unavailable

43

Shaft | Formula Deluxe 670.

503178800

Unavailable

44

IDLER WHEEL 100 - Call your local BRP dealership | Includes 44 - 45. Formula Deluxe 670.

572091700

Unavailable

45

Ball Bearing

293350115

$12.11

46

Spacer | Formula Deluxe 670.

503178500

Unavailable

47

Spacer | Formula Deluxe 670.

503178600

Unavailable

48

Cushion | Formula Deluxe 670.

503184800

Unavailable

49

Axle Spring | Formula Deluxe 670.

415088900

Unavailable

50

CIRCLIP - Call your local BRP dealership

371910200

$2.09

51

Spring Guide

503182300

Unavailable

52

Spring | Formula Deluxe 670.

415090300

Unavailable

53

Spring Spacer | Formula Deluxe 670.

572103200

Unavailable

54

Spring | Formula Deluxe 670.

415090400

Unavailable

55

DAMPER - Call your local BRP dealership | Formula Z 670.

415085200

Unavailable

56

Guide Ressort | Formula Deluxe 670.

503185500

Unavailable

57

Cam

503185700

Unavailable

58

Protector | Formula Deluxe 670.

570067800

Unavailable

59

Hex. Screw M10 X 45

207004544

$1.69

60

Washer

503183800

$3.28

61

Washer | Formula Deluxe 670.

503185600

Unavailable

62

Hex. Flange Screw M12 x 30 | Formula Deluxe 670.

732601304

Unavailable

63

Protector Support | Formula Deluxe 670.

503185300

Unavailable

64

CAP - Call your local BRP dealership

572045900

Unavailable

65

Cushion | Formula Deluxe 670.

503179800

Unavailable

66

Shaft | Formula Deluxe 670.

503179700

Unavailable

67

Upper Tube | Formula Deluxe 670.

503179600

Unavailable

68

Guard

503179604

Unavailable

69

Grease Fitting

408200700

$3.49

70

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

71

Loctite 271, 10 ml

293800005

$26.99

72

Spacer | Formula Deluxe 670.

572102500

Unavailable
