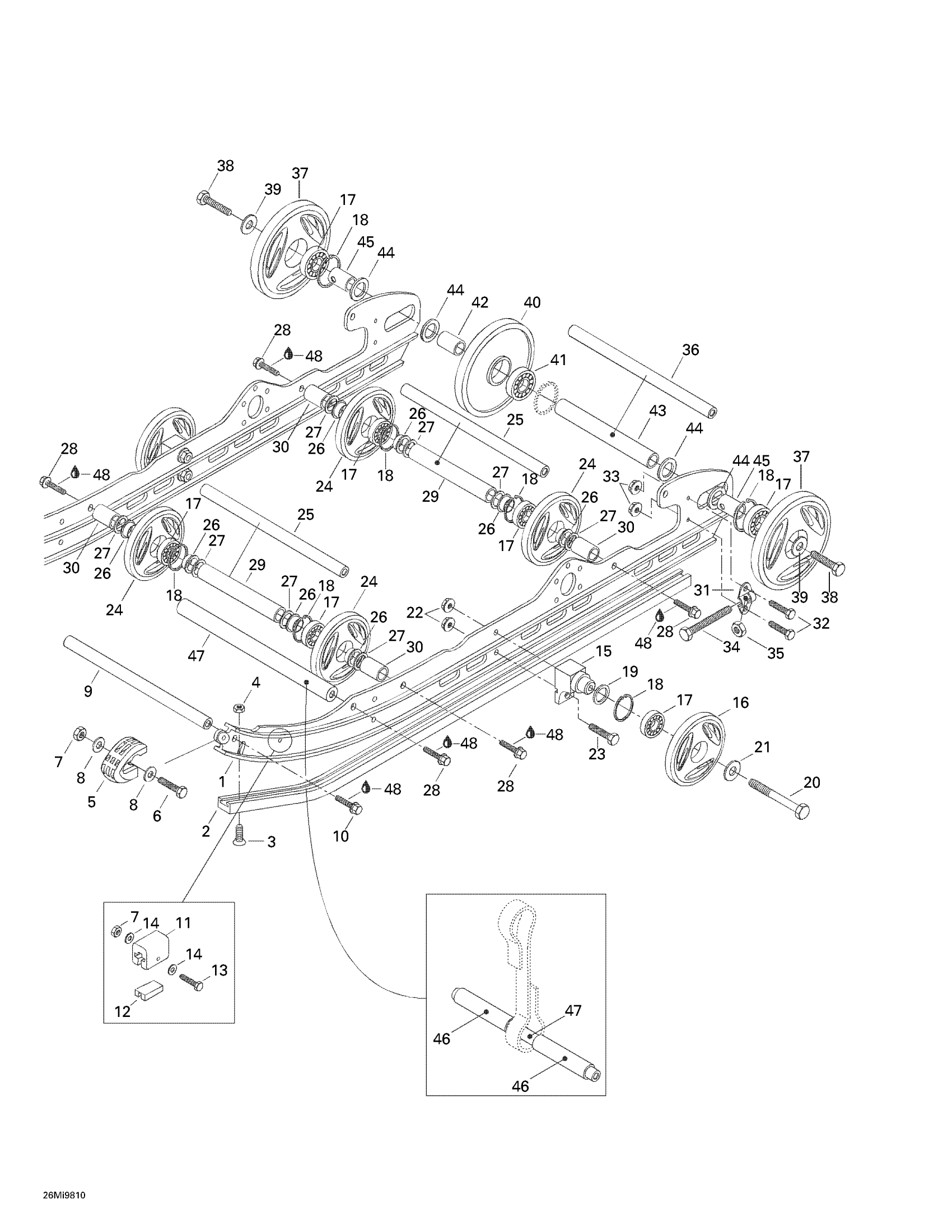

Ski-Doo Formula Z 670, 1998 Rear Suspension Diagram

#

Description
Price

1

Runner | Formula Deluxe 670.

503179000

Unavailable

2

Shoe Runner

560316000

Unavailable

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Elastic Stop Nut M5

232551414

$0.87

8

Washer | DS 650 X

391301600

$0.48

9

Axle

503151600

$18.49

10

Hex. Flange Screw M8 X 25

207682534

$2.11

11

Rubber Stopper

570063000

Unavailable

12

Reinforcement Stopper

572084800

$12.99

13

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

SUPPORT - Call your local BRP dealership

503190389

Unavailable

16

Wheel 135 (Yellow) | Formula Z 583. Formula 583 Deluxe.

570066632

Unavailable

17

Ball Bearing

293350115

$12.11

18

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

19

WASHER - Call your local BRP dealership

503173700

Unavailable

20

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

21

Washer

503183100

$3.17

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Hex. Screw M8 X 25

207182544

$0.90

24

Wheel 135 | Includes 18 to 19

503190797

$33.99

25

WHEEL AXLE - Call your local BRP dealership

503188700

Unavailable

26

Cushion

503189534

$4.76

27

WASHER - Call your local BRP dealership

503154000

Unavailable

28

Hex. Flange Screw M10 X 30

207603044

$2.11

29

Spacer

503153100

Unavailable

30

SPACER - Call your local BRP dealership

503188800

Unavailable

31

Tensioner

503155300

Unavailable

32

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

35

Elastic Locking Nut M10 X 1.5

233601416

$1.69

36

Rear Axle

503167900

$139.99

37

Wheel 180 Ass'y, Yellow | Includes 35 to 36

503190800

$51.99

38

Hex. Screw With Nylon

250000019

$1.69

39

Washer

503183300

$5.82

40

Wheel 180

503190799

$51.99

41

Ball Bearing

293350115

$12.11

42

Inner Spacer

503182900

$12.58

43

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

44

Washer

503180400

$3.49

45

Outer Spacer

503189809

$18.89

46

Spacer | Formula Deluxe 670.

572102300

Unavailable

47

Axle | Formula Deluxe 670.

503181100

Unavailable

48

Loctite 271, 10 ml

293800005

$26.99
