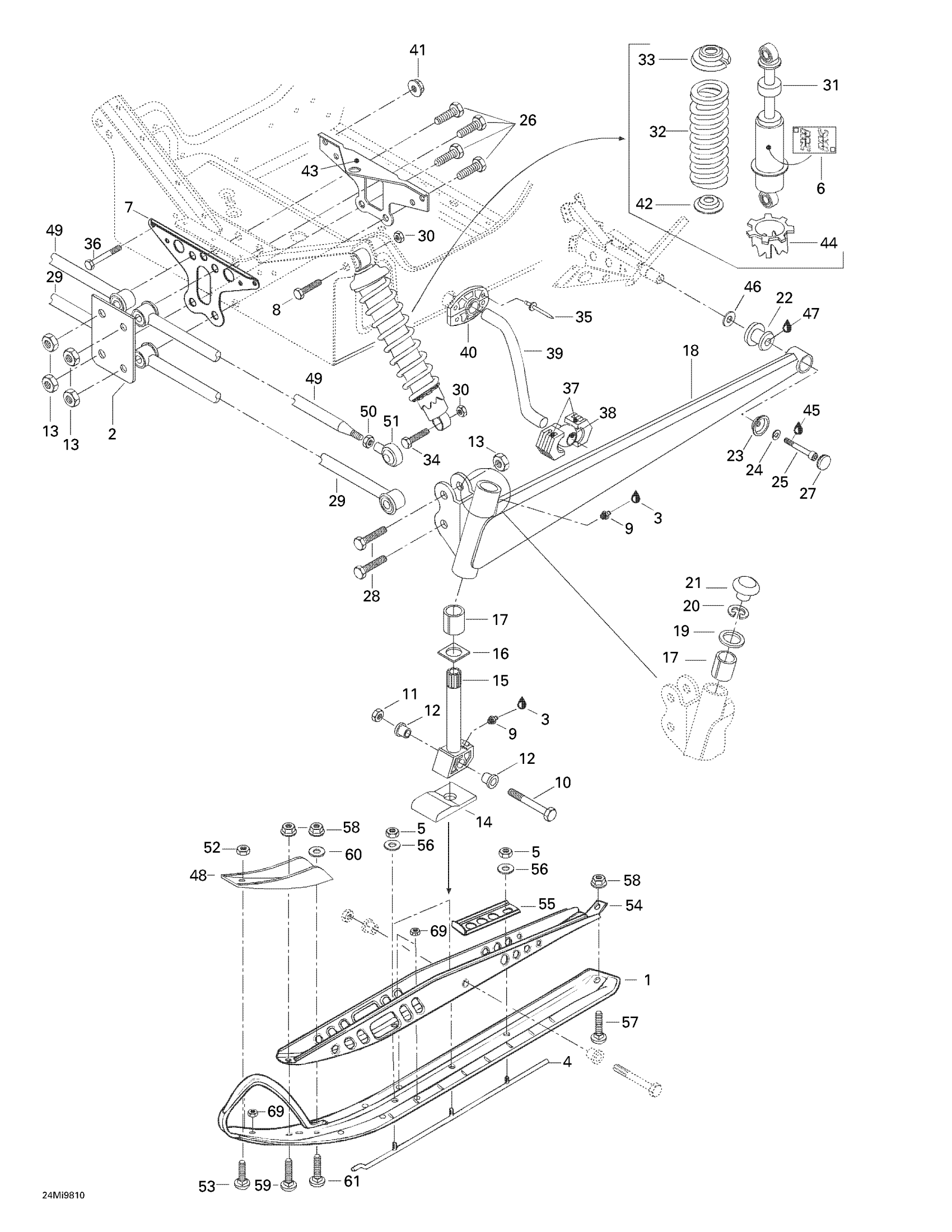

Ski-Doo Formula Z 670, 1998 07- Front Suspension And Ski Diagram

#

Description
Price

1

Plastic Ski (Black) (Europe) | Formula III 600.

572109200

Unavailable

2

Support

518306700

Unavailable

3

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

4

Runner Carbide (5) | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505067320

Unavailable

5

Elastic Locking Nut M10 X 1.5

233601416

$1.69

6

Shock Decal

418001500

Unavailable

7

Front Link Plate

517254800

Unavailable

8

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

9

Grease Fitting

408200700

$3.49

10

Hex. Screw M12

732601176

Unavailable

11

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

12

CUSHION - Call your local BRP dealership

414530600

Unavailable

13

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

14

Ski Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

570046800

Unavailable

15

Ski Leg | Includes 15 - 16.

506144500

Unavailable

16

Wear Plate

506081200

Unavailable

17

Cushion

572069900

Unavailable

18

LH Swing Arm | Formula Z 583. Formula 583 Deluxe.

506135010

Unavailable

RH Swing Arm | Formula Z 583. Formula 583 Deluxe.

506134910

Unavailable

19

Thrust Washer

506080900

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

Cap

572091300

$12.99

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

Cup | Package Hunter

705007171

$7.89

24

Lock Washer 8 mm

234181401

$0.92

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Hex. Screw M12 x 100

732601113

Unavailable

27

CAP - Call your local BRP dealership

572045900

Unavailable

28

Hex. Screw M12 x 50

222025075

Unavailable

29

Arm Ass'y (42")

580649700

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.69

31

Front Shock

415111000

Unavailable

32

Spring (Yellow)

415075900

Unavailable

33

Spring Stopper

706200881

$12.99

34

Hex. Screw M10 X 55

207005544

$2.22

35

Pop Rivet 3/16"

390402300

$0.75

36

Hex. Screw M6 X 55

207065544

$2.11

37

Block Sliding

572069800

Unavailable

38

Ball Joint

503142200

Unavailable

39

Stabilisator

506131800

Unavailable

40

Half-Bushing

572029900

Unavailable

41

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

42

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

43

Rear Link Plate

517254900

Unavailable

44

Cam

503169000

Unavailable

45

Loctite 243, 10 ml

293800060

$21.49

46

WASHER - Call your local BRP dealership

503146700

Unavailable

47

Grease, Super Lube

293550030

$28.99

48

Ski Reinforcement | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

506143800

Unavailable

49

Arm Ass'y | Formula Z 583.

580649800

Unavailable

50

Hex. Jam Nut M14

232170411

$1.48

51

RH Ball Joint | Formula Z 583. Formula Z 670.

415042500

Unavailable

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

53

Carriage Bolt M6 X 25

207762544

$1.69

54

Ski Support | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505068100

Unavailable

55

Stopper | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

505067509

Unavailable

56

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

57

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

58

Hex. Flange Elastic Nut M8

233281414

$1.47

59

Carriage Bolt M8 X 30

207783044

$2.11

60

Not Available As Spare Part - Friction Washer

Unavailable

61

Carriage Bolt M8 x 40 | Formula 500 Deluxe. Formula Z 583. Formula 583 Deluxe.

222284065

Unavailable
