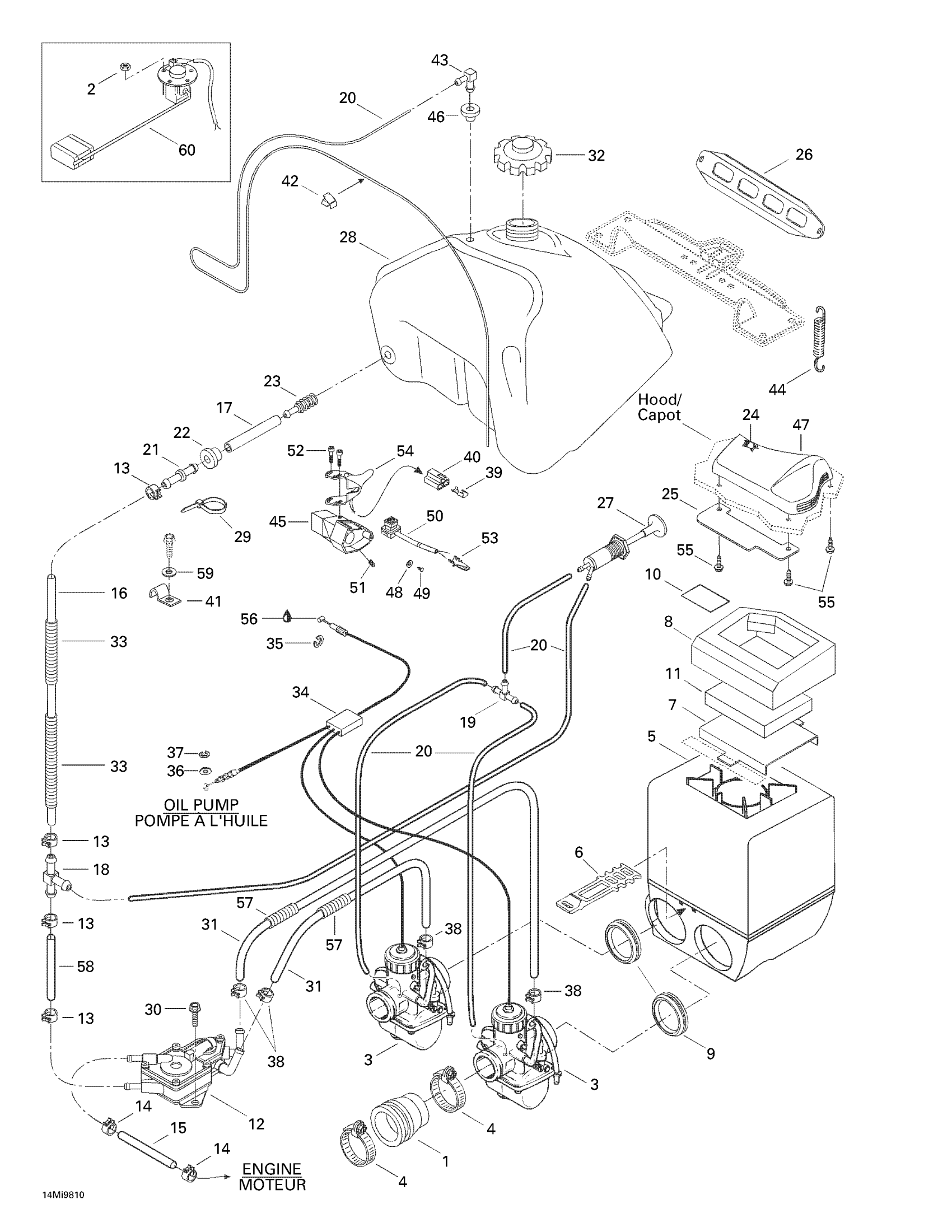

Ski-Doo Formula Z 670, 1998 Fuel System Diagram

#

Description
Price

1

Adaptor Caburetor | Formula Deluxe 670.

570048400

Unavailable

2

Elastic Stop Nut M5

232551414

$0.72

3

Carburetor VM 40-101 (PTO) | Includes 1 - 33.

403136700

Unavailable

Carburetor VM 40-102 (MAG)

403136800

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Air Silencer Ass'y | Includes 5 - 11.

580667106

Unavailable

6

LATCH - Call your local BRP dealership

570069700

Unavailable

7

Grill Intake

517283900

Unavailable

8

Exterior Foam

415105900

Unavailable

9

Intake Adaptor VM 40 | Formula Deluxe 670.

570049000

Unavailable

10

Warning Decal

414161500

Unavailable

11

Air Filter

415014800

$11.15

12

Fuel Pump Ass'y | Formula Z 583. Formula 583 Deluxe.

403801200

Unavailable

13

Spring Clamp

414655700

$0.66

14

Spring Clamp

414415200

$0.81

15

Hose

219704549

$46.24

16

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

17

Hose

415005700

$5.47

18

T-Fitting

415119300

$3.01

19

T-Fitting

414222400

$1.33

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

21

Male Connector

414872700

$1.81

22

Grommet | Europe

707800347

$7.58

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

24

Air Filter

414972600

$56.69

25

Deflector

517298800

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$32.06

28

Fuel Tank

572109000

Unavailable

29

Tie Wrap 368 mm

293750008

$0.85

30

Hex. Screw M6 x 12

732601120

Unavailable

31

Tube

415117800

Unavailable

32

Fuel Tank Cap

513033025

$19.47

33

Tubing 16 Mm 1000Mm Long

219704408

$6.23

34

Throttle Cable and Housing (40 mm) | Formula Deluxe 670.

414966201

Unavailable

35

Circlip

414274500

$0.74

36

Flat Washer 8 mm, Nylon

234081100

$1.00

37

Circlip

414753500

$0.59

38

Spring Clamp

414420700

$0.66

39

Female Terminal PACKARD

561503200

Unavailable

40

Female Terminal Housing (3 circuits)

409008500

Unavailable

41

CLIP - Call your local BRP dealership

415018200

Unavailable

42

Clip

414227300

$1.40

43

Male Connector

414814100

$2.12

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

46

Grommet

709200285

$7.09

47

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

48

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

49

Screw

414473200

Unavailable

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

51

Socket Set Screw M8 X 10

414440800

$3.88

52

Flange Screw

732601143

$3.90

53

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

54

Heat Throttle Handle Ass'y (40 mm) | Formula Deluxe 670.

572057000

Unavailable

55

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

56

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

57

Tubing 10 MM 1000MM Long

219704407

$2.20

58

Formed Tube | Formula Deluxe 583. Formula Deluxe 670.

415111400

Unavailable

59

Flat Washer

224061121

$0.44

60

Fuel Sender Ass'y

415114700

Unavailable
