Description

Price

1

Crankshaft Ass'y | Includes 1 - 15.

420887980

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

3

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

4

Dowel Pin

420929972

Unavailable

5

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

6

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

7

Lock Washer, 22 mm

420945759

$1.90

8

Hex. Nut, M22 X 1.5

420842239

$17.53

9

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

10

Ball Bearing

420832573

$44.49

11

Dowel Pin

420929972

Unavailable

12

Retaining Disk

420927710

$7.41

13

Oil Seal This part replaces 290831952.

420831952

$18.01

14

Woodruff Key

420246015

$3.17

15

Distance Sleeve | Formula Deluxe 500 LC. Formula Deluxe 670.

420847684

Unavailable

16

Piston Ass'y (2 rings 77.90 mm) | Formula Deluxe 670.

420887610

Unavailable

Oversize Pist. Ass'y (2 rings 78.15 mm) | Formula Deluxe 670.

420887611

Unavailable

17

Rectangular Ring 78.0 mm | Formula Deluxe 670.

420815025

Unavailable

Oversize Rectangular Ring 78.25 mm | Formula Deluxe 670.

420815021

Unavailable

18

SEMI-TRAPEZ RING 78.00 MM - Call your local BRP dealership | Formula Deluxe 670.

420815090

Unavailable

Oversize Semi-trapez Ring 78.25 mm | Formula Deluxe 670.

420815091

Unavailable

19

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

20

CIRCLIP - Call your local BRP dealership

420845100

Unavailable

21

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

22

Dowel Pin

420929972

Unavailable

23

Oil Seal

420831990

$20.49

24

Central Gear 14 Teeth

420935748

Unavailable

25

Half Crankshaft (P.T.O.)

420818702

Unavailable

26

Crankshaft Rod Repair Kit (P.T.O.)

420887039

Unavailable

Crankshaft Rod Repair Kit (MAG)

420887038

Unavailable

27

Loctite 243, 10 ml

293800060

$21.49

28

Needle Bearing

420832445

$27.49

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

Sealant Loctite 648

219703000

$45.99

31

Dow Corning 111, 150 g

413707000

$59.99

32

Half Crankshaft (MAG)

420818732

Unavailable

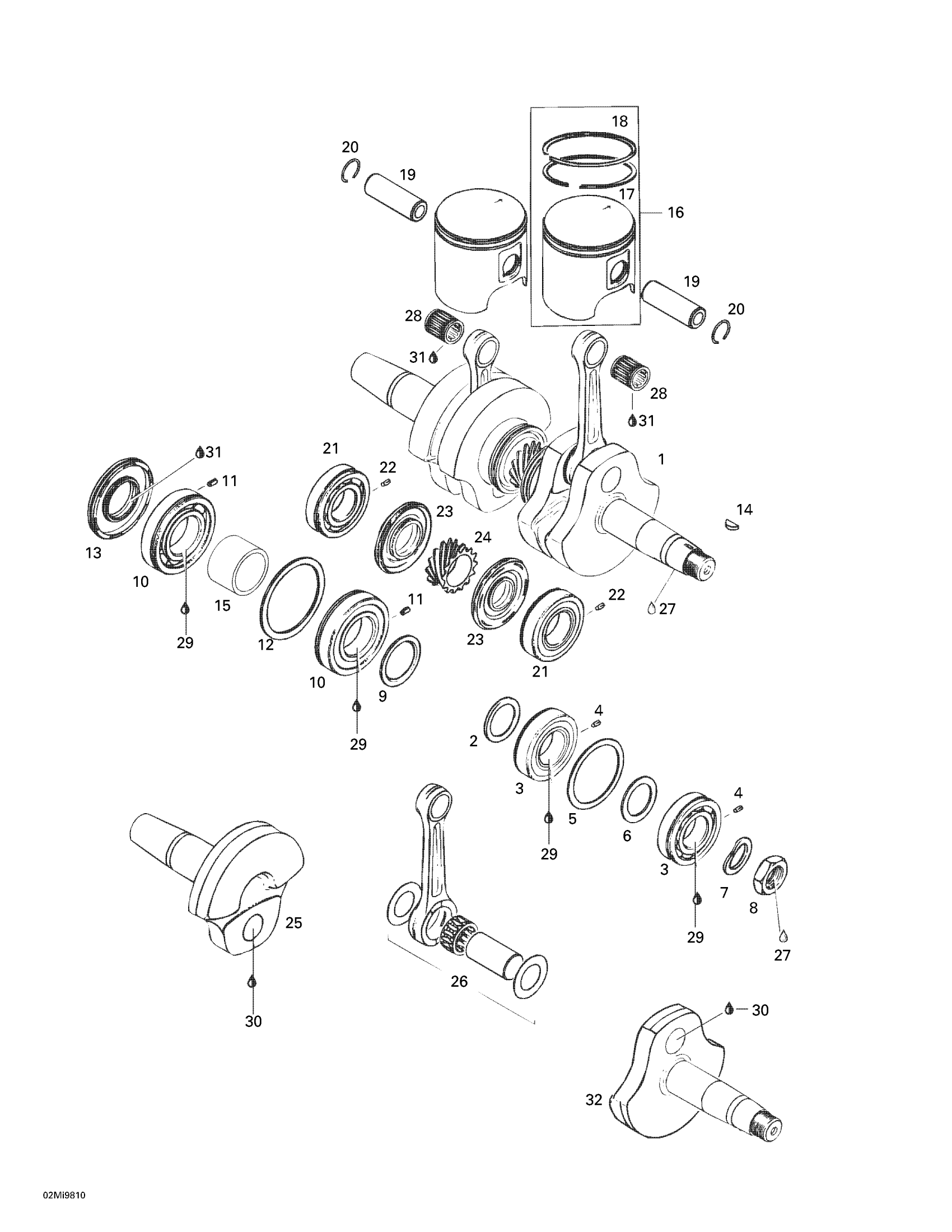

Ski-Doo Formula Z 670, 1998 01- Crankshaft And Pistons Diagram

Crankshaft Ass'y | Includes 1 - 15.

DISTANCE RING - Call your local BRP dealership

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

Dowel Pin

ADJUSTMENT WASHER - Call your local BRP dealership

RETAINING DISK - Call your local BRP dealership

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

DISTANCE RING - Call your local BRP dealership

Ball Bearing

Dowel Pin

Retaining Disk

Oil Seal This part replaces 290831952.

Woodruff Key

Distance Sleeve | Formula Deluxe 500 LC. Formula Deluxe 670.

Piston Ass'y (2 rings 77.90 mm) | Formula Deluxe 670.

Oversize Pist. Ass'y (2 rings 78.15 mm) | Formula Deluxe 670.

Rectangular Ring 78.0 mm | Formula Deluxe 670.

Oversize Rectangular Ring 78.25 mm | Formula Deluxe 670.

SEMI-TRAPEZ RING 78.00 MM - Call your local BRP dealership | Formula Deluxe 670.

Oversize Semi-trapez Ring 78.25 mm | Formula Deluxe 670.

GUDGEON PIN - Call your local BRP dealership

CIRCLIP - Call your local BRP dealership

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

Dowel Pin

Oil Seal

Central Gear 14 Teeth

Half Crankshaft (P.T.O.)

Crankshaft Rod Repair Kit (P.T.O.)

Crankshaft Rod Repair Kit (MAG)

Loctite 243, 10 ml

Needle Bearing

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Sealant Loctite 648

Dow Corning 111, 150 g

Half Crankshaft (MAG)
