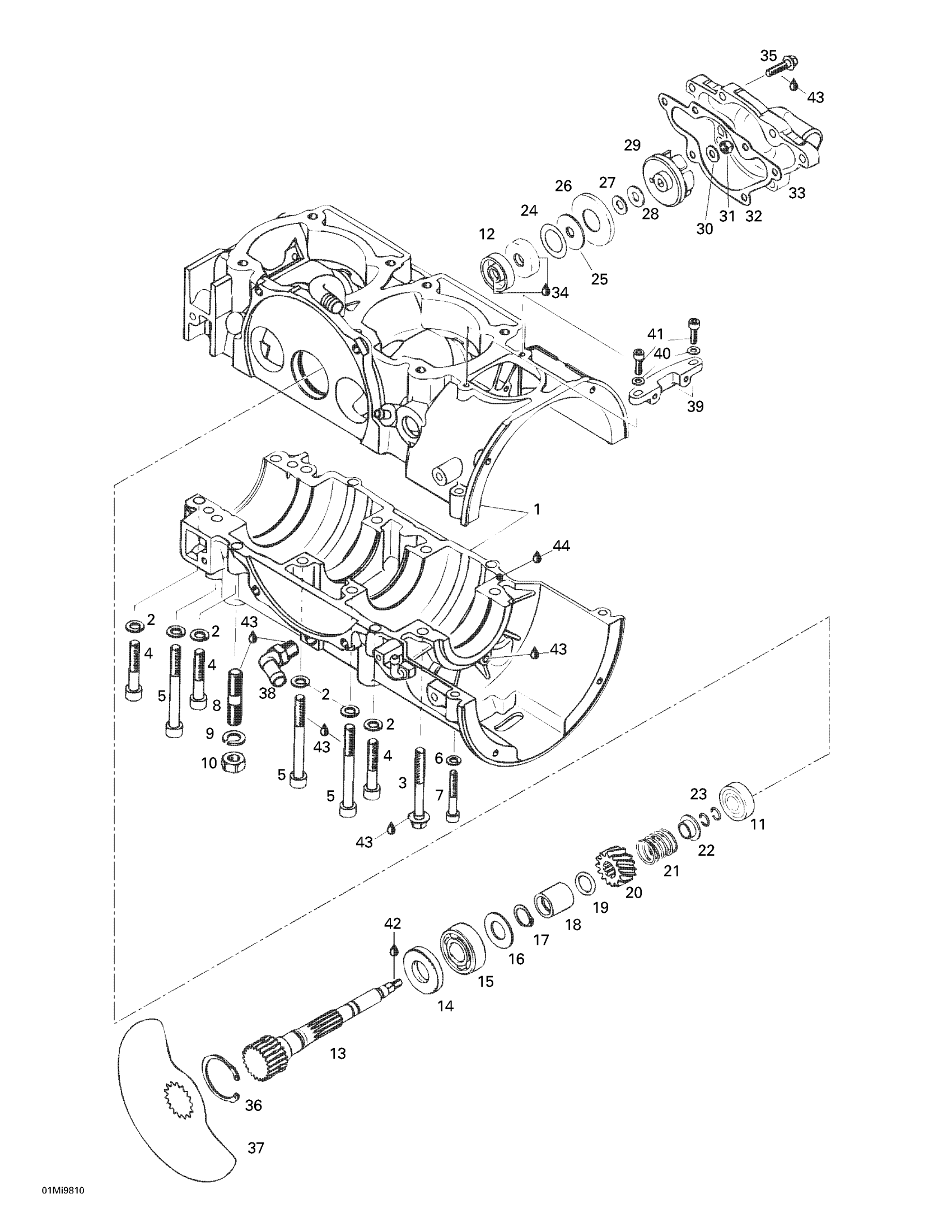

Ski-Doo Formula Z 670, 1998 01- Crankcase, Rotary Valve, Water Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 7.

420888015

Unavailable

2

Washer-Lock Din.128

420945832

$1.15

3

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

4

Socket Head Screw M8 X 45

420841561

Unavailable

5

ALLEN SCREW M8 X 75 - Call your local BRP dealership

420841831

Unavailable

6

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

7

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

$1.59

8

Stud M10 X 29/20

420940190

Unavailable

9

Lock Washer | Touring E. Touring E LT (2). Touring LE.

420945753

Unavailable

10

Hex. Nut M10 X 1.5

232006414

$1.37

11

Ball Bearing

420932797

$19.99

12

Oil Seal This part replaces 420850710.

420850711

$19.99

13

Rotary Valve Shaft | Formula Deluxe 583.

420837242

Unavailable

14

OIL SEAL - Call your local BRP dealership

420930580

Unavailable

15

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

16

SHIM - Call your local BRP dealership

420227439

Unavailable

17

SNAP RING - Call your local BRP dealership

420845450

Unavailable

18

SPACER BUSHING - Call your local BRP dealership

420847282

Unavailable

19

O-Ring

293300024

$8.57

20

Sprocket 14Th This part replaces 420935735.

420935736

$88.99

21

SPRING - Call your local BRP dealership

420938810

Unavailable

22

SPRING SEAT - Call your local BRP dealership

420827430

Unavailable

23

CIRCLIP - Call your local BRP dealership

420845160

Unavailable

24

SHIM - Call your local BRP dealership | Formula Deluxe 583.

420944462

Unavailable

25

Rubber Washer | Formula Deluxe 583.

420850890

$4.44

26

Supporting Plate | Formula Deluxe 583.

420827970

$14.28

27

Thrust Washer

420227945

$4.01

28

Washer

420227155

Unavailable

29

WATER IMPELLER - Call your local BRP dealership

420922036

Unavailable

30

Flat Washer

224061121

$0.53

31

Locking Nut M6

420842042

Unavailable

32

Gasket

420931355

Unavailable

33

Water Pump Housing

420922551

Unavailable

34

Dow Corning 111, 150 g

413707000

$59.99

35

Hex. Screw M6 X 25

420240034

$1.90

36

Lock Ring

420945880

$4.44

37

ROTARY VALVE (164 DEG.) - Call your local BRP dealership | Formula Deluxe 670.

420924500

Unavailable

38

Angular Tube

420922242

$14.83

39

Fixation

420851280

Unavailable

40

WASHER - Call your local BRP dealership

420827800

Unavailable

41

Socket Head Screw M5 X 20

420441341

$4.02

42

Sealant Loctite 648

219703000

$45.99

43

Loctite 243, 10 ml

293800060

$21.49

44

Sealant, 100 gr

413707100

Unavailable
