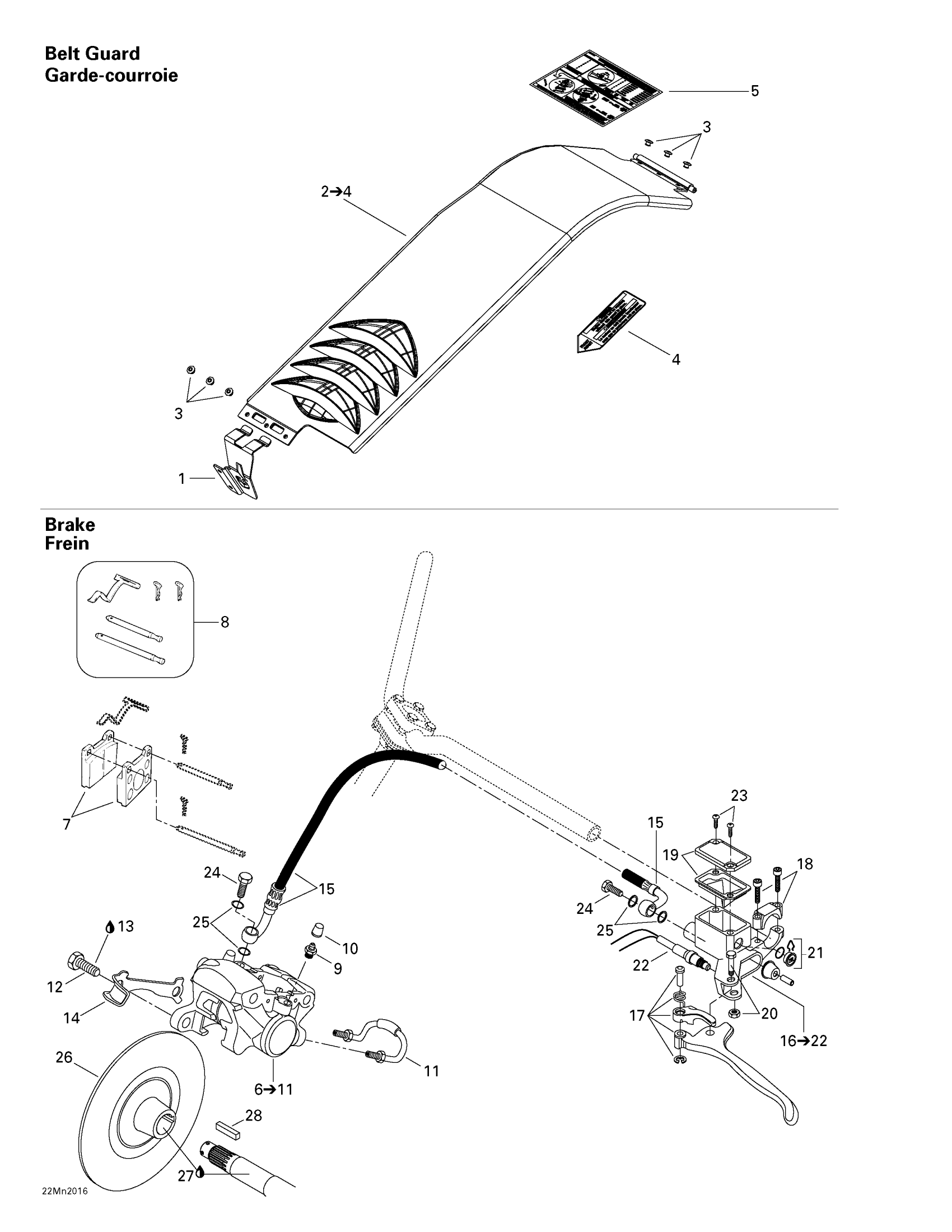

Ski-Doo Formula Z 600/700, 2000 06- Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Bracket

417300001

Unavailable

2

Belt Guard Ass'y | Includes 2 - 4.

417300002

Unavailable

3

Pop Rivet 3/16"

390402200

$0.35

4

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

5

Calibration Label (RENEGADE) | MX Z 600. MX Z 700. MX Z 800.

516000709

Unavailable

6

Caliper | Includes 10 - 15.

414920000

Unavailable

7

Brake Pad Kit

415084600

$79.49

8

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

9

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

10

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

11

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

12

Hex. Screw M10 X 35

207103544

$1.58

13

Loctite 243, 10 ml

293800060

$21.49

14

Locking Tab

507029900

Unavailable

15

HOSE - Call your local BRP dealership

507032237

Unavailable

16

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$369.99

17

LEVER - Call your local BRP dealership

507032428

Unavailable

18

Clamp And Screw Kit

507032477

$23.99

19

Cap

415029900

$41.49

20

Pin Ass'y

415030000

$19.99

21

WINDOW - Call your local BRP dealership

414990600

Unavailable

22

Microswitch

507032366

$98.99

23

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

24

Banjo Bolt

414920500

$8.68

25

Washer

414920600

$1.90

26

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

27

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

28

KEY - Call your local BRP dealership

507021300

Unavailable
