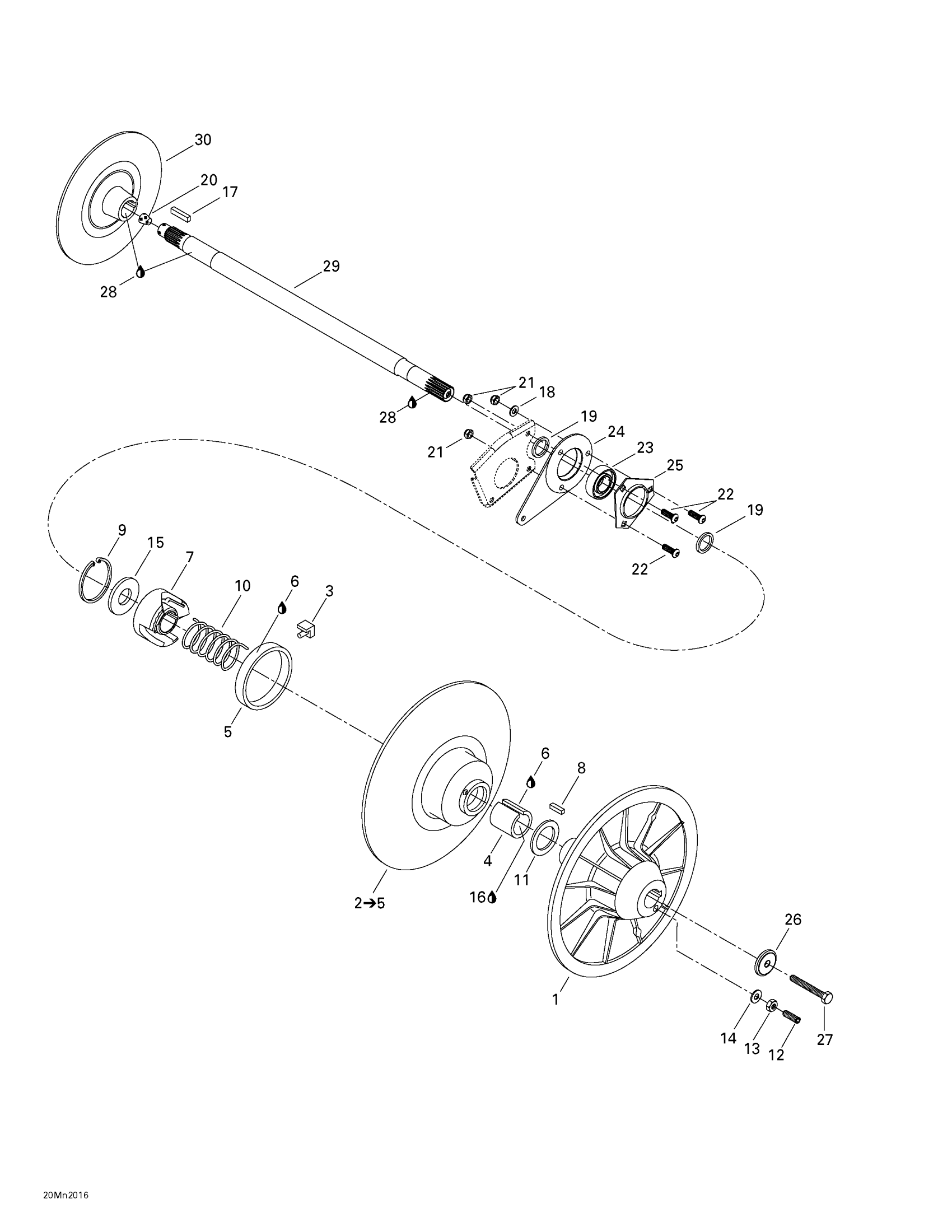

Ski-Doo Formula Z 600/700, 2000 05- Driven Pulley Diagram
#
Description
Price
1
Fixed Flange
417010200
Unavailable
2
Sliding Pulley | Includes 24 - 27.
504143400
Unavailable
3
CAM SLIDER SHOE - Call your local BRP dealership
414918000
Unavailable
4
BUSHING - Call your local BRP dealership
415011200
Unavailable
5
GARLOCK BUSHING - Call your local BRP dealership
414876600
Unavailable
7
Cam 50 Deg | Formula Deluxe 600. Formula Deluxe 700.
417126343
Unavailable
Cam 47° | STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700.
417126337
Unavailable
8
Key
414820800
Unavailable
9
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
10
RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige
414558900
Unavailable
11
Thrust Washer
504141900
Unavailable
12
Socket Set Screw M6 X 30
206263044
Unavailable
14
WASHER - Call your local BRP dealership
420245370
Unavailable
15
Washer
504141800
Unavailable
16
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
17
KEY - Call your local BRP dealership
507021300
Unavailable
20
CORK - Call your local BRP dealership
414784800
Unavailable
22
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership
205482546
Unavailable
23
BALL BEARING - Call your local BRP dealership
405408200
Unavailable
25
FLANGE - Call your local BRP dealership
501025000
Unavailable
27
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
28
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
29
COUNTER SHAFT - Call your local BRP dealership
501026300
Unavailable
30
BRAKE DISK - Call your local BRP dealership
507031300
Unavailable
