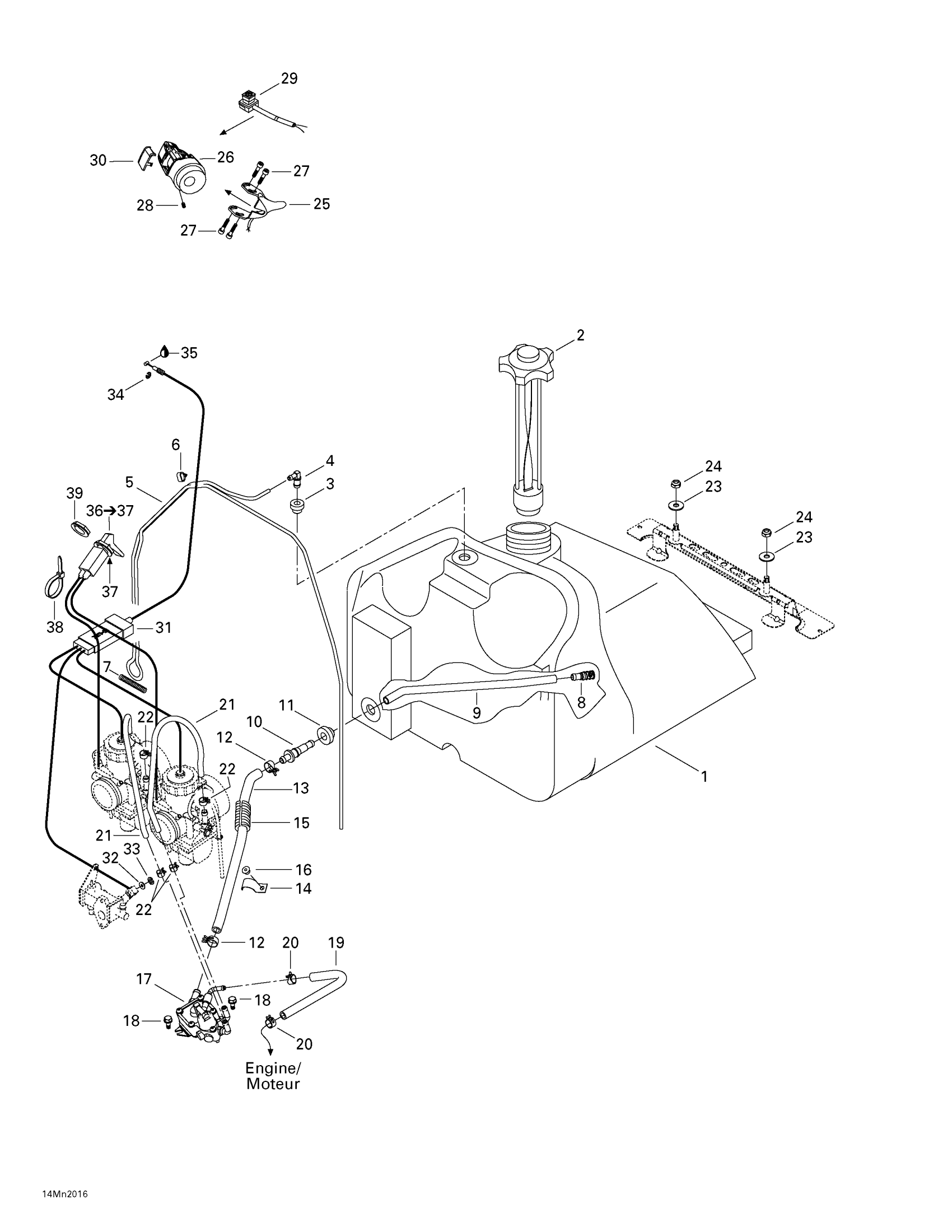

Ski-Doo Formula Z 600/700, 2000 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank

513032987

Unavailable

2

Fuel Tank Cap | Sport / Sport GT

513033020

$37.99

3

Grommet

513032908

$10.49

4

Male Connector

414814100

$2.22

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

7

SPRING - Call your local BRP dealership

414818200

Unavailable

8

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

9

Hose

415005700

$11.58

10

Male Connector

414872700

$1.90

11

Grommet | Europe

707800347

$10.49

12

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

13

Formed Hose

513032903

$30.99

14

CLIP - Call your local BRP dealership

415018200

Unavailable

15

Tubing 16 Mm 1000Mm Long

219704408

$7.49

16

Pop Rivet 3/16"

390406500

$0.88

17

Fuel Pump | MX-Z 500.

403901800

Unavailable

18

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

19

Hose

219704549

$50.99

20

Spring Clamp

414415200

$0.88

21

Tube

415117800

Unavailable

22

Spring Clamp

414420700

$0.72

23

Flat Washer 8 mm

234082410

$1.47

24

Hex. Elastic Stop Nut M8

232581414

$0.56

25

Handle Ass'y 40 mm

512059204

Unavailable

26

THROTTLE HOUSING - Call your local BRP dealership

512059243

Unavailable

27

Flange Screw

732601143

$4.12

28

Socket Set Screw M8 X 10

414440800

$4.12

29

Kill Switch

515175410

Unavailable

30

Switch Cover

572100901

$14.83

31

THROTTLE CABLE - Call your local BRP dealership

512059188

Unavailable

32

Flat Washer 8 mm, Nylon

234081100

$1.39

33

Circlip

414753500

$0.71

34

Circlip

414274500

$0.90

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

Choke Cable | Includes 12 - 13. Formula Deluxe 500.

512059203

Unavailable

37

Lock Washer, Interior Teeth

394103300

Unavailable

38

Tie Wrap 94 mm | 4X4

293750001

$1.03

39

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable
