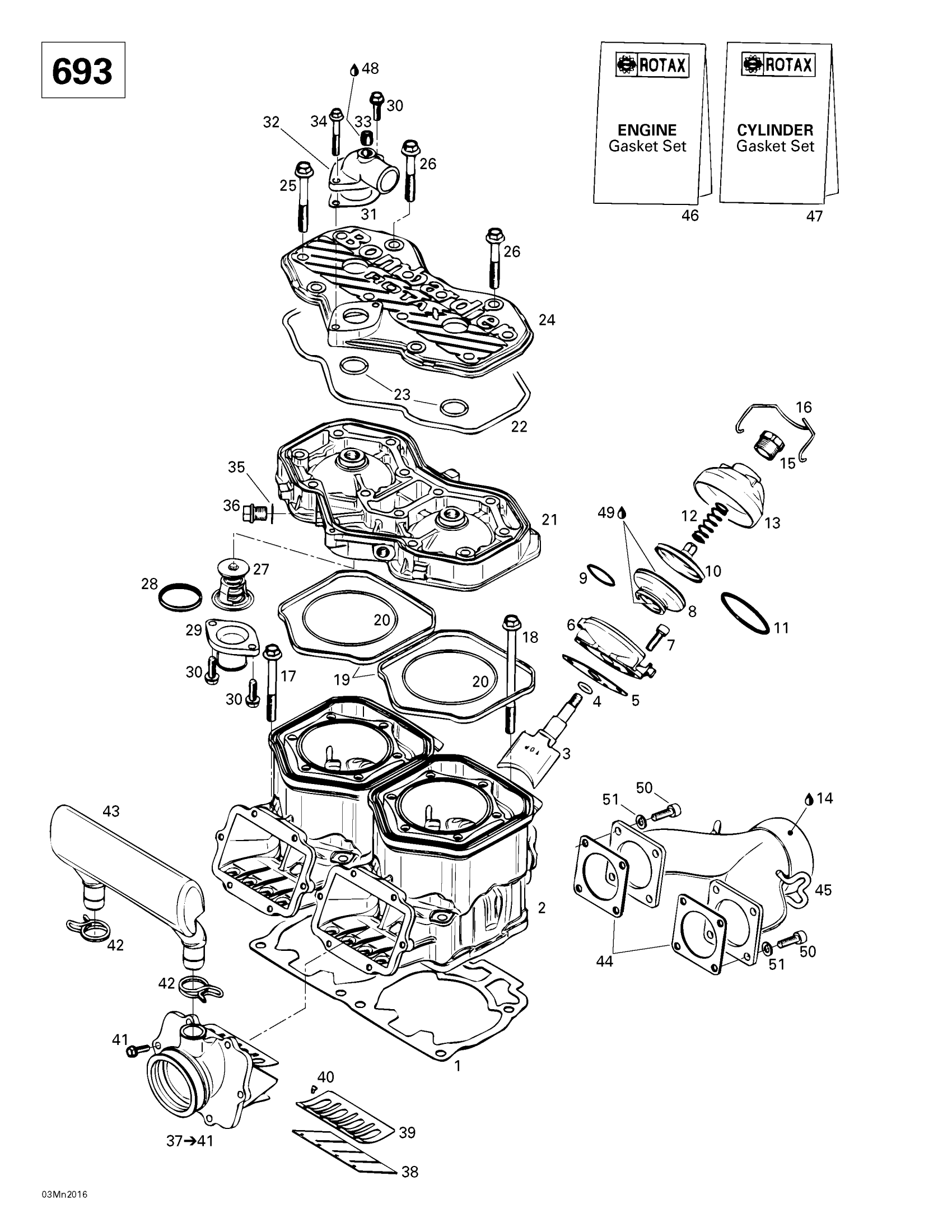

Ski-Doo Formula Z 600/700, 2000 Cylinder, Exhaust Manifold, Reed Valve 2 Diagram

#

Description
Price

1

DOUBLE GASKET 0.6 MM - Call your local BRP dealership | Formula Z 700.

420931832

Unavailable

Double Gasket 0.4 mm | Formula Z 700.

420931831

Unavailable

DOUBLE GASKET 0.3 MM - Call your local BRP dealership | Formula Z 700.

420931830

Unavailable

2

Nicasil Cylinder | Formula Z 700.

420923691

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership | Formula Deluxe 700.

420854330

Unavailable

4

O-Ring

420430110

$4.15

5

Gasket

420250239

$6.42

6

Valve Housing | Grand Touring 600.

420854265

Unavailable

7

Socket Head Screw M6 X 20

205062044

$1.22

8

Exhaust Bellows

420260723

$40.27

9

Hose Spring This part replaces 420838253.

420838255

$7.01

10

Exhaust Valve This part replaces 290253257.

420854449

$34.30

11

Hose Spring This part replaces 420239048.

420939281

$6.88

12

Spring This part replaces 420239944.

420239954

$7.09

13

Valve Cover

420911552

$36.54

14

Sealant, Loctite, 80 ml | DS 650

293800090

$23.85

15

Adjuster Screw

420241221

$12.15

16

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

17

Hex. Collar Screw M8 x 75 | Formula Z 700.

420841316

Unavailable

18

HEX. SCREW M8 X 119 - Call your local BRP dealership

420941651

Unavailable

19

Rubber Ring

420931590

$5.52

20

O-RING - Call your local BRP dealership

420931840

$11.75

21

Cylinder Head (Silver) | Formula Deluxe 700.

420923455

Unavailable

22

O-Ring This part replaces 290950320.

420950320

$13.18

23

O-Ring

420430782

$5.06

24

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

25

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.09

26

Hex. Screw M8 X 56.5

420941627

$8.09

27

Thermostat This part replaces 414834100.

420922519

$57.43

28

SEALING RING - Call your local BRP dealership

420931270

Unavailable

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

31

Gasket

420850338

$9.97

32

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

33

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

34

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

35

Aluminum Sealing Ring

420250016

$5.06

36

Plug screw

420841924

$13.18

37

INTAKE SOCKET ASS'Y - Call your local BRP dealership | Includes 37 - 41. Formula Z 700.

420867850

Unavailable

38

Reed Pedal

420924680

$36.54

39

Reed Pedal Stop | Formula Z 700.

420924690

Unavailable

40

Phillips Screw M3 X 5

420941215

$1.63

41

Taptite Screw M5 X 16

420941928

Unavailable

42

CLAMP - Call your local BRP dealership

420851440

Unavailable

43

Intake Resonator

420867815

Unavailable

44

Gasket

420850552

$7.69

45

Exhaust Manifold | Formula Z 700.

420973590

Unavailable

46

Engine Gasket Set | Formula Z 700.

420888600

Unavailable

47

Cylinder Gasket Set | Formula Z 700.

420888605

Unavailable

48

Loctite 243, 10 ml

293800060

$21.49

49

Dow Corning 111, 150 g

413707000

$59.99

50

Socket Head Screw M6 X 25

205062544

$1.01

51

Lock Washer M6, Black

234161471

$0.51
