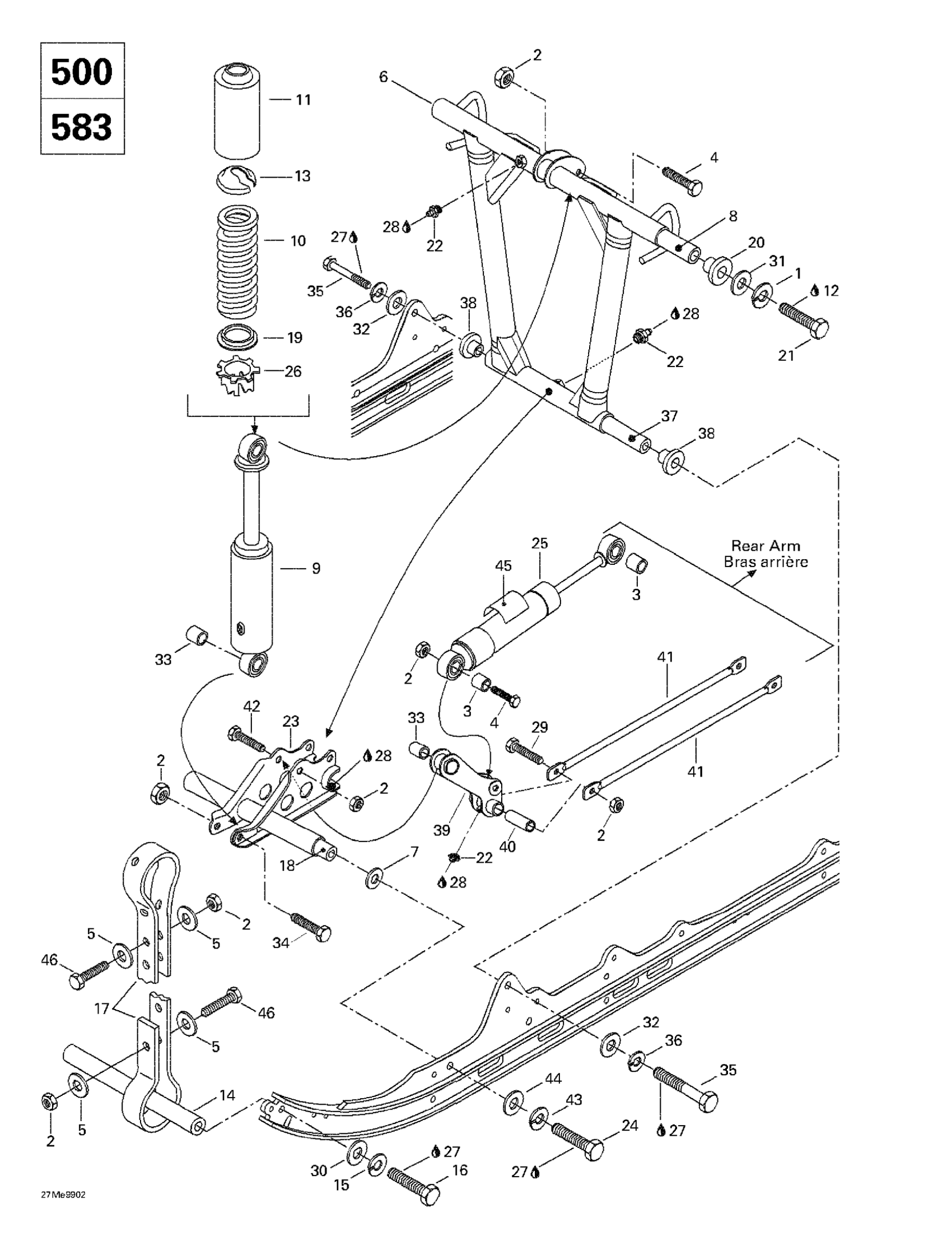

Ski-Doo Formula Z 500/583/670, 1999 08- Front Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

CUSHION - Call your local BRP dealership

414802600

Unavailable

4

Hex. Screw M8 X 40

207084044

$1.15

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm | Formula Deluxe 500 LC. Formula Deluxe 583.

503189217

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Shock Central

503189173

Unavailable

Shock | Formula Deluxe 583.

415094700

Unavailable

10

Shock Spring

415070400

Unavailable

11

Protector

503193663

$37.99

12

Loctite 243, 10 ml

293800060

$21.49

13

Spring Stopper

706200881

$12.99

14

Axle

503151600

$18.49

15

Lock Washer 8 mm

234181401

$0.92

16

Hex. Screw M8 X 30

207183044

$1.15

17

Stopper Strap | Formula Deluxe 500 LC.

503189181

Unavailable

Stopper Strap

570069300

Unavailable

18

Lower Axle

503174900

Unavailable

19

Spring Guide

572092600

Unavailable

20

Bushing

503189324

$14.15

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$3.49

23

Welded Shock Support | Formula Deluxe 500 LC.

503185000

Unavailable

Welded Shock Support

503188976

Unavailable

24

Hex. Screw M12 x 40

222024065

Unavailable

25

Rear Shock

503189172

Unavailable

Rear Shock | Formula Deluxe 583.

415094900

Unavailable

Rear Shock (Europe) | Formula Deluxe 500 LC.

503189257

Unavailable

26

Cam

503169000

Unavailable

27

Loctite 271, 10 ml

293800005

$26.99

28

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

29

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

30

Flat Washer 8 mm

234081410

$0.83

31

Flat Washer 10 mm

234001410

$1.26

32

Flat Washer 12 mm

234021410

$0.72

33

Cushion

414917900

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.68

35

Hex. Screw M12 x 60 | Formula Deluxe 500 LC. Formula Deluxe 583.

222026065

Unavailable

36

Lock Washer 12 mm

224721218

Unavailable

37

Shaft

503182000

Unavailable

38

Cushion

503188940

Unavailable

39

Lever

503158500

Unavailable

40

Tie Rod Shaft

503158600

Unavailable

41

Tie Rod

503187100

Unavailable

42

Hex. Screw M8 X 50

207085044

$1.48

43

Lock Washer 12 mm

224721218

Unavailable

44

Flat Washer 12 mm

234021410

$0.72

45

Shock Decal | Formula Deluxe 500.

516000181

Unavailable

HPG Decal (Europe)

516000182

Unavailable

46

Hex. Screw M8 X 25

207182544

$0.90
