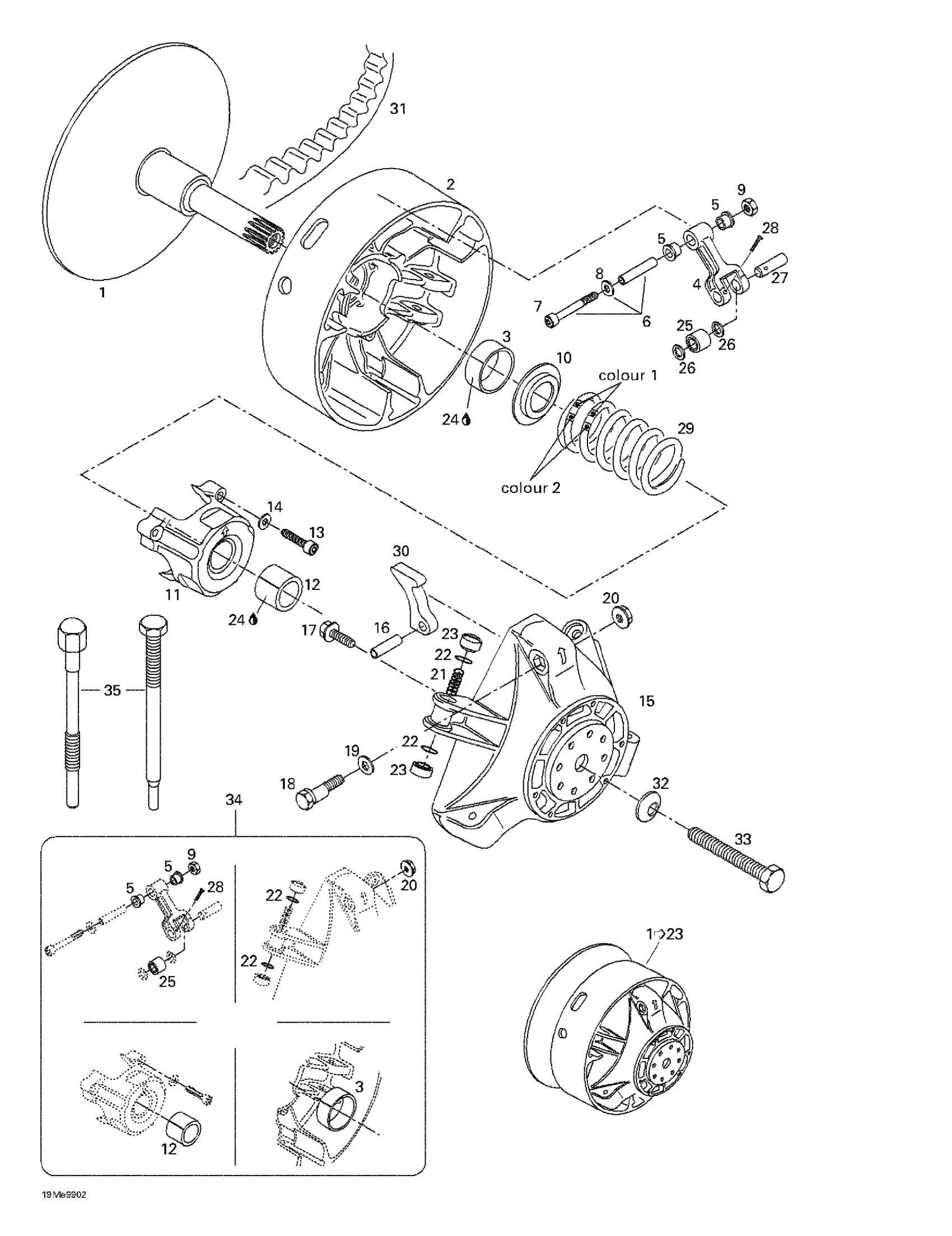

Ski-Doo Formula Z 500/583/670, 1999 05- Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 23. Formula Deluxe 500 LC. Formula Deluxe 670.

417222154

Unavailable

Drive Pulley Ass'y | Includes 1 - 23. Formula Deluxe 500.

417222120

Unavailable

1

Fixed Flange

417222411

$539.99

Fixe Flange | Formula DLX 500.

417222071

Unavailable

2

SLINDING FLANGE - Call your local BRP dealership | Includes 2 - 3. Formula Z 500.

417010000

Unavailable

SLINDING FLANGE - Call your local BRP dealership | Formula Z 583. Formula Z 670.

417003703

Unavailable

3

Bushing

417004201

$25.99

4

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

5

Bushing

417004305

$11.52

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

8

Flat Washer 6 mm

234061410

$1.36

9

Elastic Stop Nut M6

232561414

$0.55

10

Spring Seat

417222044

Unavailable

11

Spring Cover Ass'y | Includes 9 - 10.

417222157

Unavailable

12

Bushing

417004501

$24.99

13

Allen Screw M6 x 40

222964066

Unavailable

14

WASHER - Call your local BRP dealership

420245370

Unavailable

15

Gouvernor Cup Ass'y

417004700

Unavailable

16

Pin M8 X 24

732804009

Unavailable

17

Hex. Locking Screw M6 x 18 | Formula Deluxe 500.

732601249

Unavailable

18

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

19

Washer

417005600

$4.09

20

Hex. Flange Nut M6

233061414

$1.68

21

Spring

417005700

$4.76

22

O-Ring

732401030

$0.98

23

Slider Shoe This part replaces 420460045.

417223021

$5.90

24

Loctite 609, 10 ml

413703100

$26.99

25

Roller

417222947

$21.99

26

Stopper Washer

417004302

$15.90

27

Pin

417004308

$13.99

Pin

417004309

$25.99

28

Cotter Pin

250400060

$2.00

29

Spring, Violet/yellow This part replaces 415128608.

415015300

$43.49

Spring, Violet/blue

415034900

$43.49

30

Ramp 281 | Formula Deluxe 500. Formula Deluxe 600.

417005281

Unavailable

Ramp (286) | Formula DLX 500 LC.

417005286

Unavailable

31

Drive Belt

414860700

$104.99

Drive Belt | Formula Deluxe 700.

417300067

$134.99

32

Spring Washer 14 mm

250200006

$6.99

Conical Spring Washer M12

250200005

$3.27

33

Drive Pulley Bolt

417120000

$65.49

Bolt, Drive Pulley | Formula Deluxe 583.

417120100

Unavailable

34

Clutch Repair Kit

417006100

$189.99

35

Puller Inner Half

529007900

$56.99

Puller This part replaces 529022400.

529000064

$71.99

37

High Altitude Kit, (Not Shown) | Formula Deluxe 500 LC.

861767300

Unavailable

High Altitude Kit, (Not Shown) | Formula Deluxe 583.

861767200

Unavailable

Hight Altitude Kit, (Not Shown) | Formula Deluxe 670.

861767100

Unavailable
